6400FE Series

Catalog

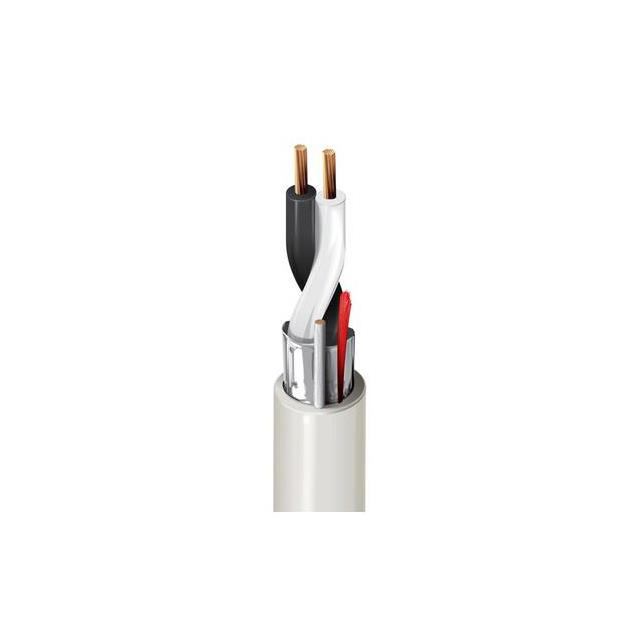

CABLE 2COND 20AWG NATURAL

Part	Shield Material	Shield Coverage	Jacket Color	Shield Type	Ratings	Jacket (Insulation) Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Number of Conductors	Voltage	Length	Length	Usage	Wire Gauge	Cable Type	Operating Temperature [Max]	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 6400FE 8771000	Aluminum	100 %	Natural	Foil	UL Style CMP	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Drain Wire Rip Cord	0.142 in	3.61 mm	Copper Bare	2	300 VDC	304.8 m	1000 ft	Security Sound	20 AWG	Multi-Conductor	75 ░C	0.381 mm	0.015 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	28 AWG	7
Belden Inc. 6400FE 009U250	Aluminum	100 %	White	Foil	UL Style CMP	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Drain Wire Rip Cord	0.142 in	3.61 mm	Copper Bare	2	300 VDC	76.2 m	250 ft	Security Sound	20 AWG	Multi-Conductor	75 ░C	0.381 mm	0.015 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	28 AWG	7
Belden Inc. 6400FE 877U1000	Aluminum	100 %	Natural	Foil	UL Style CMP	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Drain Wire Rip Cord	0.142 in	3.61 mm	Copper Bare	2	300 VDC	304.8 m	1000 ft	Security Sound	20 AWG	Multi-Conductor	75 ░C	0.381 mm	0.015 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	28 AWG	7
