78109 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

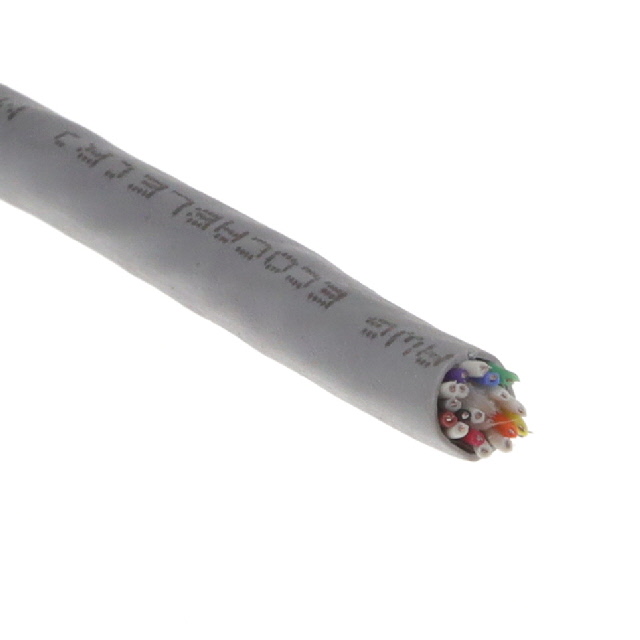

ECOGEN ECOCABLE MINI 28AWG 9PR 300V FOIL MPPE 78109 SL 199 BULK FT
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Coverage | Number of Conductors | Shield Material | Ratings | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Features | Cable Type | Jacket Color | Jacket (Insulation) Material | Shield Type | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 19 | 40 AWG | 5.51 mm | 0.217 in | 100 % | 18 | Aluminum | ISO 10993 UL Style 21460 | 300 V | -40 °C | 80 C | Copper Tinned | Biological Compatibility Drain Wire Rip Cord | Multi-Pair | Slate | Polyphenylene Ether Modified (mPPE) | Foil | Polyphenylene Ether Modified (mPPE) | 0.015 in | 0.381 mm | 28 AWG | 1 ft | 300 mm | ||
 ALPHA WIRE | 19 | 40 AWG | 5.51 mm | 0.217 in | 100 % | 18 | Aluminum | ISO 10993 UL Style 21460 | 300 V | -40 °C | 80 C | Copper Tinned | Biological Compatibility Drain Wire Rip Cord | Multi-Pair | Slate | Polyphenylene Ether Modified (mPPE) | Foil | Polyphenylene Ether Modified (mPPE) | 0.015 in | 0.381 mm | 28 AWG | 30.5 m | 100 ft |
