R30-620 Series

Catalog

SPACER, ALUMINIUM, ROUND, 3MM ROHS COMPLIANT: YES

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Length - Overall [custom]	Length - Overall [custom]	Between Board Height [z]	Between Board Height [z]	Material	Plating	Gender	Type	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Screw, Thread Size	Between Board Height	Between Board Height	Length - Overall [x]	Length - Overall [x]	Length - Overall

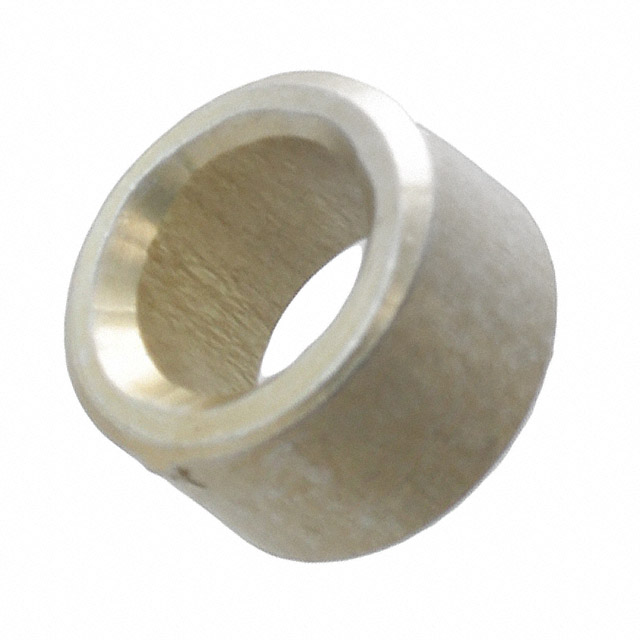

Harwin Inc. R30-6200314	0.197 in	5 mm	0.118 in	3 mm	0.118 in	3 mm	Aluminum	Passivated	Female Female	Round Spacer	0.126 in	3.2 mm	M3
Harwin Inc. R30-6200414	0.197 in	5 mm					Aluminum	Passivated	Female Female	Round Spacer	0.126 in	3.2 mm	M3	0.157 in	4 mm	0.157 in	4 mm
Harwin Inc. R30-6201814	0.197 in	5 mm			0.709 in	18 mm	Aluminum	Passivated	Female Female	Round Spacer	0.126 in	3.2 mm	M3			0.709 "	18 mm
Harwin Inc. R30-6200814	0.197 in	5 mm					Aluminum	Passivated	Female Female	Round Spacer	0.126 in	3.2 mm	M3	0.315 in	8 mm	0.315 in		8 mm
Harwin Inc. R30-6202014	0.197 in	5 mm					Aluminum	Passivated	Female Female	Round Spacer	0.126 in	3.2 mm	M3	0.787 "	20 mm	0.787 in	20 mm
Harwin Inc. R30-6201514	0.197 in	5 mm			0.591 in		Aluminum	Passivated	Female Female	Round Spacer	0.126 in	3.2 mm	M3		15 mm	0.591 in	15 mm
