AWH 60 Series

Catalog

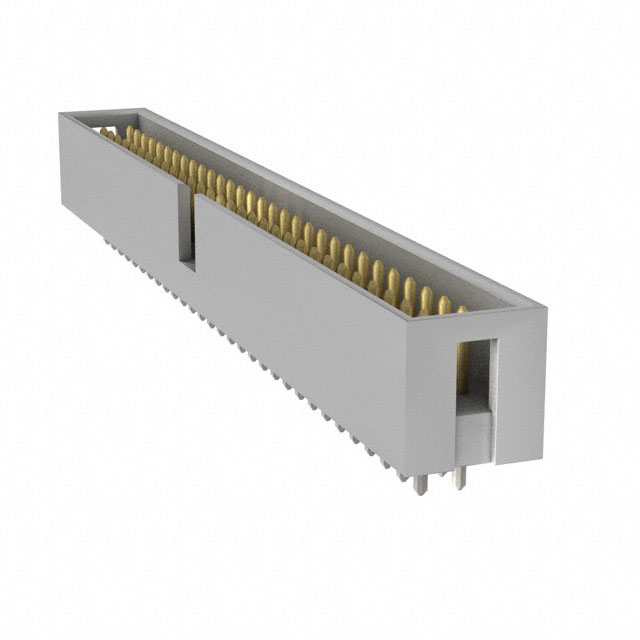

CONN HEADER VERT 60POS 2.54MM

Part	Termination	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Current Rating (Amps)	Fastening Type	Contact Finish Thickness - Mating	Contact Shape	Insulation Material	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Type	Style	Insulation Height	Insulation Height	Mounting Type	Number of Positions	Shrouding	Insulation Color	Number of Positions Loaded	Contact Finish - Mating	Features	Connector Type	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]
Assmann WSW Components AWH 60G-0202-T	Solder	0.1 "	2.54 mm	-40 C	105 ░C	Tin	0.1 in	2.54 mm	2	3 A	Push-Pull	Flash	Square	Polybutylene Terephthalate (PBT) Glass Filled	0.13 "	3.3 mm	UL94 V-0	Male Pin	Board to Cable/Wire	17 mm	0.669 in	Through Hole	60	Shrouded - 4 Wall	Gray	All	Gold	Keying Slot	Header	Brass
Assmann WSW Components AWH 60A-0202-T	Solder	0.1 "	2.54 mm	-40 C	105 ░C	Tin	0.1 in	2.54 mm	2	3 A	Push-Pull	Flash	Square	Polybutylene Terephthalate (PBT) Glass Filled			UL94 V-0	Male Pin	Board to Cable/Wire	8.3 mm		Right Angle Through Hole	60	Shrouded - 4 Wall	Gray	All	Gold	Keying Slot	Header	Brass	3.81 mm	0.15 in	0.327 "
Assmann WSW Components AWH 60A-0232-T	Solder	0.1 "	2.54 mm	-40 C	105 ░C	Tin	0.1 in	2.54 mm	2	3 A	Latch Lock/Eject Hooks Long	Flash	Square	Polybutylene Terephthalate (PBT) Glass Filled			UL94 V-0	Male Pin	Board to Cable/Wire	8.3 mm		Right Angle Through Hole	60	Shrouded - 4 Wall	Gray	All	Gold	Keying Slot	Header	Brass	3.81 mm	0.15 in	0.327 "
