00 Series

Manufacturer: LEMO

Catalog

CIRCULAR PUSH PULL CONNECTORS R/A RCPT 2NUTS FEM PRNT,BEND RELIEF

Part	Dielectric Material	Includes	Includes Total Count	Mating Cycles	Voltage Rating	Body Material	Center Contact Plating	Body Finish	Operating Temperature (Min)	Operating Temperature (Max)	Contact Termination	Connector Type	Mounting Feature	Mounting Type	Fastening Type	Shield Termination	Housing Color	Center Contact Material	Impedance	Ingress Protection Description	Ingress Protection IP Rating	Connector Style	Number of Ports	For Use With/Related Products	Accessory Type	Color	Cable Group	Shell Finish	Shell Material	Cable Opening (Min)	Cable Opening (Max)	Contact Finish - Mating	Features	Contact Material	Termination	Shielding	Shell Size - Insert	Shell Size - Insert	Insert Material	Contact Finish Thickness - Mating	Material Flammability Rating	Plating	Backshell Material	Number of Positions	Current Rating	Primary Material	Orientation

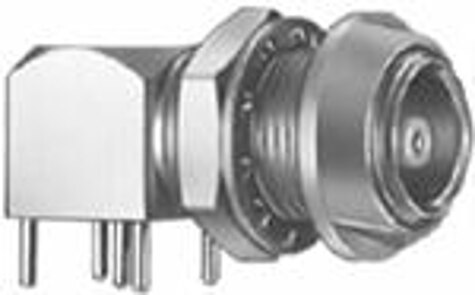

LEMO XSG.00.250.NTNZ	Polytetrafluoroethylene (PTFE)	Connector Lockwasher Nuts	4 pcs	5000 cycles	700 VDC	Brass	Gold	Nickel	-55 °C	500 °F	Solder	Female Socket Recepture	Bulkhead Front Side Nut	Panel Mount Right Angle Through Hole	Push-Pull	Solder	Silver	Bronze	50 Ohm	Dust Protected	IP50	NIM-CAMAC CD/N 549
LEMO ERA.00.250.CTL	Polytetrafluoroethylene (PTFE)	Connector Lockwasher Nut	3 pcs	5000 cycles	700 VDC	Brass	Gold	Chrome	-55 °C	500 °F	Solder Cup	Female Socket Recepture	Bulkhead Rear Side Nut	Panel Mount	Push-Pull	Solder	Silver	Bronze	50 Ohm	Dust Protected	IP50	NIM-CAMAC CD/N 549	1
LEMO GMD.00.025.DN						Plastic																		00 Series Connector	Strain Relief	Black
LEMO FFC.00.250.CTCC31											Solder	Male Pin Plug		Free Hanging (In-Line)	Push-Pull	Clamp	Silver	Brass	50 Ohm	Dust Protected	IP50	Coaxial	1
LEMO FFC.00.650.CLAC31	Polyetheretherketone (PEEK)			1000 cycles	700 VDC	Brass	Gold	Chrome	-55 °C	500 °F	Solder	Male Pin Plug		Free Hanging (In-Line)	Push-Pull	Clamp	Silver	Brass	50 Ohm	Dust Protected	IP50	NIM-CAMAC CD/N 549 Triaxial	1				RG-178

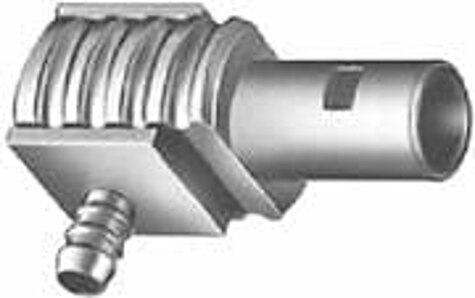

LEMO FLS.00.250.NTAE52	Polytetrafluoroethylene (PTFE)			5000 cycles	700 VDC	Brass	Gold	Nickel	-55 °C	500 °F	Solder	Male Pin Plug		Free Hanging (In-Line) Right Angle	Push-Pull	Crimp	Silver	Brass	50 Ohm	Dust Protected	IP50	NIM-CAMAC CD/N 549					RG-58
LEMO PHG.00.303.CLLD27Z									-55 °C	250 °C		Female Sockets Receptacle		Free Hanging (In-Line)	Push-Pull					Dust Protected	IP50					Silver		Chrome	Brass	0.087 in	0.106 in	Gold	Backshell	Bronze	Solder Cup	Shielded	303	303	PEEK Polyetheretherketone	59 µin	UL94 V-0	Chrome	Brass	3	3 A	Metal	G
LEMO FFC.00.250.CTAD42											Solder	Male Pin Plug		Free Hanging (In-Line)	Push-Pull	Clamp	Silver	Brass	50 Ohm	Dust Protected	IP50	NIM-CAMAC CD/N 549	1				RG-195A
LEMO PSA.00.250.NTLC31	Polytetrafluoroethylene (PTFE)	Connector Lockwasher Nut	3 pcs	5000 cycles	700 VDC	Brass	Gold	Nickel	-55 °C	500 °F	Solder	Female Socket Recepture	Bulkhead Rear Side Nut	Panel Mount	Push-Pull	Clamp	Silver	Bronze	50 Ohm	Dust Protected	IP50	NIM-CAMAC CD/N 549					RG-174A
LEMO FGG.00.306.CLAD35Z									-55 °C	250 °C		Male Pins Plug		Free Hanging (In-Line)	Push-Pull					Dust Protected	IP50					Silver		Chrome	Brass	0.106 in	0.138 in	Gold	Backshell		Solder Cup	Shielded	306	306			UL94 V-0			6	1.5 A	Metal	G
