6803432 Series
Manufacturer: DIALIGHT
Beta
⌘K

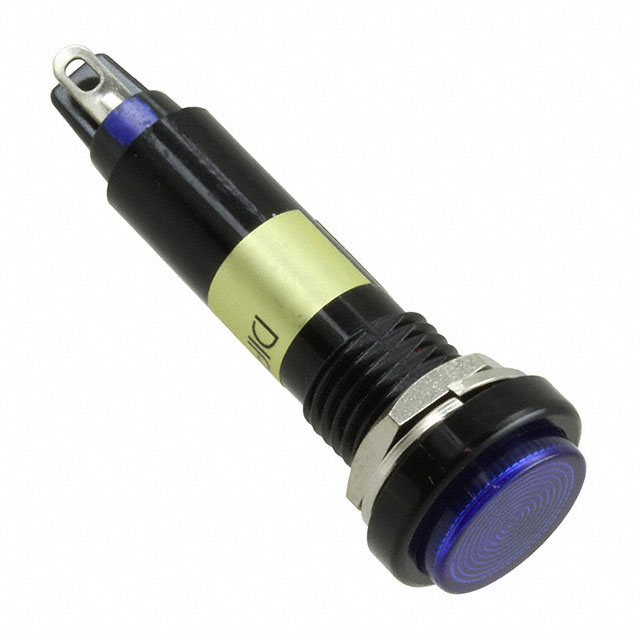

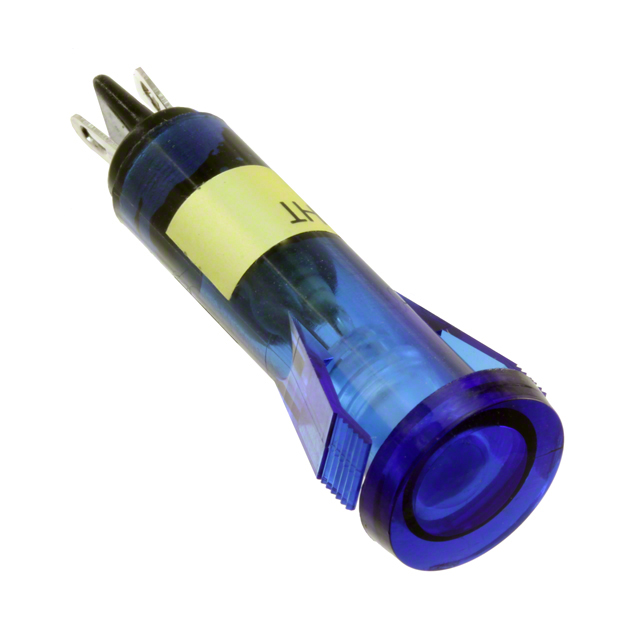

LED PANEL INDCATOR BLUE 24V
| Part | Lamp Color | Type | Ratings | Termination Style | Panel Cutout Dimensions | Panel Cutout Dimensions | Panel Cutout Shape | Wavelength - Peak | Voltage | Lens Style | Viewing Angle | Current | Lens Size [diameter] | Millicandela Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DIALIGHT | Blue | LED | DC | Solder Lug | 0.41 in | 10.3 mm | Round | 470 nm | 24 V | Round with Flat Top | 30 ° | 30 mA | 12 mm Dia | 5400 mcd |
DIALIGHT | Blue | LED | DC | Solder Lug | 470 nm | 12 V | 30 ° | 30 mA | 5400 mcd | |||||
DIALIGHT | Blue | LED | DC | 470 nm | 24 V | 30 ° | 30 mA | 5400 mcd | ||||||
 DIALIGHT | Blue | LED | DC | Solder Lug | 0.41 in | 10.41 mm | Round | 6 V | 30 mA | 245 mcd | ||||
 DIALIGHT | Blue | LED | DC | Solder Lug | 0.37 in | 9.4 mm | Round | 6 V | 30 mA | 730 mcd | ||||
DIALIGHT | Blue | LED | DC | Solder Lug | 0.41 in | 10.3 mm | Round | 470 nm | 12 V | Round with Flat Top | 30 ° | 30 mA | 12 mm Dia | 5400 mcd |
