EQ-34 Series

Catalog

SENSOR REFLECTVE 2M NPN OPEN COL

Part	Output Configuration	Sensing Distance	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Sensing Method	Response Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Connection Method	Cable Length	Cable Length	Light Source	Adjustment Type
Panasonic Industrial Automation Sales EQ-34W	NPN - Open Collector	78.7 "	2 m	6.6 '	55 °C	-20 C	IP67	Reflective	2 ms	30 VDC	10 VDC	Cable	78.74 in	2 m	Infrared	Adjustable

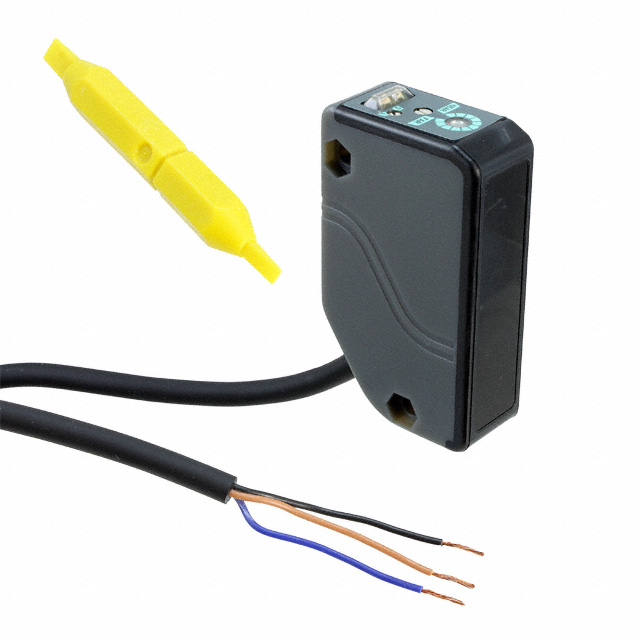

Panasonic Industrial Automation Sales EQ-34-PN	PNP - Open Collector	78.7 "	2 m	6.6 '	55 °C	-20 C	IP67	Reflective	2 ms	30 VDC	10 VDC	Cable	78.74 in	2 m	Infrared	Adjustable

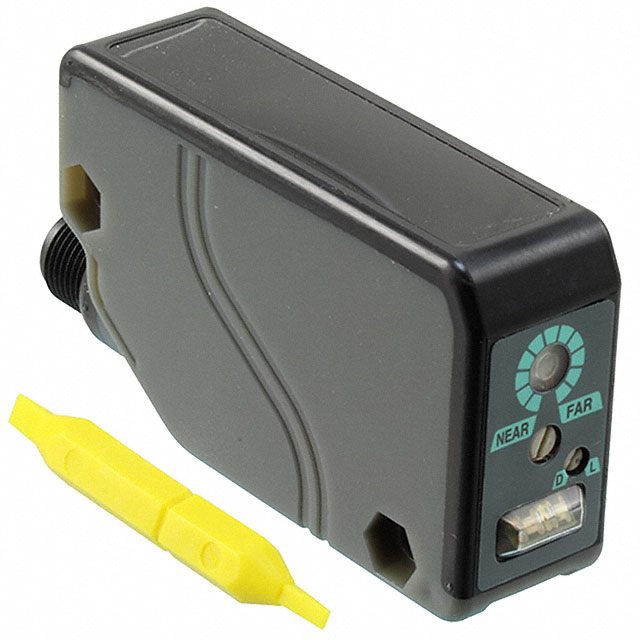

Panasonic Industrial Automation Sales EQ-34-J	NPN - Open Collector	78.7 "	2 m	6.6 '	55 °C	-20 C	IP67	Reflective	2 ms	30 VDC	10 VDC	4POS Connector M12	78.74 in	2 m	Infrared	Adjustable
Panasonic Industrial Automation Sales EQ-34-PN-J	PNP - Open Collector	78.7 "	2 m	6.6 '	55 °C	-20 C	IP67	Reflective	2 ms	30 VDC	10 VDC	4POS Connector M12	78.74 in	2 m	Infrared	Adjustable
