ZT120 Series
Manufacturer: Mallory Sonalert Products Inc.
Beta
⌘K

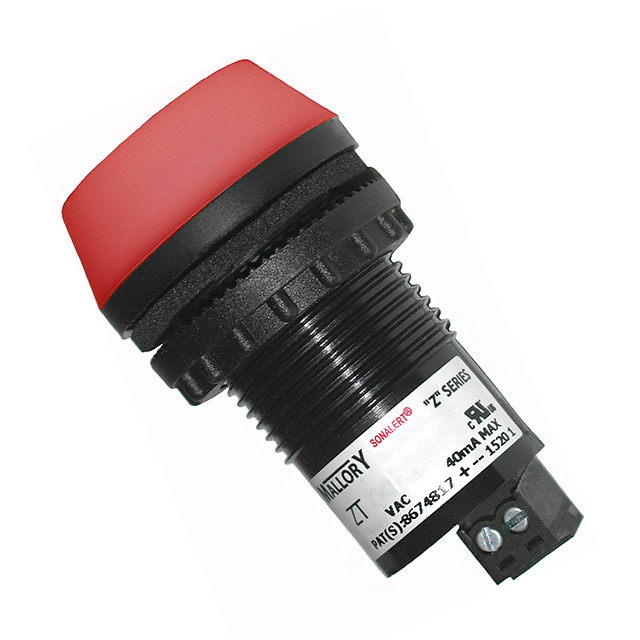

BUZZER PIEZO 30.74MM PNL MNT
| Part | Duration | Sound Pressure Level (SPL) | Current - Supply | Driver Circuitry | Voltage Range [Max] | Voltage Range [Min] | Termination | Operating Mode | Ingress Protection | Technology | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Frequency | Port Location | Input Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mallory Sonalert Products Inc. | 15 Sec | 85 dB | 40 mA | Indicator Internally Driven | 120 V | 90 V | Terminal Block | Single Tone Visual Indicator | NEMA 12 NEMA 3R NEMA 4X | LED Piezo Red | 1.21 in | 30.74 mm | -30 ░C | 65 °C | Panel Mount | 56.75 mm | 2.234 in | 3.7 kHz | Top | AC | cUL UL |
