SS12SD Series

Catalog

SWITCH SLIDE ON NONE ON SPDT TOP SLIDE 0.1A 30VDC 10000CYCLES PC PINS THRU-HOLE

Part	Mechanical Life	Electrical Life	Switch Travel	Actuator Material	Termination Style	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating - DC	Actuator Length [x]	Contact Material	Contact Timing	Circuit	Switch Function	Contact Finish	Mounting Type

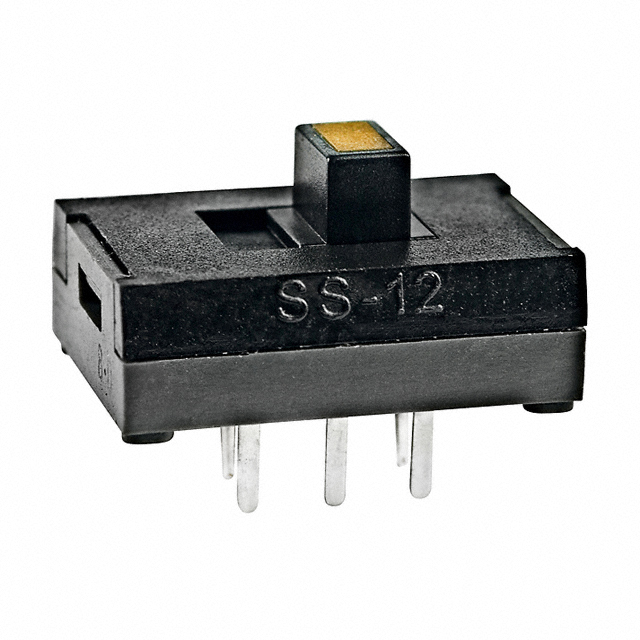

NKK Switches SS12SDP2LE	10000 Steps	10000 Cycles	2 mm	Polyacetal	PC Pin	Illuminated	-15 °C	60 °C	100 mA	30 V	2.5 mm	Phosphor Bronze	Shorting (MBB)	SPDT	On-On	Silver	Through Hole

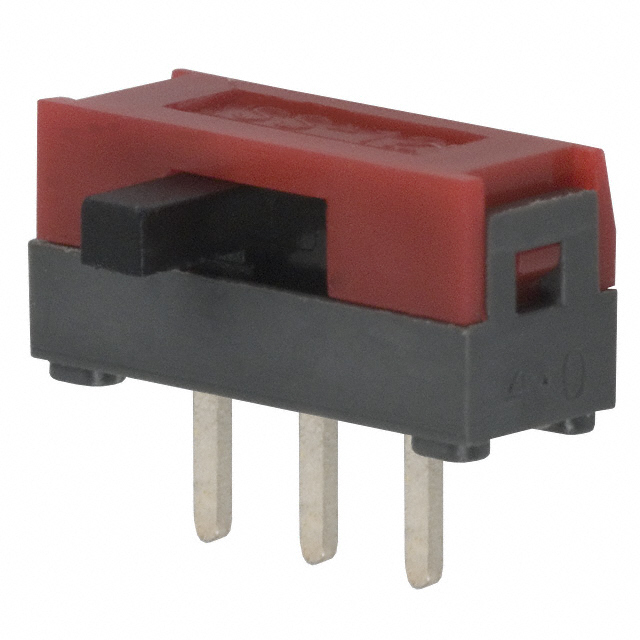

NKK Switches SS12SDH2	10000 Steps	10000 Cycles	2 mm	Polyamide (PA) Nylon	PC Pin	Standard	-15 °C	60 °C	100 mA	30 V	2.5 mm	Phosphor Bronze	Shorting (MBB)	SPDT	On-On	Silver	Right Angle Through Hole

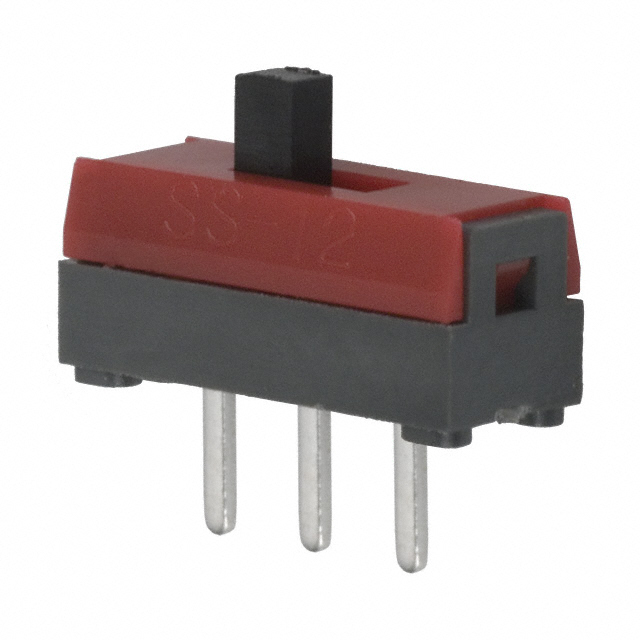

NKK Switches SS12SDP2	10000 Steps	10000 Cycles	2 mm	Polyamide (PA) Nylon	PC Pin	Standard	-15 °C	60 °C	100 mA	30 V	2 mm	Phosphor Bronze	Shorting (MBB)	SPDT	On-On	Silver	Through Hole
