2N6504G Series

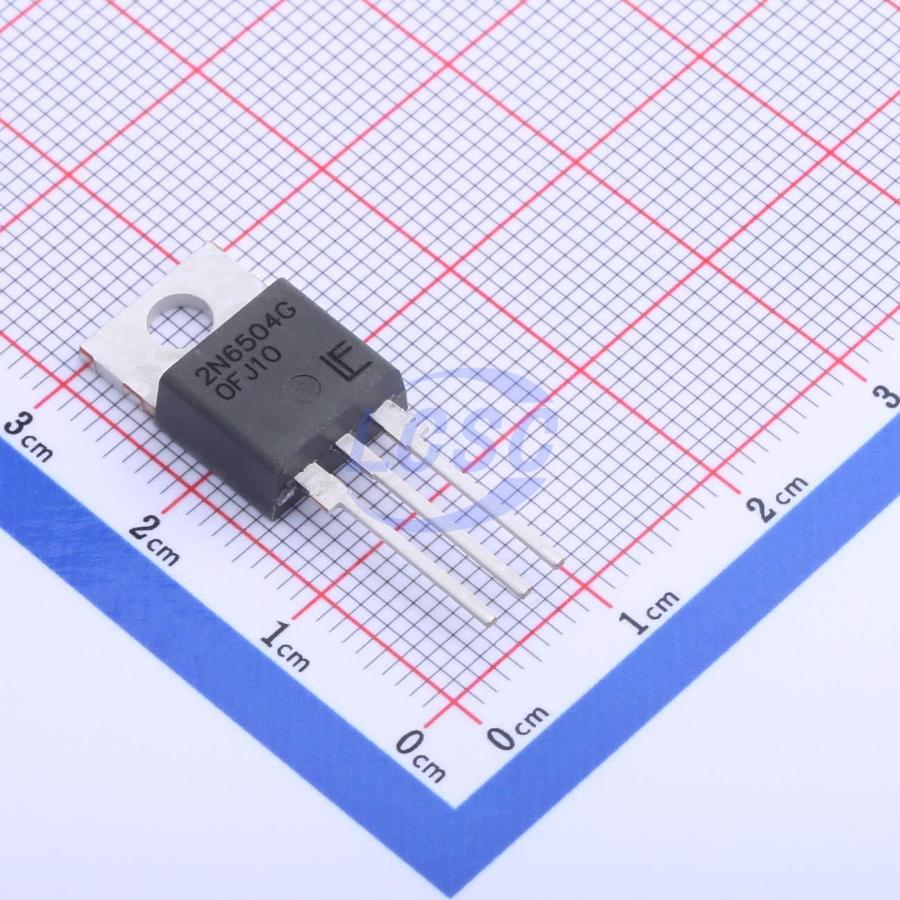

THY T0220 25A 50V SCR

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

THY T0220 25A 50V SCR

Part	SCR Type	Current - On State (It (AV)) (Max) [Max]	Supplier Device Package	Voltage - On State (Vtm) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Voltage - Off State	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Off State (Max) [Max]	Mounting Type
Littelfuse/Commercial Vehicle Products 2N6504G	Standard Recovery	16 A	TO-220AB	1.8 V	1.5 V	40 mA	50 V	30 mA	25 A	250 A	TO-220-3	125 °C	-40 °C	10 µA	Through Hole

Catalog

THY T0220 25A 50V SCR

Key Features

• Glass Passivated Junctions with Center Gate Fire for Greater Parameter Uniformity and Stability

• Small, Rugged, Thermowatt Constructed for Low Thermal Resistance, High Heat Dissipation and Durability

• Blocking Voltage to 800 V

• 300 A Surge Current Capability

• Device Marking: Logo, Device Type, e.g., 2N6504, Date Code

• Lead-Free Package Available*

Description

The Silicon Controlled Rectifier is designed primarily for half-wave ac control applications, such as motor controls, heating controls and power supply crowbar circuits.
