IL-AG9-3 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN RCPT HSG 3POS 2.50MM
| Part | Note | Mounting Type | Fastening Type | Pitch | Pitch | Contact Type | Contact Termination | Number of Rows | Color | Insulation Material | Connector Type | Applications | Pitch - Mating | Pitch - Mating | Features | Termination | Contact Shape | Insulation Height | Insulation Height | Style | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Current Rating (Amps) | Insulation Color | Contact Length - Post | Contact Length - Post | Shrouding | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

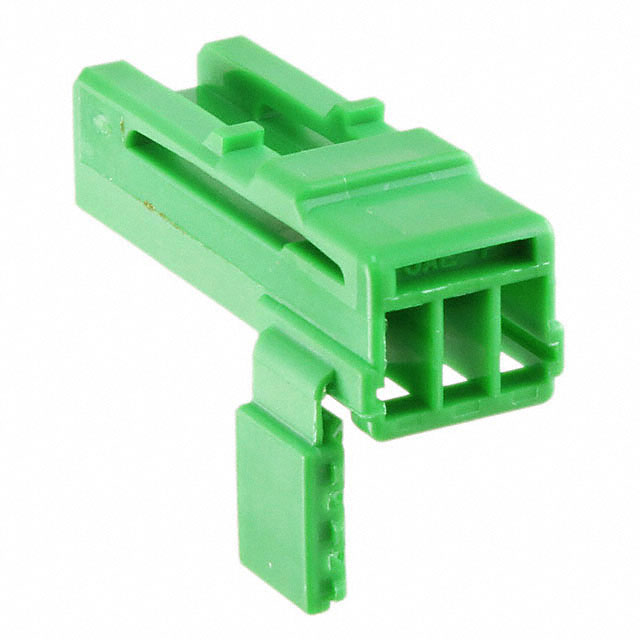

 JAE Electronics | Contacts Not Included | Free Hanging (In-Line) | Latch Lock | 2.5 mm | 0.098 in | Female Socket | Crimp | 1 | Green | Polybutylene Terephthalate (PBT) | Receptacle | |||||||||||||||||||||

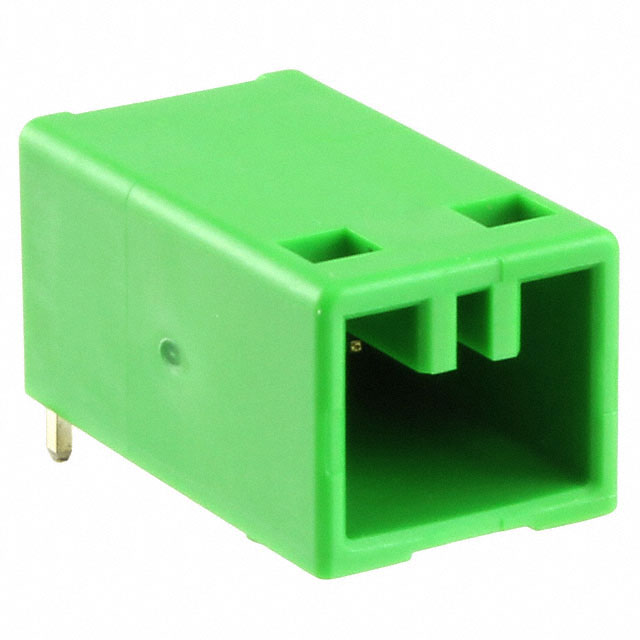

 JAE Electronics | Right Angle Through Hole | Latch Holder | Male Pin | 1 | Polybutylene Terephthalate (PBT) | Header | Automotive | 2.5 mm | 0.098 in | Board Guide | Solder | Square | 8.89 mm | 0.35 in | Board to Cable/Wire | Brass | 85 °C | -40 C | Tin | 0.323 in | 8.2 mm | 3 A | Green | 0.138 in | 3.5 mm | Shrouded - 4 Wall | All | |||||
 JAE Electronics | Contacts Not Included | Free Hanging (In-Line) | 2.5 mm | 0.098 in | Male Pin | Crimp | 1 | Green | Polybutylene Terephthalate (PBT) | Plug |
