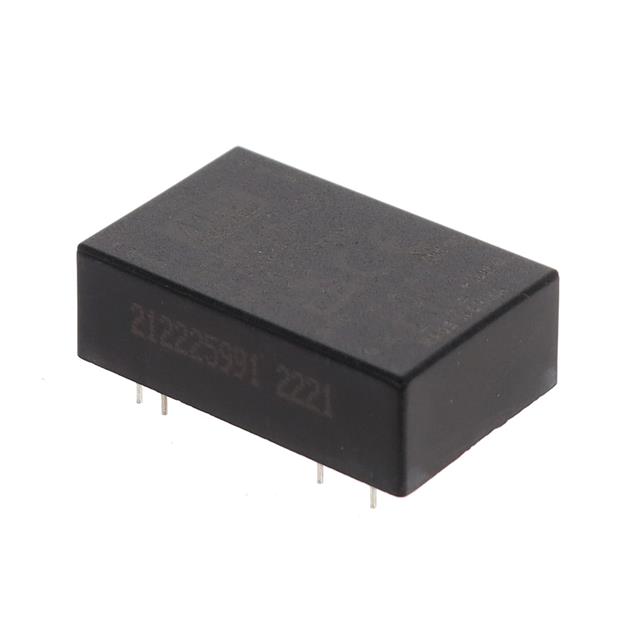

RSDW08G Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC/DC CONVERTER
| Part | Features | Voltage - Output 1 | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Approval Agency | Number of Outputs | Current - Output (Max) [Max] | Voltage - Isolation | Power (Watts) | Mounting Type | Standard Number | Type | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Efficiency | Supplier Device Package | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Remote On/Off | 5 V | 18 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | CE EAC | 1 | 1.6 A | 1.5 kV | 8 W | Through Hole | 50155 | Isolated Module | 75 V | -40 °C | 85 °C | 24-DIP Module 8 Leads | 83 % | 24-DIP | Railway |
MEAN WELL USA Inc. | Remote On/Off | 12 V | 18 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | CE EAC | 1 | 666 mA | 1.5 kV | 8 W | Through Hole | 50155 | Isolated Module | 75 V | -40 °C | 85 °C | 24-DIP Module 8 Leads | 86 % | 24-DIP | Railway |
