0679-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mounting Hole Diameter	Mounting Hole Diameter	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Material	Socket Depth	Socket Depth	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 0679-0-15-15-30-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	Gold	1.37 mm	0.054 in	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	3.05 mm	0.12 in	No Tail	0.072 "	1.83 mm	5.16 mm	0.203 in
Mill-Max Manufacturing Corp. 0679-0-15-01-30-02-10-0	-55 C	125 °C	2.54 µm	100 µin	Tin-Lead	1.37 mm	0.054 in	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	3.05 mm	0.12 in	No Tail	0.072 "	1.83 mm	5.16 mm	0.203 in

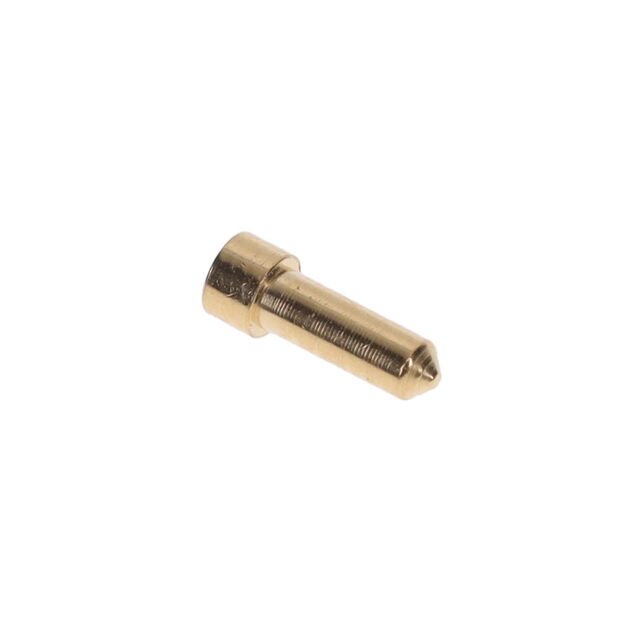

Mill-Max Manufacturing Corp. 0679-0-15-15-30-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	Gold	1.37 mm	0.054 in	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	3.05 mm	0.12 in	No Tail	0.072 "	1.83 mm	5.16 mm	0.203 in
Mill-Max Manufacturing Corp. 0679-0-15-80-30-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	Gold	1.37 mm	0.054 in	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	3.05 mm	0.12 in	No Tail	0.072 "	1.83 mm	5.16 mm	0.203 in
Mill-Max Manufacturing Corp. 0679-0-15-80-30-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	Gold	1.37 mm	0.054 in	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	3.05 mm	0.12 in	No Tail	0.072 "	1.83 mm	5.16 mm	0.203 in

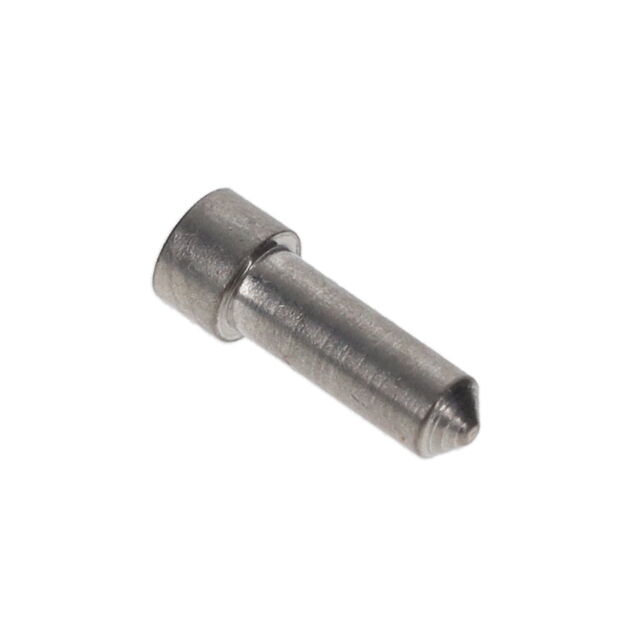

Mill-Max Manufacturing Corp. 0679-0-15-01-30-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	Gold	1.37 mm	0.054 in	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	3.05 mm	0.12 in	No Tail	0.072 "	1.83 mm	5.16 mm	0.203 in
Mill-Max Manufacturing Corp. 0679-0-15-01-30-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	Gold	1.37 mm	0.054 in	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	3.05 mm	0.12 in	No Tail	0.072 "	1.83 mm	5.16 mm	0.203 in
