FFG.1B Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 7P GOLD SLDR CUP

Part	Shell Size - Insert [custom]	Current Rating (Amps)	Primary Material	Shielding	Shell Finish	Features	Contact Material	Shell Material	Fastening Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Orientation [custom]	Connector Type	Color	Mounting Type	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Contact Finish - Mating	Backshell Material, Plating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Insert Material	Material Flammability Rating	Shell Size - Insert	Cable Opening [Min]	Cable Opening [Max]	Termination
LEMO FFG.1B.307.CLAD52	307	7 A	Metal	Shielded	Chrome	Backshell	Brass	Brass	Push-Pull	39.4 µin	1 µm	G	Plug Male Pins	Silver	Free Hanging (In-Line)	0.205 in	4.2 mm	5.2 mm	0.165 "	Gold	Brass Chrome	7	-55 C	250 °C	IP50 - Dust Protected	Polyetheretherketone (PEEK)	UL94 V-0
LEMO FFG.1B.307.CLAD52Z	307	7 A	Metal	Shielded	Chrome	Backshell	Brass	Brass	Push-Pull	39.4 µin	1 µm	G	Plug Male Pins	Silver	Free Hanging (In-Line)	0.205 in	4.2 mm	5.2 mm	0.165 "	Gold	Brass Chrome	7	-55 C	250 °C	IP50 - Dust Protected	Polyetheretherketone (PEEK)	UL94 V-0
LEMO FFG.1B.310.CLAD62		2.5 A	Metal	Shielded	Chrome	Backshell	Brass	Brass	Push-Pull	39.4 µin	1 µm	G	Plug Male Pins	Silver	Free Hanging (In-Line)	0.244 "	5.2 mm	6.2 mm	0.205 in	Gold	Brass Chrome	10	-55 C	250 °C	IP50 - Dust Protected	Polyetheretherketone (PEEK)	UL94 V-0	310
LEMO FFG.1B.307.CLAD72Z	307	7 A	Metal	Shielded	Chrome	Backshell	Brass	Brass	Push-Pull	39.4 µin	1 µm	G	Plug Male Pins	Silver	Free Hanging (In-Line)		6.2 mm	7.2 mm		Gold	Brass Chrome	7	-55 C	250 °C	IP50 - Dust Protected	Polyetheretherketone (PEEK)	UL94 V-0		0.244 in	0.283 in
LEMO FFG.1B.302.CLAD52		15 A	Metal	Shielded	Chrome	Backshell	Brass	Brass	Push-Pull	39.4 µin	1 µm	G	Plug Male Pins	Silver	Free Hanging (In-Line)	0.205 in	4.2 mm	5.2 mm	0.165 "	Gold	Brass Chrome	2	-55 C	250 °C	IP50 - Dust Protected	Polyetheretherketone (PEEK)	UL94 V-0	302

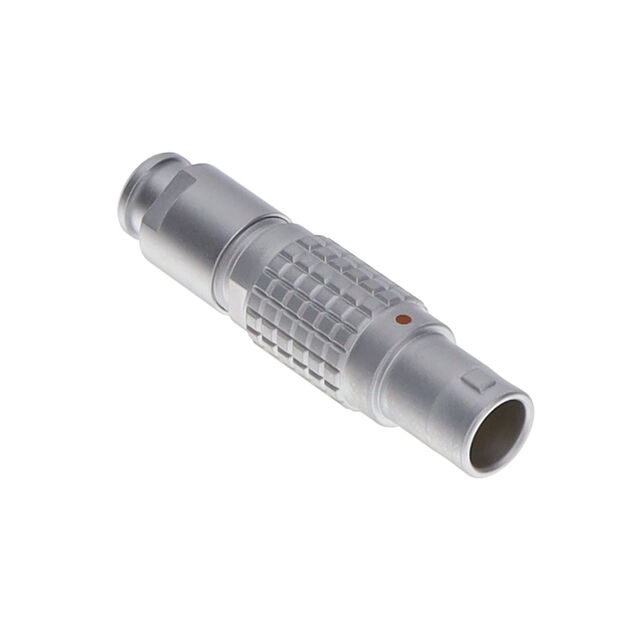

LEMO FFG.1B.304.CLAD42Z		10 A	Metal	Shielded	Chrome	Backshell	Brass	Brass	Push-Pull	39.4 µin	1 µm	G	Plug Male Pins	Silver	Free Hanging (In-Line)	0.165 in	3.1 mm	4.2 mm	0.122 in	Gold	Brass Chrome	4	-55 C	250 °C	IP50 - Dust Protected	Polyetheretherketone (PEEK)	UL94 V-0	304
LEMO FFG.1B.304.CYCD62Z		10 A	Metal	Shielded	Chrome	Backshell	Brass	Brass	Push-Pull	39.4 µin	1 µm	G	Plug Male Pins	Silver	Free Hanging (In-Line)	0.244 "	5.2 mm	6.2 mm	0.205 in	Gold	Brass Chrome	4	-55 C	250 °C	IP50 - Dust Protected	Polyetheretherketone (PEEK)	UL94 V-0	304			Crimp
LEMO FFG.1B.314.CLAD52Z		2 A	Metal	Shielded	Chrome	Backshell	Brass	Brass	Push-Pull	39.4 µin	1 µm	G	Plug Male Pins	Silver	Free Hanging (In-Line)	0.205 in	4.2 mm	5.2 mm	0.165 "	Gold	Brass Chrome	14	-55 C	250 °C	IP50 - Dust Protected	Polyetheretherketone (PEEK)	UL94 V-0	314
LEMO FFG.1B.304.CLAD72		10 A	Metal	Shielded	Chrome	Backshell	Brass	Brass	Push-Pull	39.4 µin	1 µm	G	Plug Male Pins	Silver	Free Hanging (In-Line)		6.2 mm	7.2 mm		Gold	Brass Chrome	4	-55 C	250 °C	IP50 - Dust Protected	Polyetheretherketone (PEEK)	UL94 V-0	304	0.244 in	0.283 in
LEMO FFG.1B.308.CLAD42Z		5 A	Metal	Shielded	Chrome	Backshell	Brass	Brass	Push-Pull	39.4 µin	1 µm	G	Plug Male Pins	Silver	Free Hanging (In-Line)	0.165 in	3.1 mm	4.2 mm	0.122 in	Gold	Brass Chrome	8	-55 C	250 °C	IP50 - Dust Protected	Polyetheretherketone (PEEK)	UL94 V-0	308
