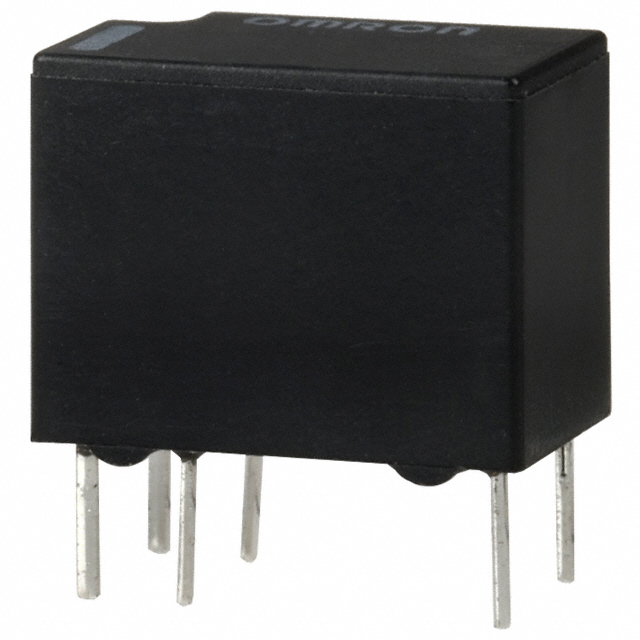

G5V-1-D Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GENERAL PURPOSE SPDT 1A 5V
| Part | Coil Type | Coil Resistance | Contact Rating (Current) | Contact Material | Termination Style | Approval Agency | Seal Rating | Contact Form | Switching Voltage [Max] | Relay Type | Operate Time | Release Time | Must Release Voltage | Coil Voltage | Coil Current | Operating Temperature [Min] | Operating Temperature [Max] | Load - Max Switching | Must Operate Voltage | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Non Latching | 167 Ohms | 1 A | Gold (Au) Silver (Ag) | PC Pin | CSA UR | Sealed - Fully | SPDT (1 Form C) | 60 VDC 125 VAC | General Purpose | 5 ms | 5 ms | 0.5 VDC | 5 VDC | 30 mA | -40 °C | 70 °C | 60 W 125 VA | 4 VDC | Through Hole |
