160074 Series

MX150 Mat-Sealed Female Connector Assembly, Dual Row, 8 Circuits, UL 94V-0, Keying Option B, with Connector Position Assurance, Light Gray

Manufacturer: Molex

Catalog

MX150 Mat-Sealed Female Connector Assembly, Dual Row, 8 Circuits, UL 94V-0, Keying Option B, with Connector Position Assurance, Light Gray

Part	Fastening Type	Color	Contact Termination	Features	Contact Type	Mounting Type	Note	Connector Type	Number of Positions	Insulation Material	Number of Rows	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]
Molex 1600740004	Latch Holder	Gray	Crimp	Sealed	Female Socket	Free Hanging (In-Line)	Contacts Not Included	Receptacle	20	Polyamide (PA6) Nylon 6 Glass Filled	2
Molex 1600742008
Molex 1600744006
Molex 1600742006

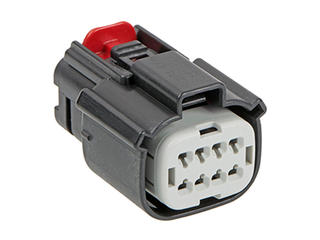

Molex 1600744007	Latch Holder	Gray	Crimp	Connector Position Assurance (CPA) Sealed	Female Socket	Free Hanging (In-Line)		Receptacle	8	Polyamide (PA6) Nylon 6 Glass Filled	2	3.5 mm	0.138 in	125 °C	-40 °C
Molex 1600744008	Latch Holder	Gray	Crimp	Connector Position Assurance (CPA) Sealed	Female Socket	Free Hanging (In-Line)	Contacts Not Included	Receptacle	8	Polyamide (PA6) Nylon 6 Glass Filled	2	3.5 mm	0.138 in	125 °C	-40 °C
Molex 1600744014	Latch Holder	Gray	Crimp	Sealed	Female Socket	Free Hanging (In-Line)	Contacts Not Included	Receptacle	8	Polyamide (PA6) Nylon 6 Glass Filled	2	3.5 mm	0.138 in	125 °C	-40 °C
Molex 1600744017	Latch Holder	Gray	Crimp	Connector Position Assurance (CPA) Sealed	Female Socket	Free Hanging (In-Line)	Contacts Not Included	Receptacle	8	Polyamide (PA6) Nylon 6 Glass Filled	2	3.5 mm	0.138 in	125 °C	-40 °C

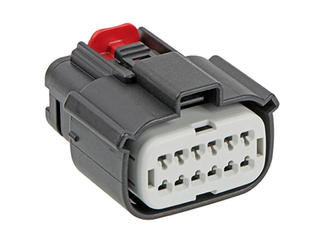

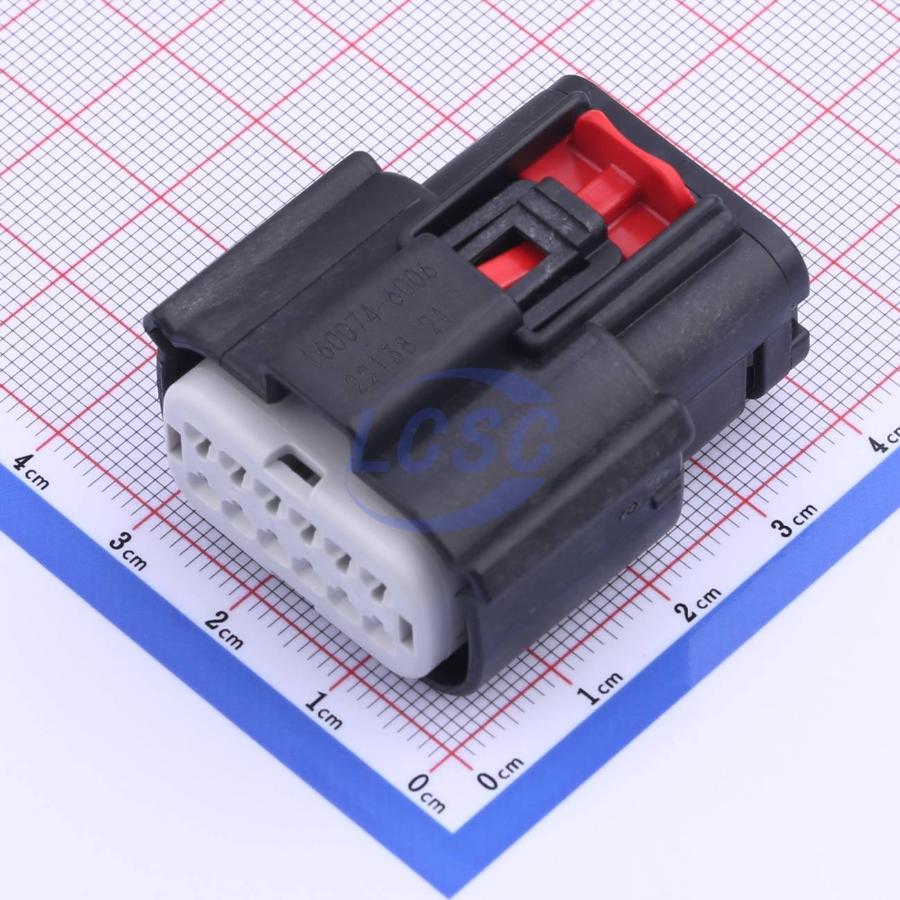

Molex 1600746006	Latch Holder	Black	Crimp	Connector Position Assurance (CPA) Sealed	Female Socket	Free Hanging (In-Line)	Contacts Not Included	Receptacle	12	Polyamide (PA6) Nylon 6 Glass Filled	2
Molex 1600740003	Latch Holder	Gray	Crimp	Sealed	Female Socket	Free Hanging (In-Line)	Contacts Not Included	Receptacle	20	Polyamide (PA6) Nylon 6 Glass Filled	2
