RP380 Series

Catalog

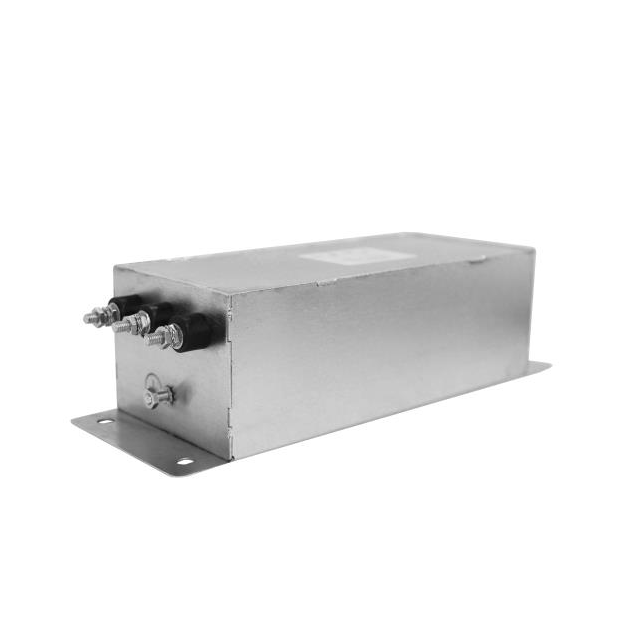

LINE FILTER 600VAC 15A CHASSIS

...

Part	Approval Agency	Termination Style	Frequency - Operating [Max]	Frequency - Operating [Min]	Current	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Voltage - Rated AC (Phase to Ground/Neutral)	Applications	Filter Type	Voltage - Rated AC
Astrodyne TDI RP380-15-1000-W	CE cURus SEMKO	Wire Leads	60 Hz	50 Hz	15 A	Chassis Mount	100 °C	-25 °C	Single Stage	3.8 kV	General Purpose	Three Phase (Delta)	600 V
Astrodyne TDI RP380-150-2000-S	CE cURus SEMKO	Threaded Post	60 Hz	50 Hz	150 A	Chassis Mount	100 °C	-25 °C	Single Stage	3.8 kV	General Purpose	Three Phase (Delta)	600 V
Astrodyne TDI RP380-80-0-C	CE cURus SEMKO	Terminal Block	60 Hz	50 Hz	80 A	Chassis Mount	100 °C	-25 °C	Single Stage	3.8 kV	General Purpose	Three Phase (Delta)	600 V
Astrodyne TDI RP380-100-2000-W	CE cURus SEMKO	Wire Leads	60 Hz	50 Hz	100 A	Chassis Mount	100 °C	-25 °C	Single Stage	3.8 kV	General Purpose	Three Phase (Delta)	600 V
Astrodyne TDI RP380-80-2000-C	CE cURus SEMKO	Terminal Block	60 Hz	50 Hz	80 A	Chassis Mount	100 °C	-25 °C	Single Stage	3.8 kV	General Purpose	Three Phase (Delta)	600 V
Astrodyne TDI RP380-200-2000-C	CE cURus SEMKO	Terminal Block	60 Hz	50 Hz	200 A	Chassis Mount	100 °C	-25 °C	Single Stage	3.8 kV	General Purpose	Three Phase (Delta)	600 V
Astrodyne TDI RP380-15-0-W	CE cURus SEMKO	Wire Leads	60 Hz	50 Hz	15 A	Chassis Mount	100 °C	-25 °C	Single Stage	3.8 kV	General Purpose	Three Phase (Delta)	600 V
Astrodyne TDI RP380-100-10-S	CE cURus SEMKO	Threaded Post (M6)	60 Hz	50 Hz	100 A	Chassis Mount	100 °C	-25 °C	Single Stage	3.8 kV	General Purpose	Three Phase (Delta)	600 V
Astrodyne TDI RP380-80-2000-S	CE cURus SEMKO	Threaded Post (M6)	60 Hz	50 Hz	80 A	Chassis Mount	100 °C	-25 °C	Single Stage	3.8 kV	General Purpose	Three Phase (Delta)	600 V
Astrodyne TDI RP380-200-10-C	CE cURus SEMKO	Terminal Block	60 Hz	50 Hz	200 A	Chassis Mount	100 °C	-25 °C	Single Stage	3.8 kV	General Purpose	Three Phase (Delta)	600 V
