090779 Series
Manufacturer: Molex
Beta
⌘K
CONN HEADER VERT 14POS 1.27MM
| Part | Pitch - Mating | Pitch - Mating | Connector Type | Number of Positions Loaded | Termination | Material Flammability Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Finish - Mating | Insulation Height [z] | Insulation Height [z] | Insulation Color | Shrouding | Insulation Material | Number of Positions | Contact Shape | Contact Type | Fastening Type | Number of Rows | Style | Contact Length - Post | Contact Length - Post | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Mounting Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 0.05 in | 1.27 mm | Header | All | Solder | UL94 V-0 | Brass | -40 °C | 105 ░C | 1.2 A | Palladium-Nickel | 6.4 mm | 0.252 in | Natural | Shrouded - 2 Wall | Glass Filled Nylon 4/6 Polyamide (PA46) | 14 | Rectangular | Male Blade | Push-Pull | 1 | Board to Cable/Wire | 0.13 in | 3.3 mm | 250 VDC | 24 µin | 0.61 µm | Automotive General Purpose Industrial Medical | Through Hole | |
 Molex | 0.05 in | 1.27 mm | Header | All | Solder | UL94 V-0 | Brass | -40 °C | 105 ░C | 1.2 A | 6.4 mm | 0.252 in | Natural | Shrouded - 2 Wall | Glass Filled Nylon 4/6 Polyamide (PA46) | 14 | Rectangular | Male Blade | Push-Pull | 1 | Board to Cable/Wire | 0.13 in | 3.3 mm | 250 VDC | 157.5 µin | 4 µm | Automotive General Purpose Industrial Medical | Through Hole | Tin | |
 Molex | 0.05 in | 1.27 mm | Header | All | Solder | UL94 V-0 | Brass | -40 °C | 105 ░C | 1.2 A | 6.4 mm | 0.252 in | Natural | Shrouded - 2 Wall | Glass Filled Nylon 4/6 Polyamide (PA46) | 20 | Rectangular | Male Blade | Push-Pull | 1 | Board to Cable/Wire | 0.13 in | 3.3 mm | 250 VDC | 157.5 µin | 4 µm | Automotive General Purpose Industrial Medical | Through Hole | Tin | |
Molex | 0.05 in | 1.27 mm | Header | All | Solder | UL94 V-0 | Brass | -40 °C | 105 ░C | 1.2 A | Palladium-Nickel | 6.4 mm | 0.252 in | Natural | Shrouded - 2 Wall | Glass Filled Nylon 4/6 Polyamide (PA46) | 24 | Rectangular | Male Blade | Push-Pull | 1 | Board to Cable/Wire | 0.13 in | 3.3 mm | 250 VDC | 24 µin | 0.61 µm | Automotive General Purpose Industrial Medical | Through Hole | |

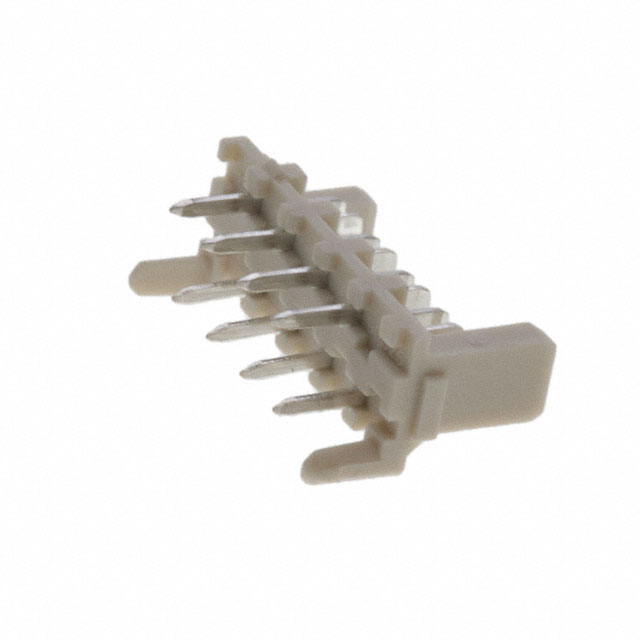

 Molex | 0.05 in | 1.27 mm | Header | All | Solder | UL94 V-0 | Brass | -40 °C | 105 ░C | 1.2 A | Palladium-Nickel | 6.4 mm | 0.252 in | Natural | Shrouded - 2 Wall | Glass Filled Nylon 4/6 Polyamide (PA46) | 6 | Rectangular | Male Blade | Push-Pull | 1 | Board to Cable/Wire | 0.13 in | 3.3 mm | 250 VDC | 24 µin | 0.61 µm | Automotive General Purpose Industrial Medical | Through Hole | |
 Molex | 0.05 in | 1.27 mm | Header | All | Solder | UL94 V-0 | Brass | -40 °C | 105 ░C | 1.2 A | 6.4 mm | 0.252 in | Natural | Shrouded - 2 Wall | Glass Filled Nylon 4/6 Polyamide (PA46) | 8 | Rectangular | Male Blade | Push-Pull | 1 | Board to Cable/Wire | 0.13 in | 3.3 mm | 250 VDC | 157.5 µin | 4 µm | Automotive General Purpose Industrial Medical | Through Hole | Tin |
