EB2085 Series

Catalog

LIGHT TOUCH MINIATURE PUSHBUTTON

Part	Electrical Life	Mechanical Life	Current Rating (Amps)	Actuator Marking	Circuit	Color - Actuator/Cap	Actuator Type	Features	Type	Voltage Rating - AC	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Mounting Type	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Voltage (Nominal)	Illumination Type, Color	Voltage Rating - DC	Illumination Voltage (Nominal) [Max]	Illumination Voltage (Nominal) [Min]
NKK Switches EB2085P-BA	25000 Steps	100000 Cycles	3 A	No Marking	DPDT	Black	Button Round	Epoxy Sealed Terminals	Standard	125 V	On-On	70 °C	-10 °C	0.25 in	Panel Mount Rear	PC Pin
NKK Switches EB2085-C-J33ACC	25000 Steps	100000 Cycles	3 A	No Marking	DPDT	Red	Button Square	Epoxy Sealed Terminals	Illuminated Standard	125 V	On-On	70 °C	-10 °C		Panel Mount Snap-In	Solder Lug	18.4 mm	15 mm	2 VDC	LED Red/Red
NKK Switches EB2085-A-J50	25000 Steps	100000 Cycles	3 A	No Marking	DPDT	Black	Button Square	Epoxy Sealed Terminals	Standard	125 V	On-On	70 °C	-10 °C		Panel Mount Snap-In	Solder Lug	15 mm	12.5 mm

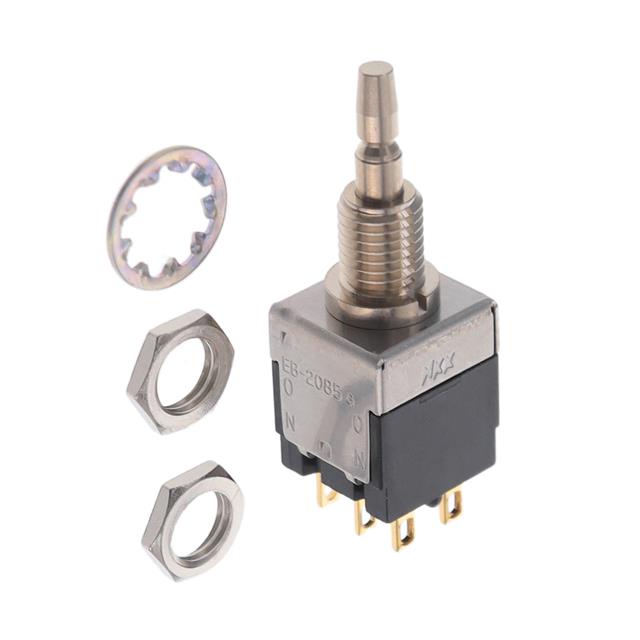

NKK Switches EB2085G	50000 Cycles	100000 Cycles	0.4 VA	No Marking	DPDT		Plunger for Cap	Epoxy Sealed Terminals	Standard	28 V	On-On	70 °C	-10 °C	0.25 in	Panel Mount Rear	Solder Lug					28 V
NKK Switches EB2085-CB	25000 Steps	100000 Cycles	3 A	No Marking	DPDT	White	Button Round	Epoxy Sealed Terminals	Standard	125 V	On-On	70 °C	-10 °C	0.25 in	Panel Mount Rear	Solder Lug
NKK Switches EB2085-C-J32AC	25000 Steps	100000 Cycles	3 A	No Marking	DPDT	Red	Button Square	Epoxy Sealed Terminals	Illuminated Standard	125 V	On-On	70 °C	-10 °C		Panel Mount Snap-In	Solder Lug	15 mm	12.5 mm	2.8 VDC	LED Red
NKK Switches EB2085P-A-J34ACE	25000 Steps	100000 Cycles	3 A	No Marking	DPDT	Black	Button Square	Epoxy Sealed Terminals	Illuminated Standard	125 V	On-On	70 °C	-10 °C		Panel Mount Snap-In	PC Pin	18.4 mm	15 mm		LED Red Yellow		2 VDC	1.9 VDC
NKK Switches EB2085-A-J53AFF	25000 Steps	100000 Cycles	3 A	No Marking	DPDT	Black	Button Square	Epoxy Sealed Terminals	Illuminated Standard	125 V	On-On	70 °C	-10 °C		Panel Mount Snap-In	Solder Lug	18.4 mm	15 mm	2.25 VDC	Green/Green LED
NKK Switches EB2085-CC	25000 Steps	100000 Cycles	3 A	No Marking	DPDT	Red	Button Round	Epoxy Sealed Terminals	Standard	125 V	On-On	70 °C	-10 °C	0.25 in	Panel Mount Rear	Solder Lug
NKK Switches EB2085G-B-J51C	50000 Cycles	100000 Cycles	0.4 VA	No Marking	DPDT	White	Button Square	Epoxy Sealed Terminals	Standard	28 V	On-On	70 °C	-10 °C		Panel Mount Snap-In	Solder Lug	15 mm	12.5 mm			28 V
