282841 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLK 6P SIDE ENT 5.08MM PCB
| Part | Contact Material - Plating [custom] | Pitch [x] | Pitch [x] | Voltage | Screw Thread | Current | Mounting Type | Wire Termination | Color | Torque - Screw | Torque - Screw | Positions Per Level | Features | Mating Orientation | Clamp Material - Plating | Wire Gauge [Max] | Wire Gauge [Min] | Screw Material - Plating | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

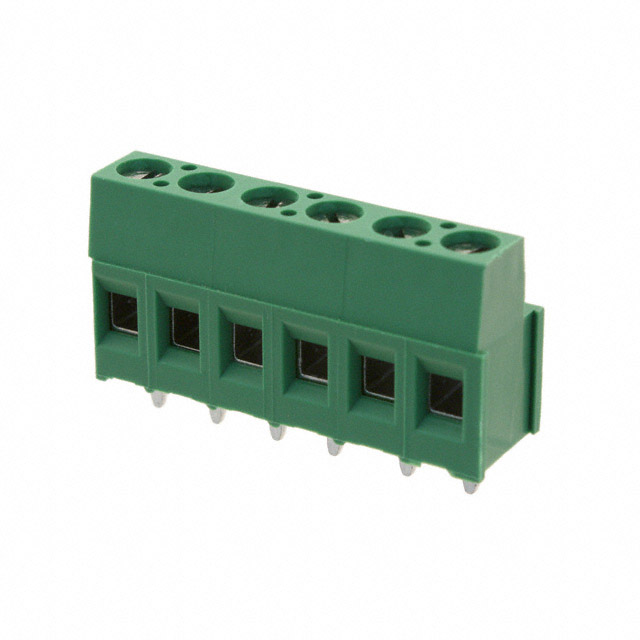

 TE Connectivity Raychem Cable Protection | Brass - Tin Plated | 0.2 in | 5.08 mm | 300 V | M3 | 17.5 A | Through Hole | Screw - Rising Cage Clamp | Green | 0.79 Nm | 7 Lb-In | 6 | Interlocking (Side) | Horizontal with Board | Brass - Nickel Plated | 30 AWG | 12 AWG | Brass - Nickel Plated | 1 |

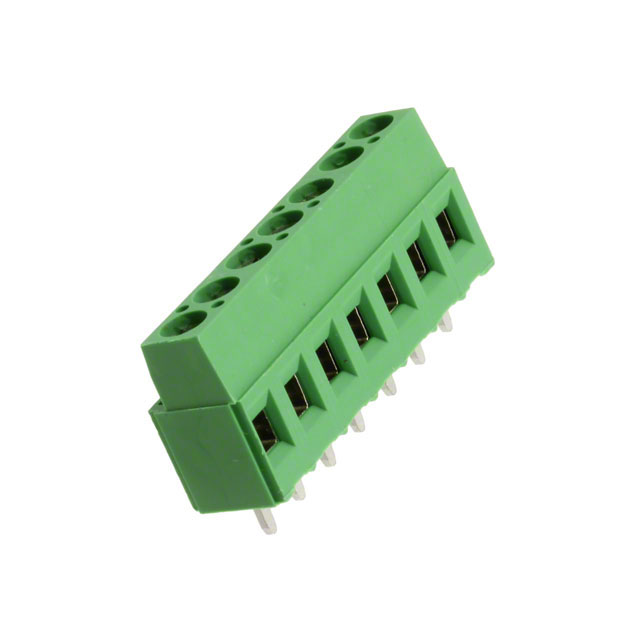

 TE Connectivity Raychem Cable Protection | Brass - Tin Plated | 0.2 in | 5.08 mm | 300 V | M3 | 17.5 A | Through Hole | Screw - Rising Cage Clamp | Green | 0.79 Nm | 7 Lb-In | 7 | Interlocking (Side) | Horizontal with Board | Brass - Nickel Plated | 30 AWG | 12 AWG | Brass - Nickel Plated | 1 |

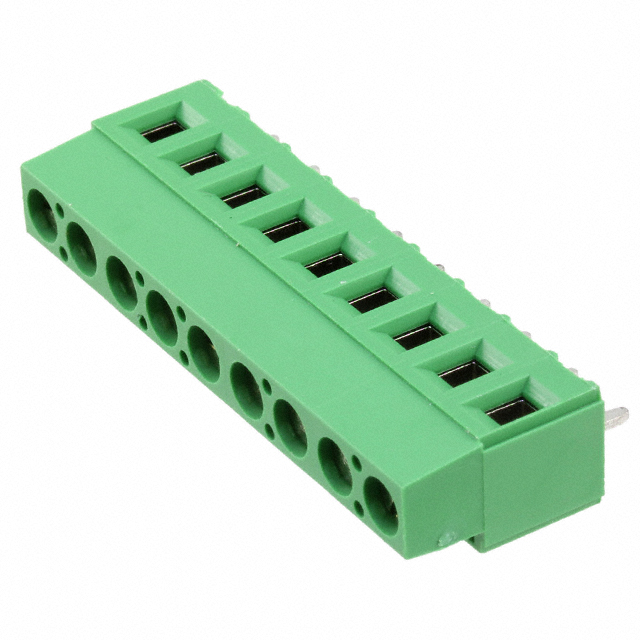

 TE Connectivity Raychem Cable Protection | Brass - Tin Plated | 0.2 in | 5.08 mm | 300 V | M3 | 17.5 A | Through Hole | Screw - Rising Cage Clamp | Green | 0.79 Nm | 7 Lb-In | 9 | Interlocking (Side) | Horizontal with Board | Brass - Nickel Plated | 30 AWG | 12 AWG | Brass - Nickel Plated | 1 |
 TE Connectivity Raychem Cable Protection | Brass - Tin Plated | 0.2 in | 5.08 mm | 300 V | M3 | 17.5 A | Through Hole | Screw - Rising Cage Clamp | Green | 0.79 Nm | 7 Lb-In | 3 | Interlocking (Side) | Horizontal with Board | Brass - Nickel Plated | 30 AWG | 12 AWG | Brass - Nickel Plated | 1 |

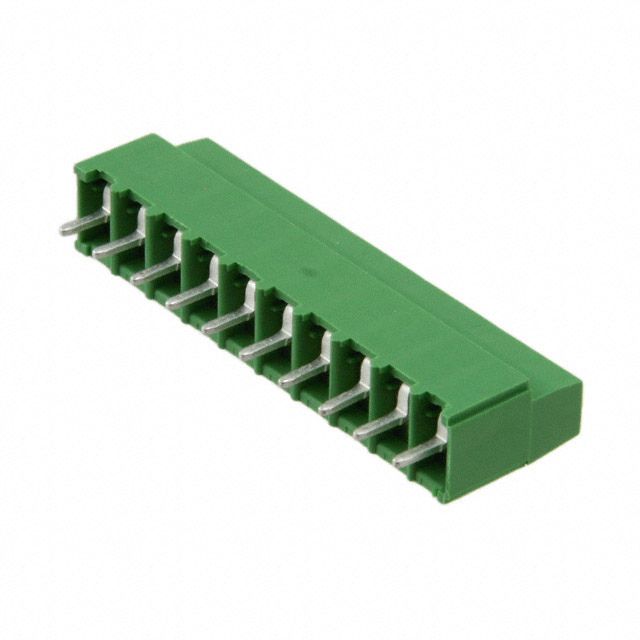

 TE Connectivity Raychem Cable Protection | Brass - Tin Plated | 0.2 in | 5.08 mm | 300 V | M3 | 17.5 A | Through Hole | Screw - Rising Cage Clamp | Green | 0.79 Nm | 7 Lb-In | 10 | Interlocking (Side) | Horizontal with Board | Brass - Nickel Plated | 30 AWG | 12 AWG | Brass - Nickel Plated | 1 |

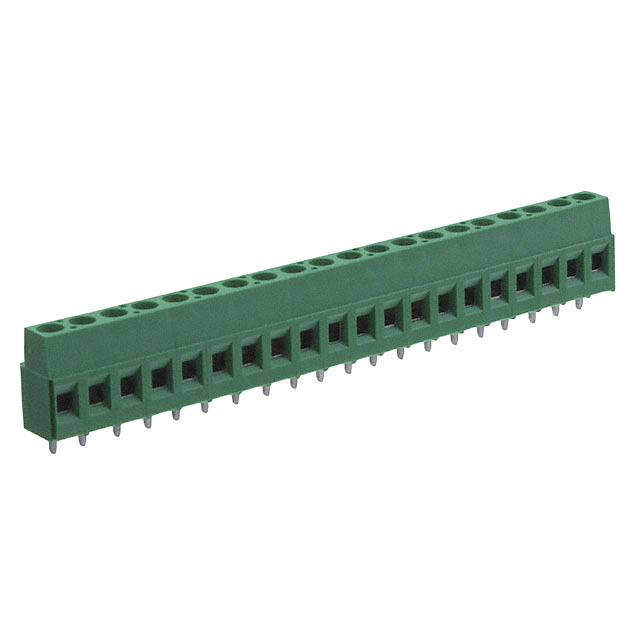

 TE Connectivity Raychem Cable Protection | Brass - Tin Plated | 0.2 in | 5.08 mm | 300 V | M3 | 17.5 A | Through Hole | Screw - Rising Cage Clamp | Green | 0.79 Nm | 7 Lb-In | 20 | Interlocking (Side) | Horizontal with Board | Brass - Nickel Plated | 30 AWG | 12 AWG | Brass - Nickel Plated | 1 |

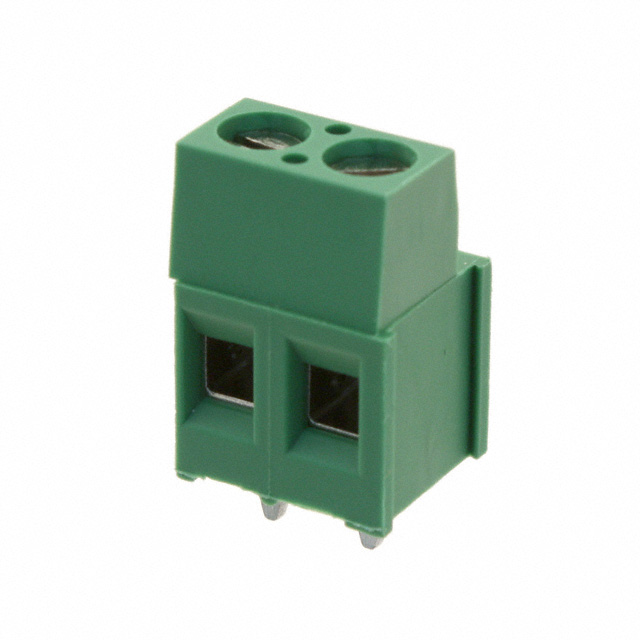

 TE Connectivity Raychem Cable Protection | Brass - Tin Plated | 0.2 in | 5.08 mm | 300 V | M3 | 17.5 A | Through Hole | Screw - Rising Cage Clamp | Green | 0.79 Nm | 7 Lb-In | 2 | Interlocking (Side) | Horizontal with Board | Brass - Nickel Plated | 30 AWG | 12 AWG | Brass - Nickel Plated | 1 |
