TS3A4742 Series

0.9-Ω, 3.3-V, 1:1 (SPST), 2-channel analog switch (active low) with 1.8-V input logic

Catalog

0.9-Ω, 3.3-V, 1:1 (SPST), 2-channel analog switch (active low) with 1.8-V input logic

Part	Operating Temperature [Max]	Operating Temperature [Min]	Channel-to-Channel Matching (ΔRon)	Supplier Device Package	Current - Leakage (IS(off)) (Max) [Max]	Number of Circuits	Mounting Type	-3db Bandwidth	Switch Circuit	Package / Case	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Crosstalk	Charge Injection	Multiplexer/Demultiplexer Circuit	On-State Resistance (Max) [Max]	Switch Time (Ton, Toff) (Max) [Max] [custom]	Switch Time (Ton, Toff) (Max) [Max] [custom]	Package / Case

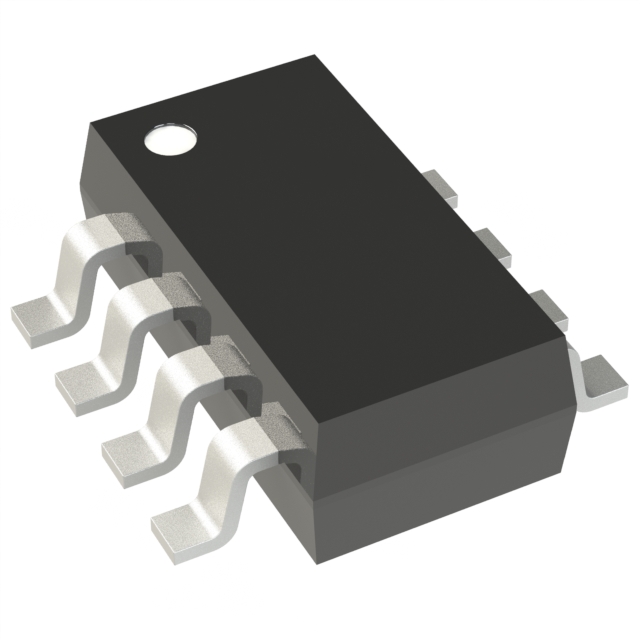

Texas Instruments TS3A4742DCNR	85 C	-40 ¯C	30 mOhm	SOT-23-8	2 nA	2	Surface Mount	125 MHz	SPST - NC	SOT-23-8	3.6 V	1.6 V	20 pF	23 pF	-95 dB	3 pC	1:1	900 mOhm	14 ns	9 ns
Texas Instruments TS3A4742DGKR	85 C	-40 ¯C	30 mOhm	8-VSSOP	2 nA	2	Surface Mount	125 MHz	SPST - NC	8-MSOP 8-TSSOP	3.6 V	1.6 V	20 pF	23 pF	-95 dB	3 pC	1:1	900 mOhm	14 ns	9 ns	0.118 in 3 mm Width

Catalog

0.9-Ω, 3.3-V, 1:1 (SPST), 2-channel analog switch (active low) with 1.8-V input logic

Description

The TS3A4741 and TS3A4742 are bi-directional, 2-channel single-pole/single-throw (SPST) analog switches with low ON-state resistance (Ron), low-voltage, that operate from a single 1.6-V to 3.6-V supply. These devices have fast switching speeds, handle rail-to-rail analog signals, and consume very low quiescent power. The digital logic input is 1.8-V CMOS compatible when using a single 3-V supply. The TS3A4741 has two normally open (NO) switches, and the TS3A4742 has two normally closed (NC) switches. The TS3A4741 and TS3A4742 are bi-directional, 2-channel single-pole/single-throw (SPST) analog switches with low ON-state resistance (Ron), low-voltage, that operate from a single 1.6-V to 3.6-V supply. These devices have fast switching speeds, handle rail-to-rail analog signals, and consume very low quiescent power. The digital logic input is 1.8-V CMOS compatible when using a single 3-V supply. The TS3A4741 has two normally open (NO) switches, and the TS3A4742 has two normally closed (NC) switches.
