333-084 Series
Manufacturer: EDAC Inc.
Beta
⌘K

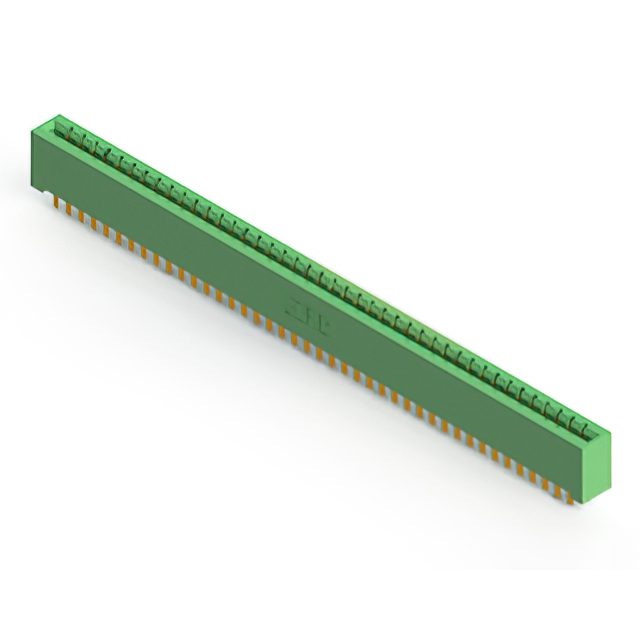

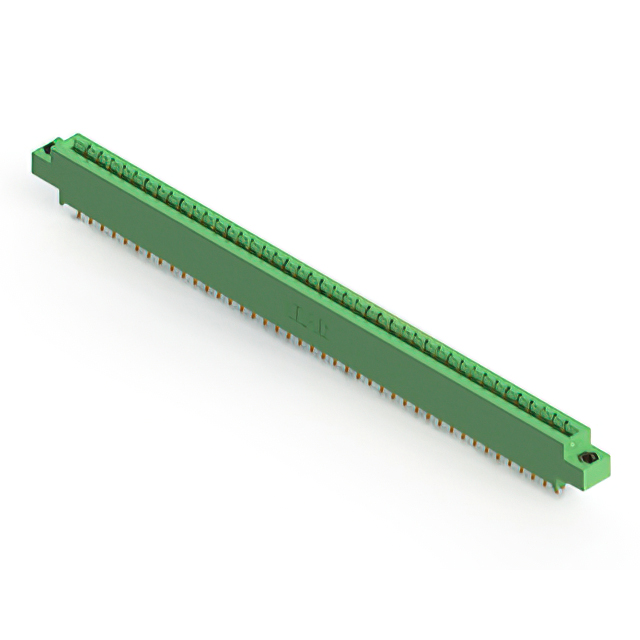

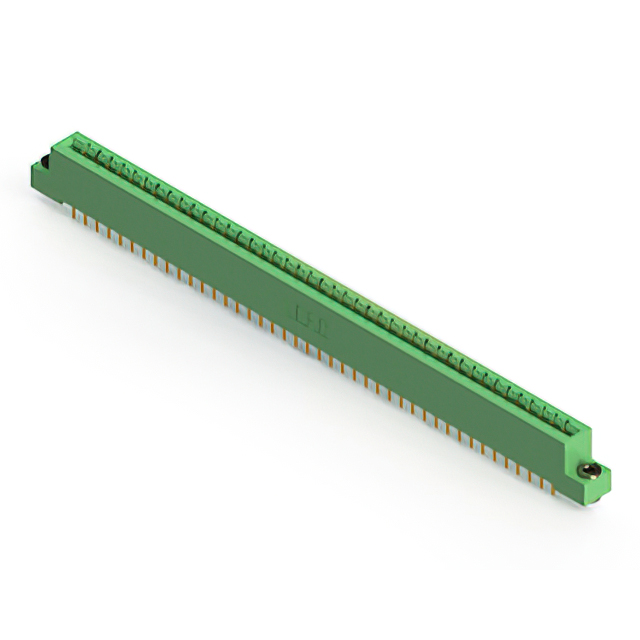

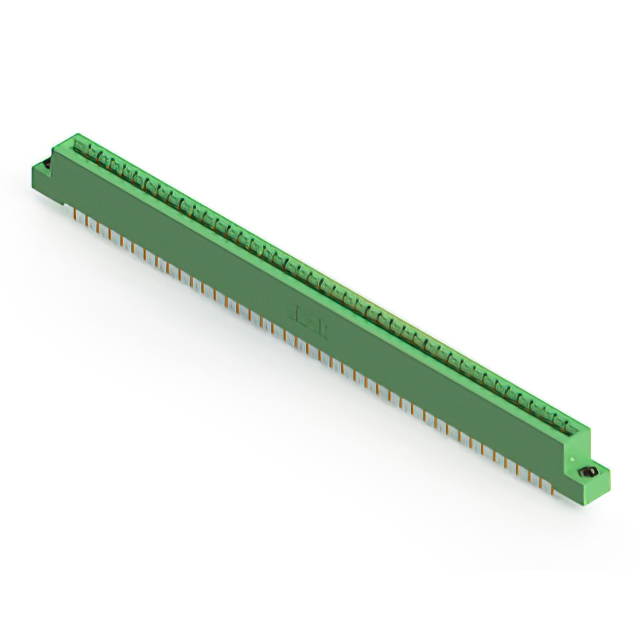

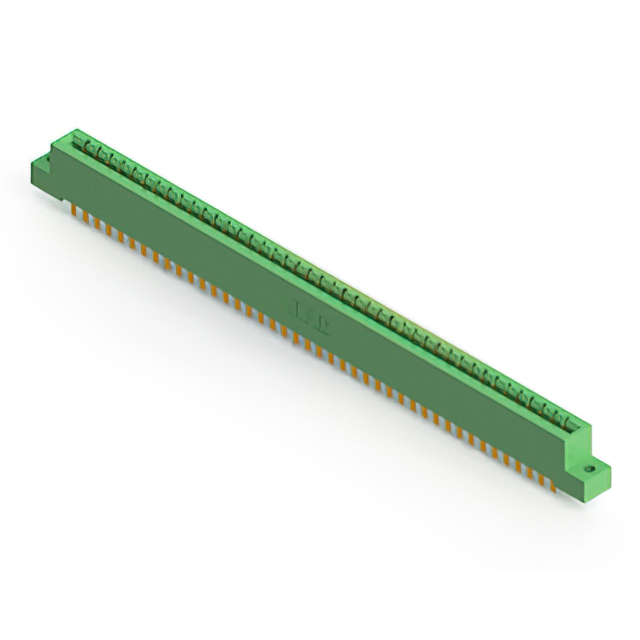

CONN EDGE DUAL FMALE 84POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Gender | Number of Positions [custom] | Number of Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Card Type | Features | Color | Pitch | Pitch | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Solder | Copper Alloy | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | Dual | -40 C | 105 ░C | 42 | Female | 84 | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Non Specified - Dual Edge | Card Extender | Green | 3.96 mm | 0.156 in | Gold |
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.156 " | 3.96 mm | Solder | Copper Alloy | 0.25 Ám | 10 Áin | Through Hole | Dual | -40 C | 105 ░C | 42 | Female | 84 | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Non Specified - Dual Edge | Green | 3.96 mm | 0.156 in | Gold | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 4-40 Threaded Insert Top Mount Opening | Solder | Copper Alloy | 0.25 Ám | 10 Áin | Through Hole | Dual | -40 C | 105 ░C | 42 | Female | 84 | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Non Specified - Dual Edge | Green | 3.96 mm | 0.156 in | Gold | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.116 " | Floating Bobbin Top Mount Opening | 2.95 mm | Wire Wrap | Copper Alloy | 0.25 Ám | 10 Áin | Through Hole | Dual | -40 C | 105 ░C | 42 | Female | 84 | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Non Specified - Dual Edge | Green | 3.96 mm | 0.156 in | Gold | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Solder | Copper Alloy | 0.25 Ám | 10 Áin | Through Hole | Dual | -40 C | 105 ░C | 42 | Female | 84 | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Non Specified - Dual Edge | Green | 3.96 mm | 0.156 in | Gold | |
 EDAC Inc. | Polyester Thermoplastic | 2 | M3 Threaded Insert Top Mount Opening | Solder | Copper Alloy | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | Dual | -40 C | 105 ░C | 42 | Female | 84 | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Non Specified - Dual Edge | Card Extender | Green | 3.96 mm | 0.156 in | Gold | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.128 " | Side Mount Opening Unthreaded | 3.25 mm | Wire Wrap | Copper Alloy | 0.25 Ám | 10 Áin | Right Angle Through Hole | Dual | -40 C | 105 ░C | 42 | Female | 84 | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Non Specified - Dual Edge | Green | 3.96 mm | 0.156 in | Gold | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.128 " | 3.25 mm | Wire Wrap | Copper Alloy | 0.25 Ám | 10 Áin | Through Hole | Dual | -40 C | 105 ░C | 42 | Female | 84 | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Non Specified - Dual Edge | Green | 3.96 mm | 0.156 in | Gold | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Solder Eyelet(s) | Copper Alloy | 0.25 Ám | 10 Áin | Through Hole | Dual | -40 C | 105 ░C | 42 | Female | 84 | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Non Specified - Dual Edge | Green | 3.96 mm | 0.156 in | Gold | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.128 " | Side Mount Opening Unthreaded | 3.25 mm | Wire Wrap | Copper Alloy | 0.25 Ám | 10 Áin | Through Hole | Dual | -40 C | 105 ░C | 42 | Female | 84 | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Non Specified - Dual Edge | Green | 3.96 mm | 0.156 in | Gold |
