Ultra-Pod 110 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

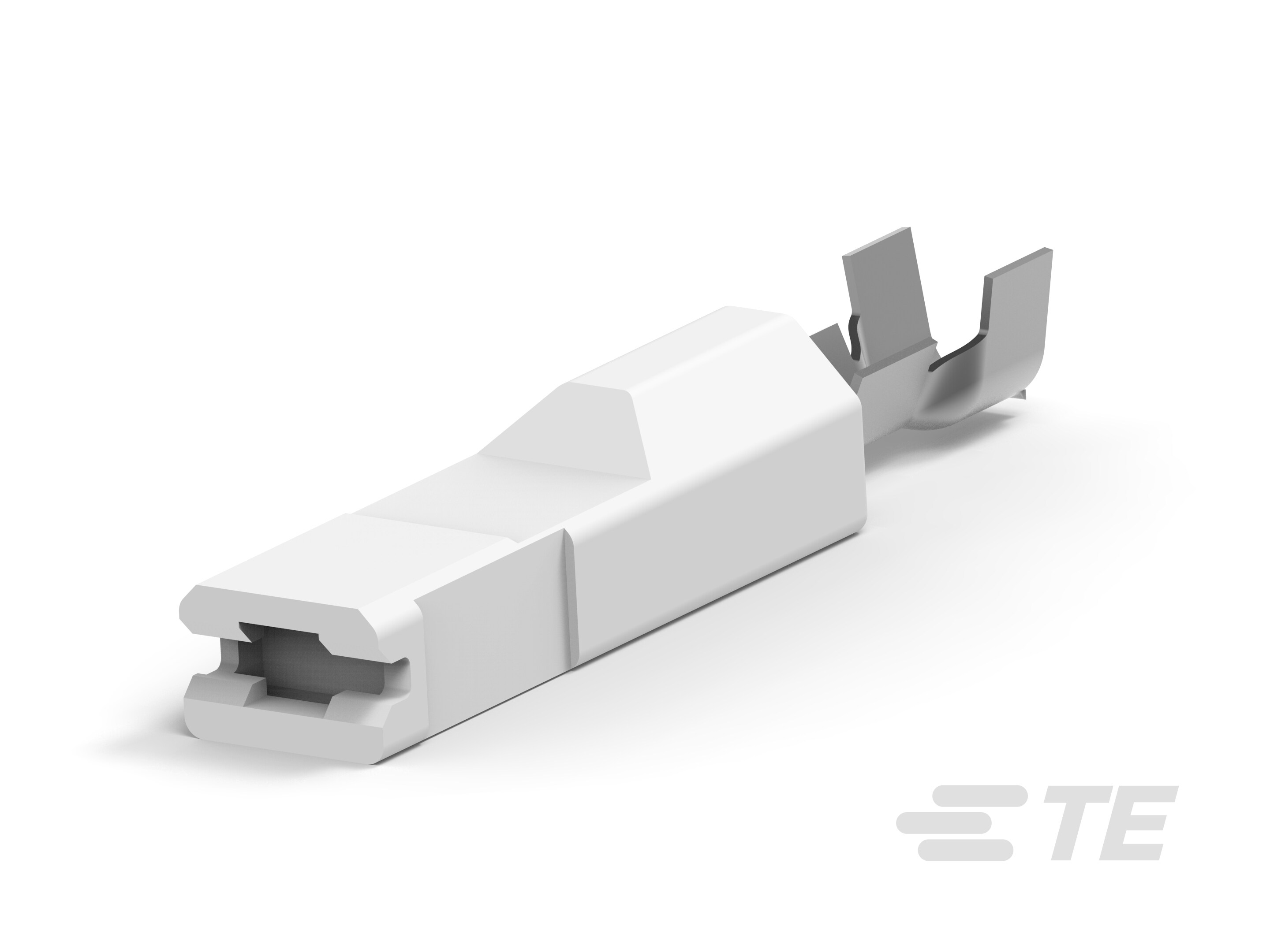

ULTRA-POD 110 ASSY REC 22-18 AWG TPBR
| Part | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Terminal Type | Tab Width | Tab Width | Contact Finish | Color | Insulation | Contact Material | Length - Overall [x] | Length - Overall [x] | Termination | Mounting Type | Gender | Wire Gauge [Max] | Wire Gauge [Min] | Tab Thickness | Tab Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.03 mm | 0.12 " | 0.08 in | 3.05 mm | Standard | 0.11 " | 2.79 mm | Tin | Natural | Fully Insulated | Brass | 29.98 mm | 1.18 in | Crimp | Free Hanging (In-Line) | Female | 22 AWG | 17.5 AWG | 0.81 mm | 0.032 in |
 TE Connectivity AMP Connectors | Standard | 0.11 " | 2.79 mm | Tin | White | Fully Insulated | Brass | 29.98 mm | 1.18 in | Crimp | Free Hanging (In-Line) | Female | 22 AWG | 17.5 AWG | 0.81 mm | 0.032 in | ||||
 TE Connectivity AMP Connectors | 2.03 mm | 0.12 " | 0.08 in | 3.05 mm | Standard | 0.11 " | 2.79 mm | Tin | Black | Fully Insulated | Brass | 29.98 mm | 1.18 in | Crimp | Free Hanging (In-Line) | Female | 22 AWG | 17.5 AWG | 0.51 mm | 0.02 in |
