PA4R Series

Manufacturer: E-Switch

Catalog

SWITCH PUSHBUTTON SPST 16A 125V

Part	Electrical Life	Voltage Rating - AC	Actuator Type	Type	Actuator Marking	Switch Function	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Circuit	Color - Actuator/Cap	Ingress Protection	Current Rating (Amps)	Illumination Type, Color [custom]	Illumination Type, Color [custom]	Illumination Voltage (Nominal)	Illumination Type, Color
E-Switch PA4R11C1100	10000 Cycles	125 V	Button Rectangular Rubber Cap	Standard	No Marking	Off-On	Quick Connect	19 mm	13 mm	Panel Mount Snap-In	SPST	Black	Water Resistant	16 A

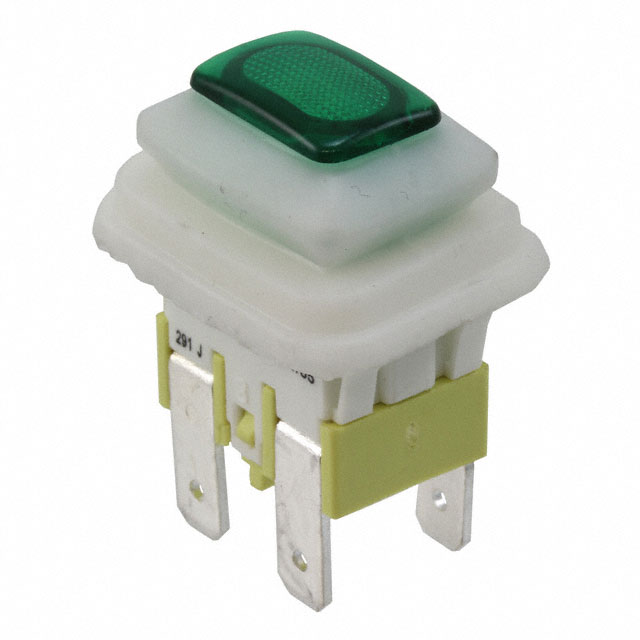

E-Switch PA4R12C2000-136	10000 Cycles	125 V	Button Rectangular Rubber Cap	Illuminated Standard	No Marking	Off-On	Quick Connect	19 mm	13 mm	Panel Mount Snap-In	DPST	Green	Water Resistant	16 A	Neon	Green	125 VAC

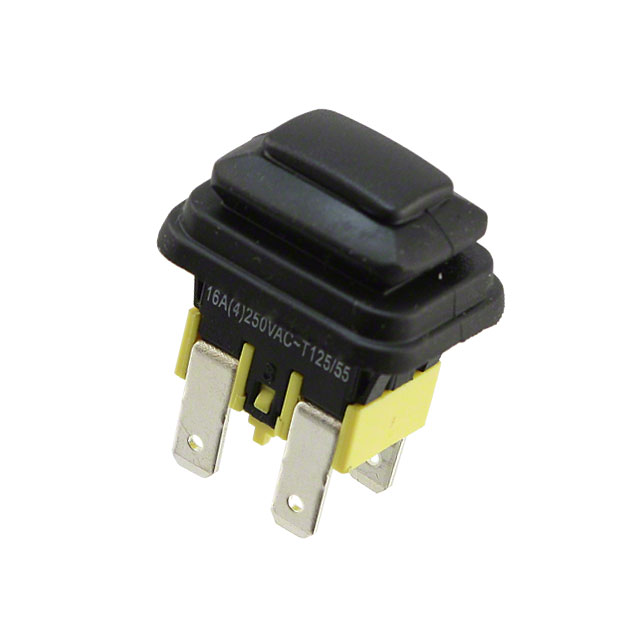

E-Switch PA4R12C1100	10000 Cycles	125 V	Button Rectangular Rubber Cap	Standard	No Marking	Off-On	Quick Connect	19 mm	13 mm	Panel Mount Snap-In	DPST	Black	Water Resistant	16 A

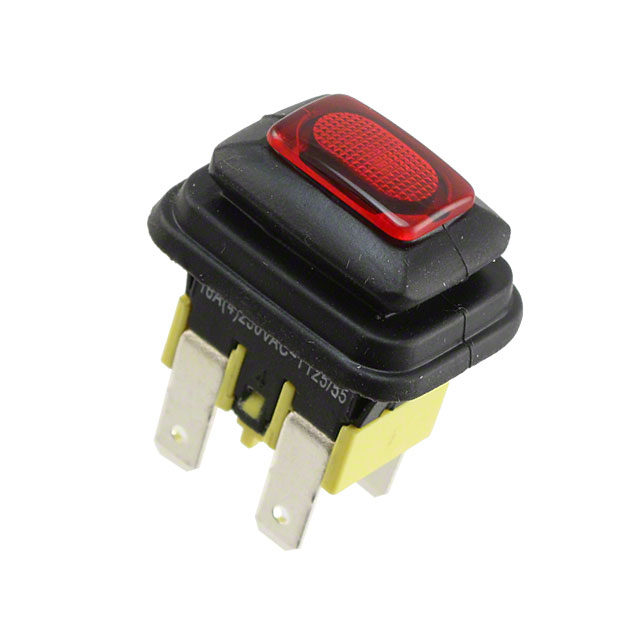

E-Switch PA4R12C1000-116	10000 Cycles	125 V	Button Rectangular Rubber Cap	Illuminated Standard	No Marking	Off-On	Quick Connect	19 mm	13 mm	Panel Mount Snap-In	DPST	Red	Water Resistant	16 A			125 VAC	Neon Red
E-Switch PA4R12C1000-137	10000 Cycles	125 V	Button Rectangular Rubber Cap	Illuminated Standard	No Marking	Off-On	Quick Connect	19 mm	13 mm	Panel Mount Snap-In	DPST	Green	Water Resistant	16 A	Neon	Green	250 VAC

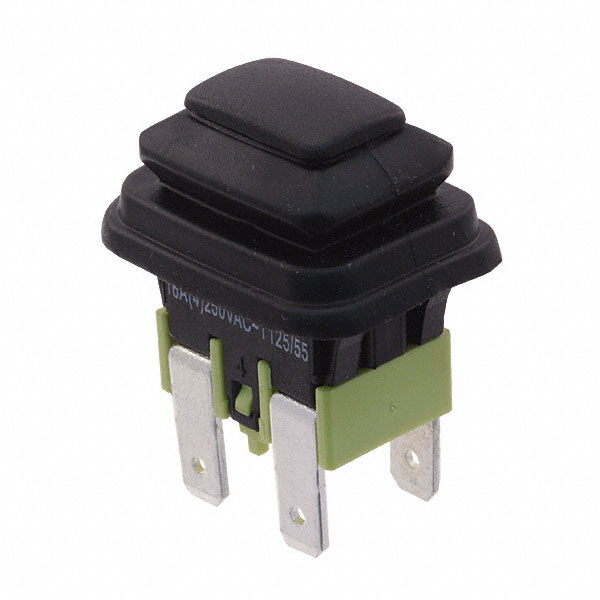

E-Switch PA4R1EC1100	10000 Cycles	125 V	Button Rectangular Rubber Cap	Standard	No Marking	Off-Mom	Quick Connect	19 mm	13 mm	Panel Mount Snap-In	DPST-NO	Black	Water Resistant	16 A
E-Switch PA4R12C1000-127	10000 Cycles	125 V	Button Rectangular Rubber Cap	Illuminated Standard	No Marking	Off-On	Quick Connect	19 mm	13 mm	Panel Mount Snap-In	DPST	Amber	Water Resistant	16 A			250 VAC	Neon Amber
E-Switch PA4R14C1000-114	10000 Cycles	125 V	Button Rectangular Rubber Cap	Illuminated Standard	No Marking	Off-Mom	Quick Connect	19 mm	13 mm	Panel Mount Snap-In	SPST-NO	Red	Water Resistant	16 A			12 VAC/DC	Incandescent Red
