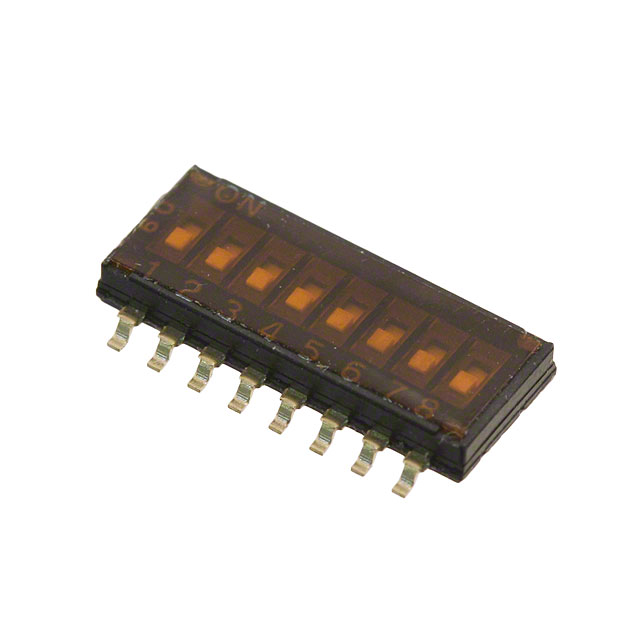

KAN1108 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Length [x] | Length | Electrical Life | Body Material | Mechanical Life | Current Rating (Amps) | Mounting Type | Washable | Pitch | Pitch | Pitch | Termination Style | Contact Finish | Height Above Board [z] | Height Above Board [z] | Actuator Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Number of Positions | Voltage Rating | Actuator Level | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.448 in | 11.39 mm | 2000 Steps | Polyphenylene Sulfide (PPS) | 2000 Cycles | 25 mA | Surface Mount | 0.05 " | 1.27 mm | Half | Gull Wing | Gold | 1.6 mm | 0.063 in | Slide (Standard) | Copper Alloy | 85 °C | -40 C | SPST | 8 | 24 VDC | Flush Recessed | ||
 E-Switch | 0.448 in | 11.39 mm | 2000 Steps | Polyphenylene Sulfide (PPS) | 2000 Cycles | 25 mA | Surface Mount | 0.05 " | 1.27 mm | Half | Gull Wing | Gold | 1.6 mm | 0.063 in | Slide (Standard) | Copper Alloy | 85 °C | -40 C | SPST | 8 | 24 VDC | Flush Recessed | Tape Seal |
