AUB0912 Series

Catalog

FAN AXIAL 92X25.4MM 12VDC

Part	Material - Frame	Lifetime @ Temp.	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Fan Type	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Power (Watts)	Bearing Type	Noise	Approval Agency	RPM	Static Pressure	Static Pressure	Width [y]	Termination	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	Weight [custom]	Weight [custom]	Features
Delta Electronics AUB0912H-A	Plastic	40 °C 50000 Hrs	0.21 A	5 VDC	13.8 VDC	Plastic	Tubeaxial	92 mm	92 mm	12 VDC	2.52 W	Superflo	37 dB	CE CSA UL VDE	2800 RPM	0.191 in H2O	47.6 Pa	25.4 mm	2 Wire Leads	121.11 g	0.267 lb	-10 °C	60 °C	1.68 m³/min	59.9 CFM

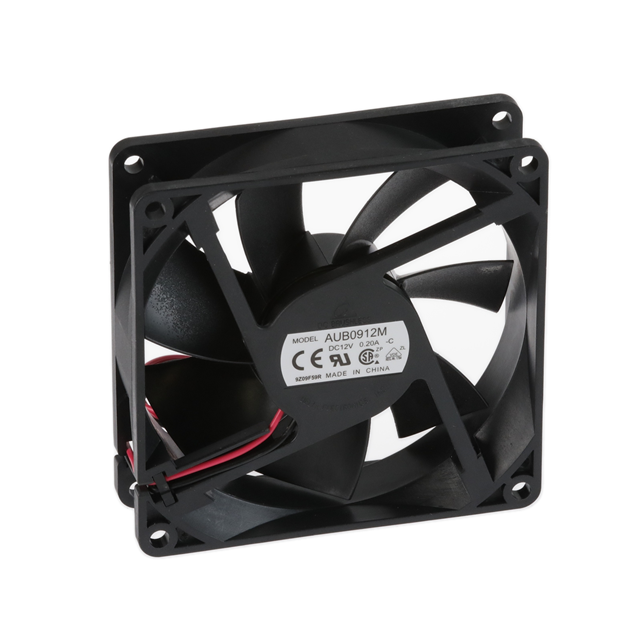

Delta Electronics AUB0912M-C	Plastic	40 °C 50000 Hrs	0.17 A	7 V	13.8 VDC	Plastic	Tubeaxial	92 mm	92 mm	12 VDC		Superflo	33 dB(A)	CE CSA UL VDE	2400 RPM	0.127 in H2O	31.6 Pa	25.4 mm	2 Wire Leads			-10 °C	60 °C	1.31 mł/min	46.9 CFM	0.231 lb	104.78 g

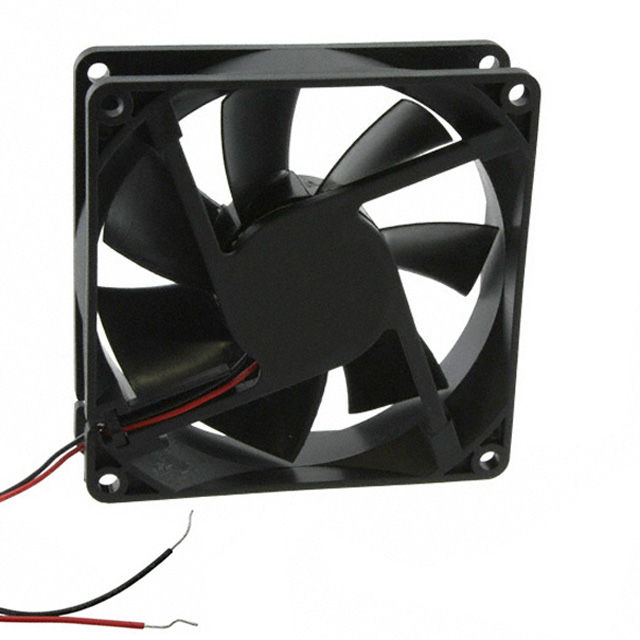

Delta Electronics AUB0912VH-CIT	Plastic	40 °C 50000 Hrs	400 mA	7 V	13.8 VDC	Plastic	Tubeaxial	92 mm	92 mm	12 VDC	4.8 W	Superflo	45 dB(A)	CE CSA UL VDE	3600 RPM	0.287 in H2O	71.5 Pa	25.4 mm	2 Wire Leads			-10 °C	60 °C	2.02 m³/min	72 CFM	0.231 lb	104.78 g
Delta Electronics AUB0912VH-AF00	Plastic					Plastic	Tubeaxial	92 mm	92 mm	12 VDC		Superflo		CE CSA UL VDE				10 mm	3 Wire Leads									Speed Sensor (Tach)
