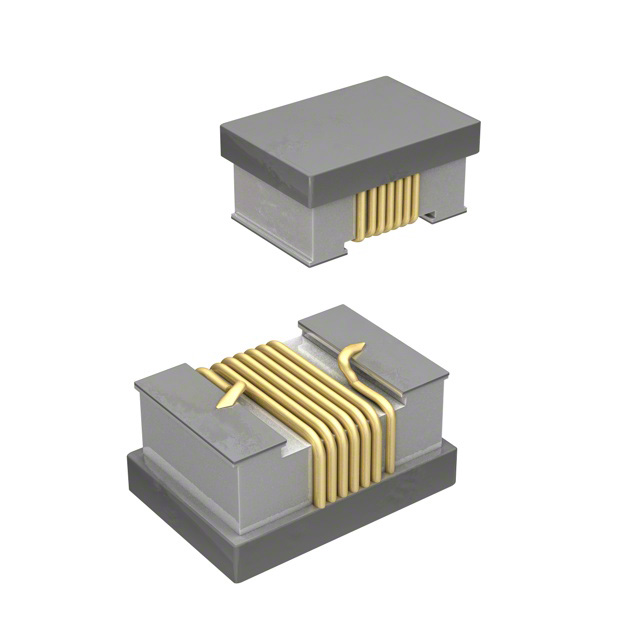

CW201212 Series

Catalog

FIXED IND 910NH 150MA 2.5OHM SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max)	Current Rating (Amps)	Material - Core	Inductance Frequency - Test	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Type	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance	Shielding	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. CW201212-R91J	125 °C	-40 C	0805	Surface Mount	5 %	0.059 "	1.5 mm	150 mA	Ferrite	22 MHz	2.5 Ohm	22	220 MHz	Drum Core Wirewound	0805 (2012 Metric)	0.083 "	1.5 mm	0.059 in	2.1 mm	910 nH	Unshielded
Bourns Inc. CW201212-5N6J	125 °C	-40 C	0805	Surface Mount	5 %	0.059 "	1.5 mm	600 mA	Ceramic	250 MHz	80 mOhm	1 GHz 60	5.8 GHz	Drum Core Wirewound	0805 (2012 Metric)	0.083 "	1.5 mm	0.059 in	2.1 mm	5.6 nH	Unshielded
Bourns Inc. CW201212-47NG	125 °C	-40 C	0805	Surface Mount	2 %	0.059 "	1.5 mm	0.5 A	Ceramic	200 MHz	150 mOhm		1.7 GHz	Drum Core Wirewound	0805 (2012 Metric)	0.083 "	1.5 mm	0.059 in	2.1 mm	47 nH	Unshielded	60	500 MHz
Bourns Inc. CW201212-R15J	125 °C	-40 C	0805	Surface Mount	5 %	0.059 "	1.5 mm	400 mA	Ceramic	100 MHz	670 mOhm	50 250 MHz	950 MHz	Drum Core Wirewound	0805 (2012 Metric)	0.083 "	1.5 mm	0.059 in	2.1 mm	150 nH	Unshielded
Bourns Inc. CW201212-39NJ	125 °C	-40 C	0805	Surface Mount	5 %	0.059 "	1.5 mm	0.5 A	Ceramic	250 MHz	180 mOhm		2.1 GHz	Drum Core Wirewound	0805 (2012 Metric)	0.083 "	1.5 mm	0.059 in	2.1 mm	39 nH	Unshielded	60	500 MHz
Bourns Inc. CW201212-R47J	125 °C	-40 C	0805	Surface Mount	5 %	0.059 "	1.5 mm	0.25 A	Ferrite	250 MHz	1.72 Ohm	33 100 MHz	375 MHz	Drum Core Wirewound	0805 (2012 Metric)	0.083 "	1.5 mm	0.059 in	2.1 mm	470 nH	Unshielded
Bourns Inc. CW201212-R68J	125 °C	-40 C	0805	Surface Mount	5 %	0.059 "	1.5 mm	190 mA	Ferrite	25 MHz	2.05 Ohm	23 50 MHz	270 MHz	Drum Core Wirewound	0805 (2012 Metric)	0.083 "	1.5 mm	0.059 in	2.1 mm	0.68 µH	Unshielded
Bourns Inc. CW201212-22NG	125 °C	-40 C	0805	Surface Mount	2 %	0.059 "	1.5 mm	600 mA	Ceramic	250 MHz	100 mOhm		3.3 GHz	Drum Core Wirewound	0805 (2012 Metric)	0.083 "	1.5 mm	0.059 in	2.1 mm	22 nH	Unshielded	60	500 MHz
Bourns Inc. CW201212-22NJ	125 °C	-40 C	0805	Surface Mount	5 %	0.059 "	1.5 mm	600 mA	Ceramic	250 MHz	100 mOhm		3.3 GHz	Drum Core Wirewound	0805 (2012 Metric)	0.083 "	1.5 mm	0.059 in	2.1 mm	22 nH	Unshielded	60	500 MHz
Bourns Inc. CW201212-2N2J	125 °C	-40 C	0805	Surface Mount	5 %	0.059 "	1.5 mm	600 mA	Ceramic	250 MHz	60 mOhm		6 GHz	Drum Core Wirewound	0805 (2012 Metric)	0.083 "	1.5 mm	0.059 in	2.1 mm		Unshielded	50		1 GHz
