851-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN RCPT 42POS 0.05 GOLD PCB

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Material	Contact Shape	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Material Flammability Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Fastening Type	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Connector Type	Number of Positions	Contact Type	Insulation Height	Insulation Height	Number of Positions [custom]
Mill-Max Manufacturing Corp. 851-43-042-10-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Solder	0.76 Ám	30 Áin	Black	Tin	2.51 mm	0.099 in	All	UL94 V-0	3 A	-55 C	125 °C	1	Push-Pull	4.1 mm	0.161 in	Gold	1.27 mm	0.05 in	Through Hole	Receptacle	42	Female Socket

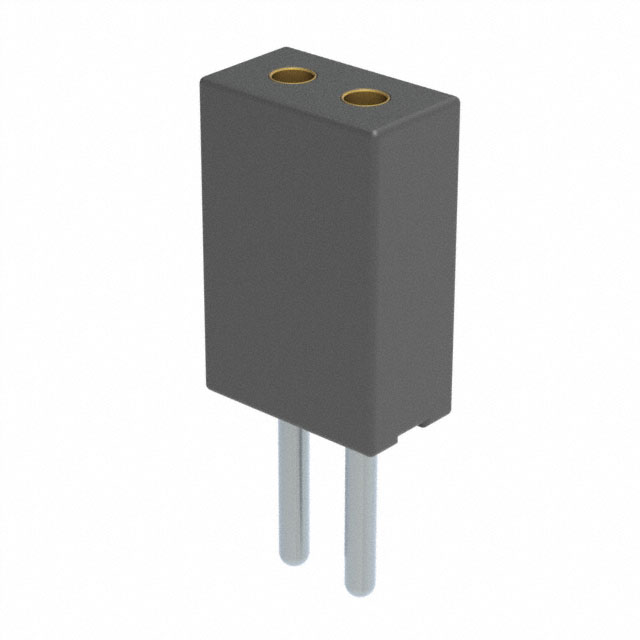

Mill-Max Manufacturing Corp. 851-43-002-10-002000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Solder	0.76 Ám	30 Áin	Black	Tin	2.92 mm	0.115 in	All	UL94 V-0	3 A	-55 C	125 °C	1	Push-Pull	4.7 mm	0.185 in	Gold	1.27 mm	0.05 in	Through Hole	Receptacle	2	Female Socket

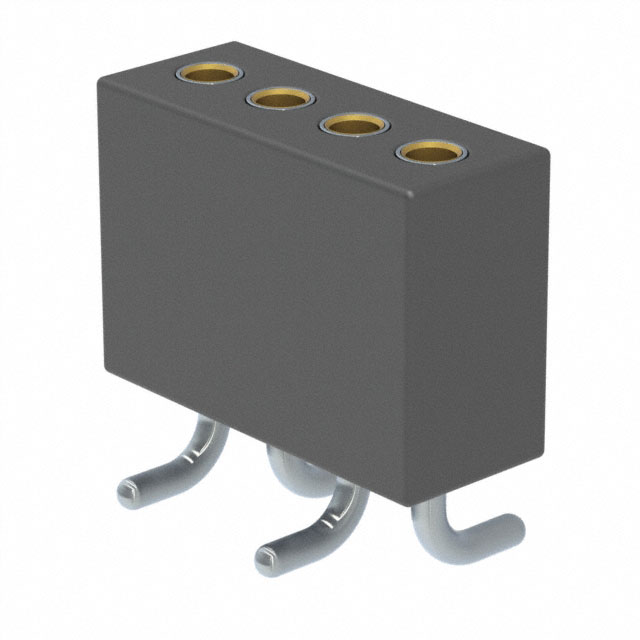

Mill-Max Manufacturing Corp. 851-43-004-30-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Solder	0.76 Ám	30 Áin	Black	Tin			All	UL94 V-0	3 A	-55 C	125 °C	1	Push-Pull			Gold	1.27 mm	0.05 in	Surface Mount	Receptacle	4	Female Socket	5.25 mm	0.207 in
Mill-Max Manufacturing Corp. 851-43-031-10-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Solder	0.76 Ám	30 Áin	Black	Tin	2.51 mm	0.099 in	All	UL94 V-0	3 A	-55 C	125 °C	1	Push-Pull	4.1 mm	0.161 in	Gold	1.27 mm	0.05 in	Through Hole	Receptacle		Female Socket			31
Mill-Max Manufacturing Corp. 851-43-016-10-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Solder	0.76 Ám	30 Áin	Black	Tin	2.51 mm	0.099 in	All	UL94 V-0	3 A	-55 C	125 °C	1	Push-Pull	4.1 mm	0.161 in	Gold	1.27 mm	0.05 in	Through Hole	Receptacle	16	Female Socket
Mill-Max Manufacturing Corp. 851-43-002-10-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Solder	0.76 Ám	30 Áin	Black	Tin	2.51 mm	0.099 in	All	UL94 V-0	3 A	-55 C	125 °C	1	Push-Pull	4.1 mm	0.161 in	Gold	1.27 mm	0.05 in	Through Hole	Receptacle	2	Female Socket
Mill-Max Manufacturing Corp. 851-43-074-10-002000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Solder	0.76 Ám	30 Áin	Black	Tin	2.92 mm	0.115 in	All	UL94 V-0	3 A	-55 C	125 °C	1	Push-Pull	4.7 mm	0.185 in	Gold	1.27 mm	0.05 in	Through Hole	Receptacle	74	Female Socket

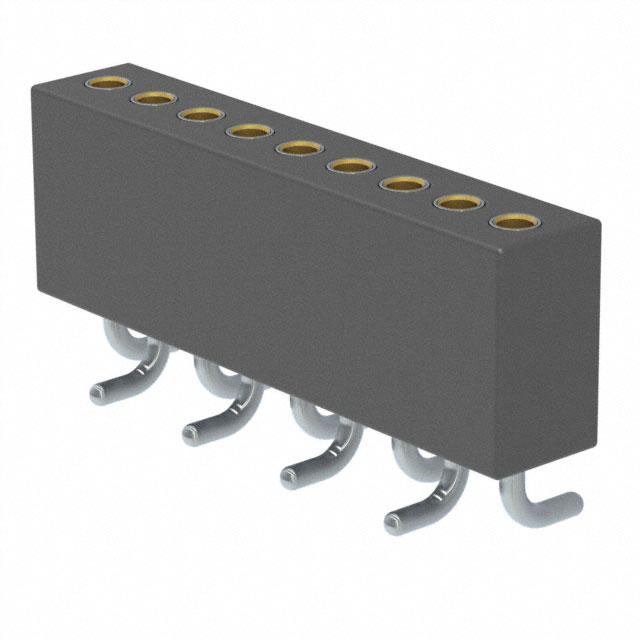

Mill-Max Manufacturing Corp. 851-43-009-30-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Solder	0.76 Ám	30 Áin	Black	Tin			All	UL94 V-0	3 A	-55 C	125 °C	1	Push-Pull			Gold	1.27 mm	0.05 in	Surface Mount	Receptacle	9	Female Socket	5.25 mm	0.207 in
Mill-Max Manufacturing Corp. 851-43-040-10-001000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Solder	0.76 Ám	30 Áin	Black	Tin	2.51 mm	0.099 in	All	UL94 V-0	3 A	-55 C	125 °C	1	Push-Pull	4.1 mm	0.161 in	Gold	1.27 mm	0.05 in	Through Hole	Receptacle	40	Female Socket
Mill-Max Manufacturing Corp. 851-43-024-10-011000	200 µin	5.08 µm	Nylon 4/6 Polyamide (PA46)	Brass Alloy	Circular	Solder	0.76 Ám	30 Áin	Black	Tin	4.98 mm	0.196 in	All					1	Push-Pull	4.1 mm	0.161 in	Gold	1.27 mm	0.05 in	Through Hole	Receptacle	24	Female Socket
