9802 Series
Manufacturer: Belden Inc.
Beta
⌘K

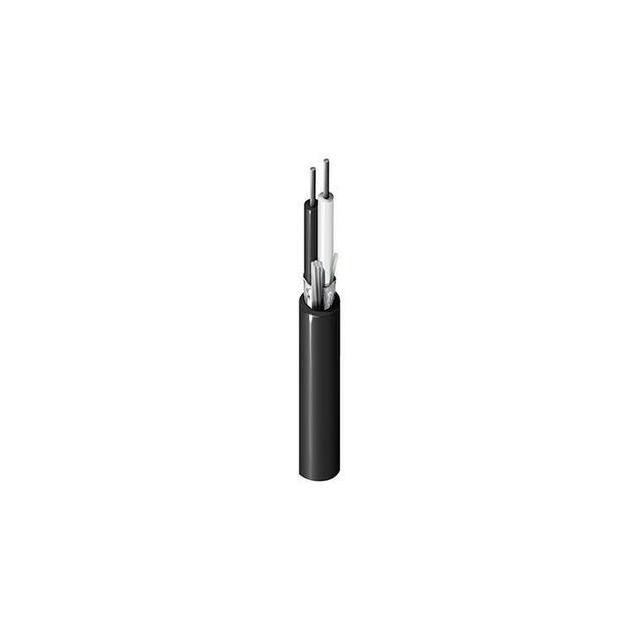

CABLE 2COND 20AWG BLK SHLD
| Part | Shield Material | Shield Coverage | Conductor Insulation | Wire Gauge | Usage | Features | Shield Type | Jacket (Insulation) Material | Length | Length | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Polypropylene (PP) | 20 AWG | Audio Control Instrumentation | Drain Wire | Foil | High Density Polyethylene (HDPE) | 152.4 m | 500 ft | 2 | 80 °C | -40 C | Black | 0.19 in | 4.83 mm | Solid | 0.035 in | 0.889 mm | Multi-Conductor | Copper Tinned |
