T8AN6 Series

Catalog

PHOTO SEN 50MM NPN

Part	Ingress Protection	Response Time	Sensing Method	Cable Length	Cable Length	Light Source	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Sensing Distance	Sensing Distance	Voltage - Supply [Min]	Voltage - Supply [Max]	Connection Method
BANNER ENGINEERING T8AN6D50	IEC IEC IP67 IP67 NEMA 6P	1 ms	Diffuse	78.74 "	2 m	Red LED	55 °C	-20 ░C	NPN - Light-ON	5 cm	1.969 in	10 VDC	30 VDC	Cable with Connector
BANNER ENGINEERING T8AN6D100	IEC IEC IP67 IP67 NEMA 6P	1 ms	Diffuse	78.74 "	2 m	Red LED	55 °C	-20 ░C	NPN - Light-ON	10 cm	3.937 in	10 VDC	30 VDC	Cable with Connector
BANNER ENGINEERING T8AN6RQ	IEC IEC IP67 IP67 NEMA 6P	1 ms	Through-Beam	78.74 "	2 m	Red LED	55 °C	-20 ░C	NPN - Light-ON	2 m	78.74 in	10 VDC	30 VDC	Cable with Connector

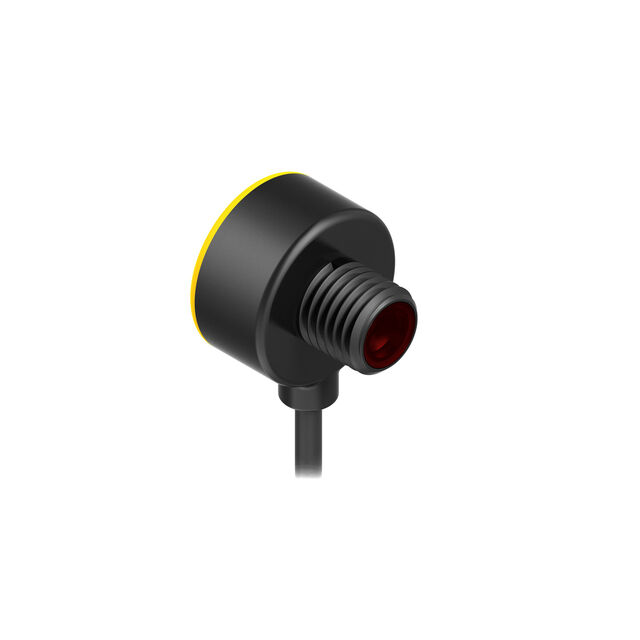

BANNER ENGINEERING T8AN6R	IEC IEC IP67 IP67 NEMA 6P	1 ms	Through-Beam	78.74 "	2 m	Red LED	55 °C	-20 ░C	NPN - Light-ON	2 m	78.74 in	10 VDC	30 VDC	Cable with Connector
