PRPC003 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 6POS 2.54MM

Part	Contact Finish Thickness - Post	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Contact Type	Contact Finish - Post	Insulation Material	Style	Connector Type	Insulation Height	Insulation Height	Fastening Type	Number of Positions	Number of Rows [custom]	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Finish - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Material	Number of Positions Loaded	Shrouding	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Termination	Contact Shape	Current Rating (Amps)	Overall Contact Length [x]	Overall Contact Length [x]	Number of Rows

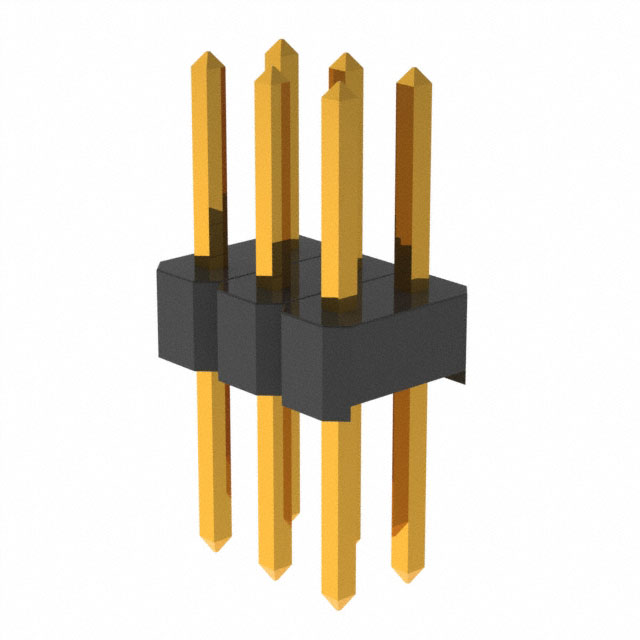

Sullins Connector Solutions PRPC003DABN-RC	Flash	Through Hole	0.1 in	2.54 mm	0.558 in	14.18 mm	Male Pin	Gold	Polybutylene Terephthalate (PBT)	Board to Board Cable	Header Breakaway	0.098 "	2.5 mm	Push-Pull	6	2	0.23 in	5.84 mm	Black	Gold	UL94 V-0	-40 C	105 ░C	0.1 "	2.54 mm	Brass	All	Unshrouded	Flash	5.84 mm	0.23 "	Solder	Square	3 A

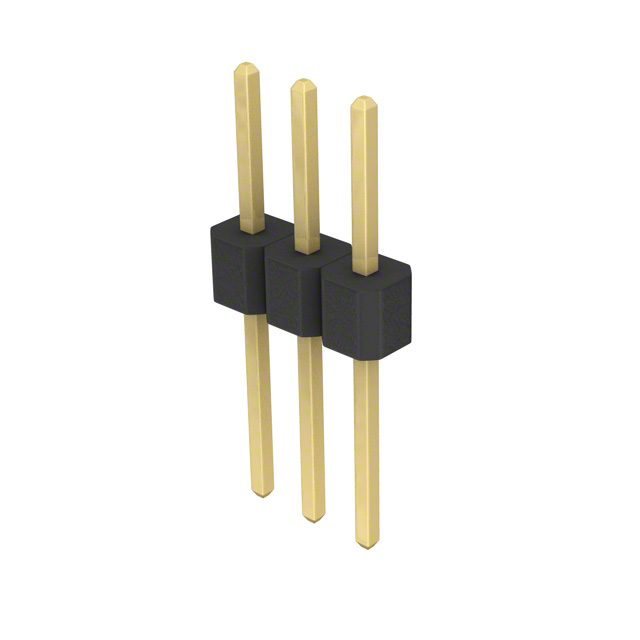

Sullins Connector Solutions PRPC003SACN-RC	Flash	Through Hole					Male Pin	Gold	Polybutylene Terephthalate (PBT)	Board to Board Cable	Header Breakaway	0.098 "	2.5 mm	Push-Pull			0.23 in	5.84 mm	Black	Gold	UL94 V-0	-40 C	105 ░C	0.1 "	2.54 mm	Brass	All	Unshrouded	Flash	8.13 mm	0.32 in	Solder	Square	3 A	0.648 in	16.47 mm	1

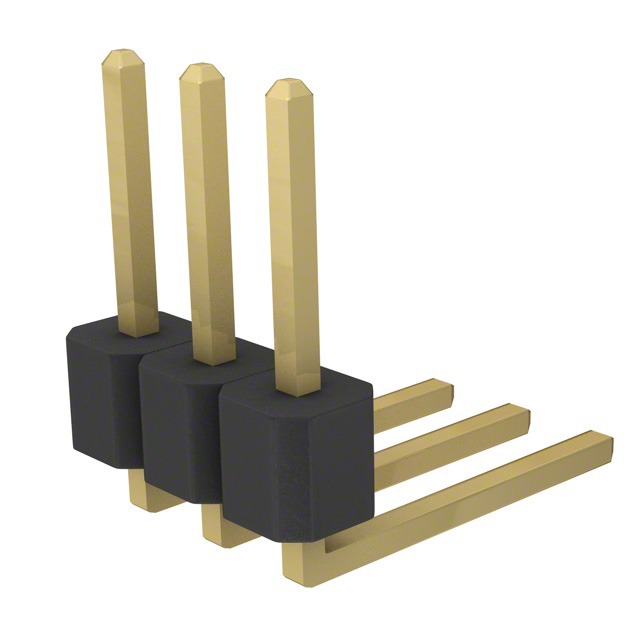

Sullins Connector Solutions PRPC003SBCN-M71RC	Flash	Right Angle Through Hole					Male Pin	Gold	Polybutylene Terephthalate (PBT)	Board to Board Cable	Header Breakaway	0.098 "	2.5 mm	Push-Pull			0.23 in	5.84 mm	Black	Gold	UL94 V-0	-40 C	105 ░C	0.1 "	2.54 mm	Brass	All	Unshrouded	Flash	8.13 mm	0.32 in	Solder	Square	3 A			1

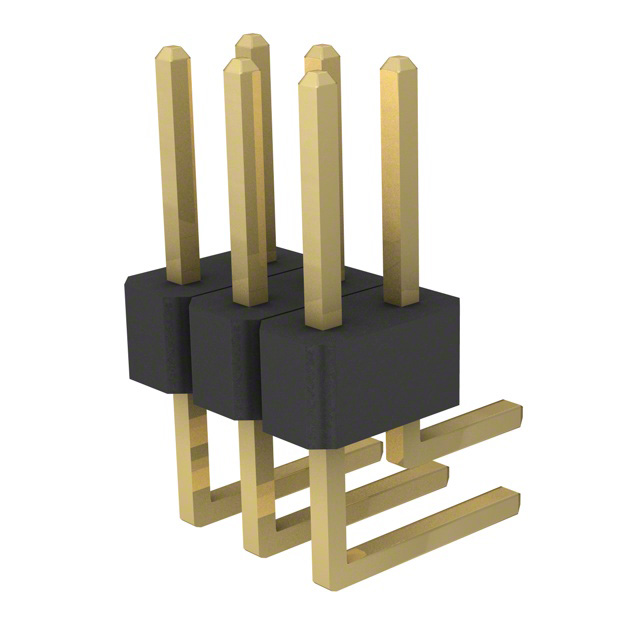

Sullins Connector Solutions PRPC003DBAN-M71RC	Flash	Right Angle Through Hole	0.1 in	2.54 mm			Male Pin	Gold	Polybutylene Terephthalate (PBT)	Board to Board Cable	Header Breakaway	0.197 "	5 mm	Push-Pull	6	2	0.23 in	5.84 mm	Black	Gold	UL94 V-0	-40 C	105 ░C	0.1 "	2.54 mm	Brass	All	Unshrouded	Flash	3.05 mm	0.12 in	Solder	Square	3 A

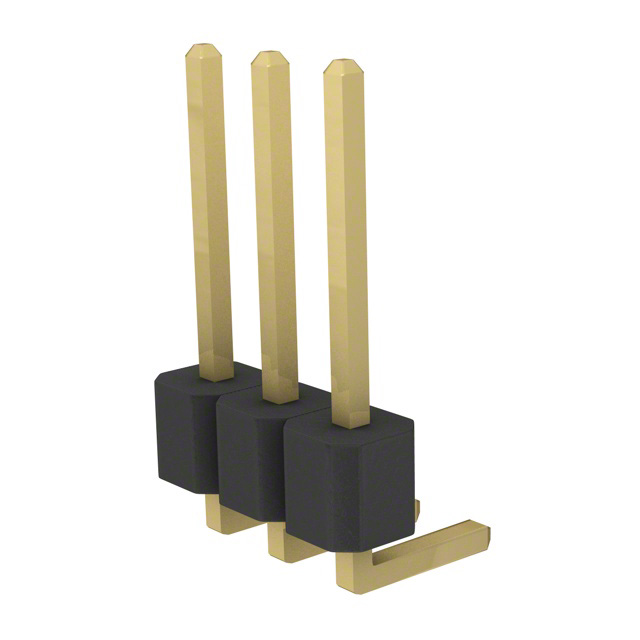

Sullins Connector Solutions PRPC003SGAN-M71RC	Flash	Right Angle Through Hole					Male Pin	Gold	Polybutylene Terephthalate (PBT)	Board to Board Cable	Header Breakaway	0.098 "	2.5 mm	Push-Pull			0.318 in	8.08 mm	Black	Gold	UL94 V-0	-40 C	105 ░C	0.1 "	2.54 mm	Brass	All	Unshrouded	Flash	3.05 mm	0.12 in	Solder	Square	3 A			1

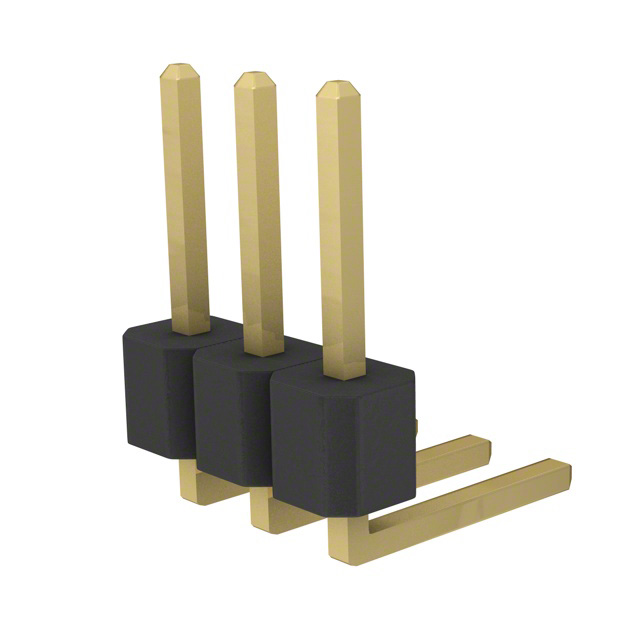

Sullins Connector Solutions PRPC003SBBN-M71RC	Flash	Right Angle Through Hole					Male Pin	Gold	Polybutylene Terephthalate (PBT)	Board to Board Cable	Header Breakaway	0.098 "	2.5 mm	Push-Pull			0.23 in	5.84 mm	Black	Gold	UL94 V-0	-40 C	105 ░C	0.1 "	2.54 mm	Brass	All	Unshrouded	Flash	5.58 mm	0.22 in	Solder	Square	3 A			1
Sullins Connector Solutions PRPC003SFAN-RC	Flash	Through Hole					Male Pin	Gold	Polybutylene Terephthalate (PBT)	Board to Board Cable	Header Breakaway	0.098 "	2.5 mm	Push-Pull			0.318 in	8.08 mm	Black	Gold	UL94 V-0	-40 C	105 ░C	0.1 "	2.54 mm	Brass	All	Unshrouded	Flash	3.05 mm	0.12 in	Solder	Square	3 A	0.537 in	13.63 mm	1

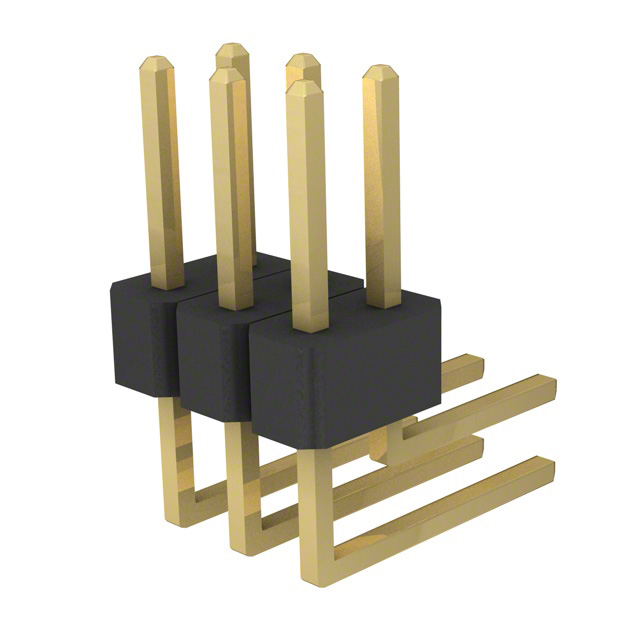

Sullins Connector Solutions PRPC003DBBN-M71RC	Flash	Right Angle Through Hole	0.1 in	2.54 mm			Male Pin	Gold	Polybutylene Terephthalate (PBT)	Board to Board Cable	Header Breakaway	0.197 "	5 mm	Push-Pull	6	2	0.23 in	5.84 mm	Black	Gold	UL94 V-0	-40 C	105 ░C	0.1 "	2.54 mm	Brass	All	Unshrouded	Flash	5.58 mm	0.22 in	Solder	Square	3 A
