055935 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 11POS 2MM

Part	Contact Finish - Post	Connector Type	Insulation Material	Termination	Number of Positions	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Length - Post	Contact Length - Post [x]	Applications	Number of Rows	Contact Type	Mounting Type	Style	Shrouding	Contact Shape	Features
Molex 0559351130	Tin	Header	Polybutylene Terephthalate (PBT)	Kinked Pin Solder	11	All	0.079 in	2 mm	Latch Holder	0.264 in	6.7 mm	0.144 in	3.66 mm	Natural	3.2 mm	0.126 in	General Purpose Industrial Medical	1	Male Pin	Through Hole Right Angle	Board to Cable/Wire	Shrouded - 4 Wall	Square

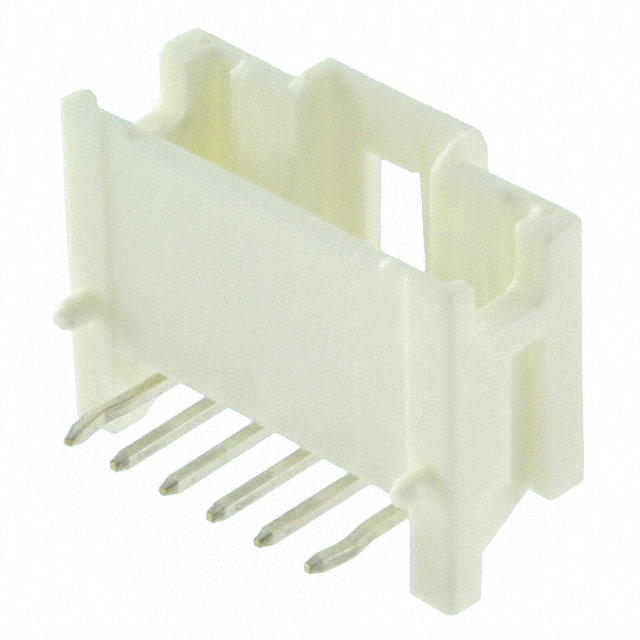

Molex 0559350610	Tin	Header	Polybutylene Terephthalate (PBT)	Kinked Pin Solder	6	All	0.079 in	2 mm	Latch Holder	0.264 in	6.7 mm	0.144 in	3.66 mm	Natural	3.2 mm	0.126 in	General Purpose Industrial Medical	1	Male Pin	Through Hole Right Angle	Board to Cable/Wire	Shrouded - 4 Wall	Square	Board Guide
Molex 0559351530	Tin	Header	Polybutylene Terephthalate (PBT)	Kinked Pin Solder	15	All	0.079 in	2 mm	Latch Holder	0.264 in	6.7 mm	0.144 in	3.66 mm	Natural	3.2 mm	0.126 in	General Purpose Industrial Medical	1	Male Pin	Through Hole Right Angle	Board to Cable/Wire	Shrouded - 4 Wall	Square
Molex 0559350631
Molex 0559350930	Tin	Header	Polybutylene Terephthalate (PBT)	Kinked Pin Solder	9	All	0.079 in	2 mm	Latch Holder	0.264 in	6.7 mm	0.144 in	3.66 mm	Natural	3.2 mm	0.126 in	General Purpose Industrial Medical	1	Male Pin	Through Hole Right Angle	Board to Cable/Wire	Shrouded - 4 Wall	Square

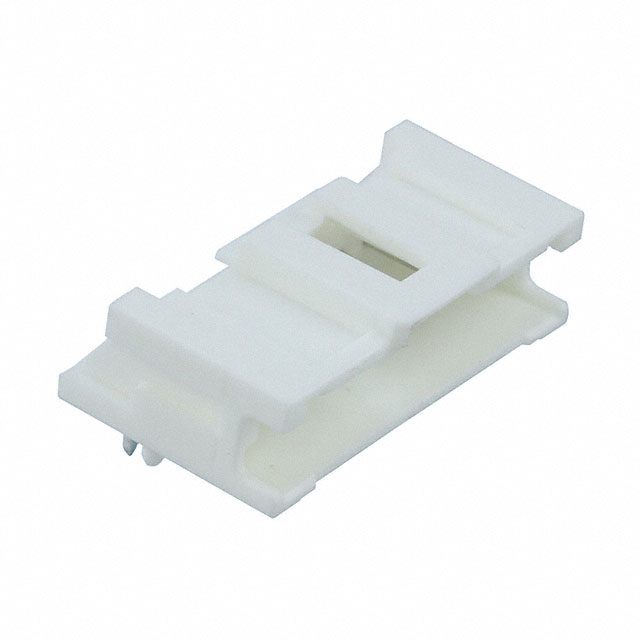

Molex 0559350810	Tin	Header	Polybutylene Terephthalate (PBT)	Kinked Pin Solder	8	All	0.079 in	2 mm	Latch Holder	0.264 in	6.7 mm	0.144 in	3.66 mm	Natural	3.2 mm	0.126 in	General Purpose Industrial Medical	1	Male Pin	Through Hole Right Angle	Board to Cable/Wire	Shrouded - 4 Wall	Square	Board Guide
Molex 0559351430	Tin	Header	Polybutylene Terephthalate (PBT)	Kinked Pin Solder	14	All	0.079 in	2 mm	Latch Holder	0.264 in	6.7 mm	0.144 in	3.66 mm	Natural	3.2 mm	0.126 in	General Purpose Industrial Medical	1	Male Pin	Through Hole Right Angle	Board to Cable/Wire	Shrouded - 4 Wall	Square

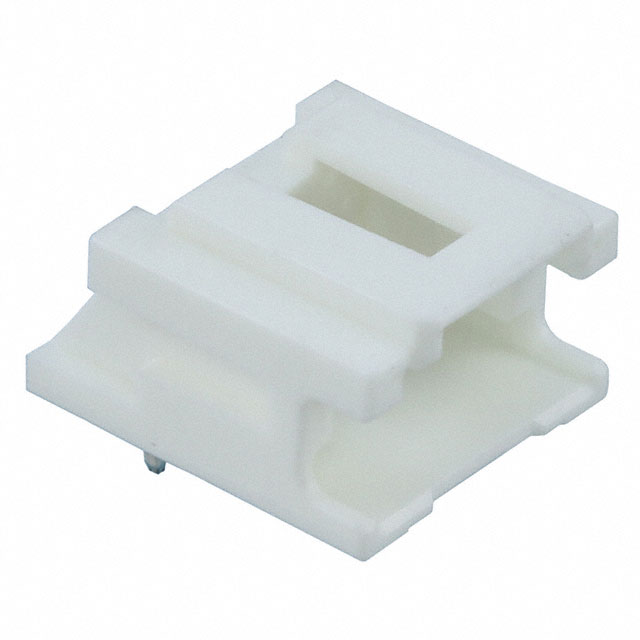

Molex 0559350330	Tin	Header	Polybutylene Terephthalate (PBT)	Kinked Pin Solder		All	0.079 in	2 mm	Latch Holder	0.264 in	6.7 mm	0.144 in	3.66 mm	Natural	3.2 mm	0.126 in	General Purpose Industrial Medical	1	Male Pin	Through Hole Right Angle	Board to Cable/Wire	Shrouded - 4 Wall	Square

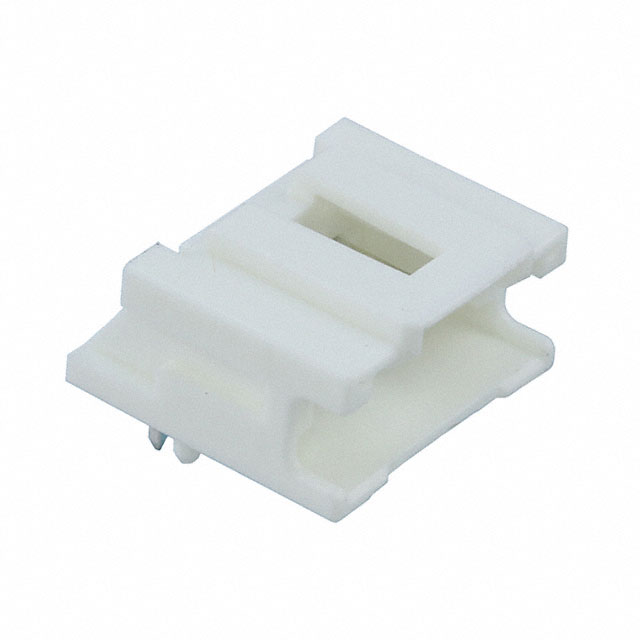

Molex 0559350410	Tin	Header	Polybutylene Terephthalate (PBT)	Kinked Pin Solder	4	All	0.079 in	2 mm	Latch Holder	0.264 in	6.7 mm	0.144 in	3.66 mm	Natural	3.2 mm	0.126 in	General Purpose Industrial Medical	1	Male Pin	Through Hole Right Angle	Board to Cable/Wire	Shrouded - 4 Wall	Square	Board Guide

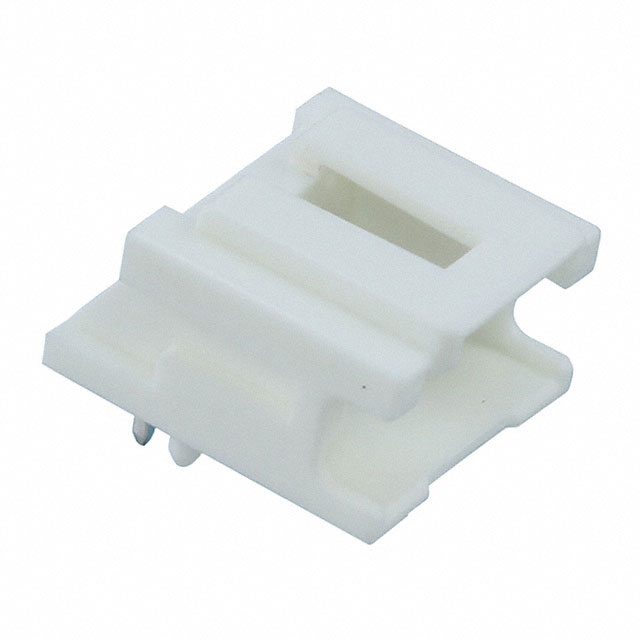

Molex 0559350310	Tin	Header	Polybutylene Terephthalate (PBT)	Kinked Pin Solder		All	0.079 in	2 mm	Latch Holder	0.264 in	6.7 mm	0.144 in	3.66 mm	Natural	3.2 mm	0.126 in	General Purpose Industrial Medical	1	Male Pin	Through Hole Right Angle	Board to Cable/Wire	Shrouded - 4 Wall	Square	Board Guide
