DLCBST Series

Catalog

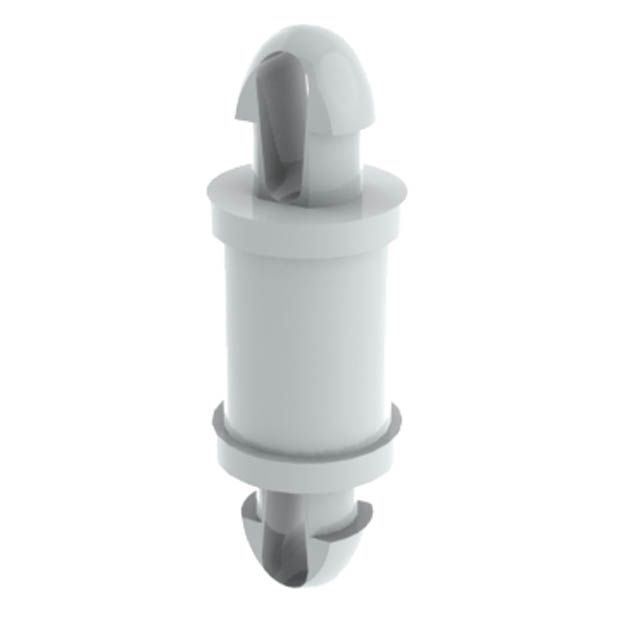

PCB SPACER SUPPORT, NYLON 6.6, 6.4MM

Part	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Holding Type	Between Board Height	Between Board Height	Length - Overall [x]	Length - Overall [x]	Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Panel Thickness [z]	Support Panel Thickness [z]	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Type	Between Board Height	Length - Overall
Essentra Components DLCBST-4-01	2.54 mm	0.1 in	Snap Lock	6.35 mm	0.25 in	0.538 in	13.66 mm	Nylon	2.54 mm	0.1 in	0.064 in	1.63 mm	1.63 mm	0.064 in	Snap Lock
Essentra Components DLCBST-7-01	2.54 mm	0.1 in	Snap Lock	0.438 in	11.13 mm	0.723 in	18.36 mm	Nylon	2.54 mm	0.1 in	0.064 in	1.63 mm	1.63 mm	0.064 in	Snap Lock	0.4375 "
Essentra Components DLCBST-5-01	2.54 mm	0.1 in	Snap Lock	0.313 in	7.95 mm	0.597 in	15.16 mm	Nylon	2.54 mm	0.1 in	0.064 in	1.63 mm	1.63 mm	0.064 in	Snap Lock	0.3125 in
Essentra Components DLCBST-10-01	2.54 mm	0.1 in	Snap Lock	0.625 in	15.88 mm	0.912 in	23.16 mm	Nylon	2.54 mm	0.1 in	0.064 in	1.63 mm	1.63 mm	0.064 in	Snap Lock	5 8
Essentra Components DLCBST-1-01	2.54 mm	0.1 in	Snap Lock	0.063 in	1.6 mm	0.349 "		Nylon	2.54 mm	0.1 in	0.064 in	1.63 mm	1.63 mm	0.064 in	Snap Lock	0.0625 in	8.86 mm

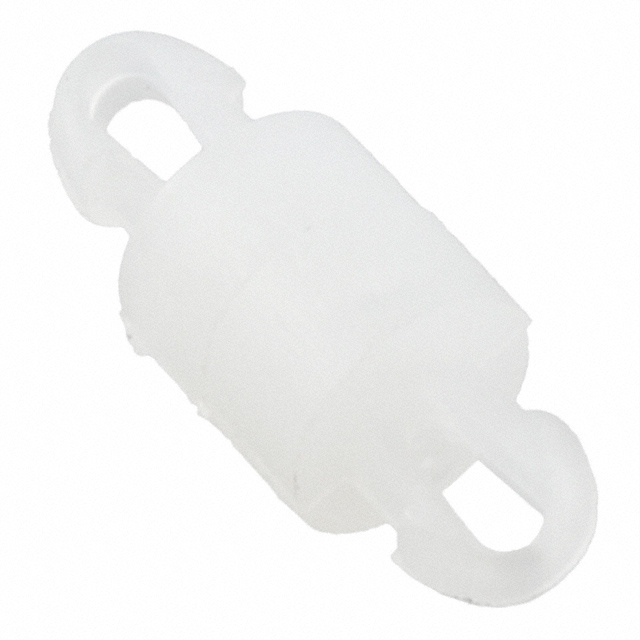

Essentra Components DLCBST-3-01	2.54 mm	0.1 in	Snap Lock	0.188 in	0.1875 in	0.475 in	12.06 mm	Nylon	2.54 mm	0.1 in	0.064 in	1.63 mm	1.63 mm	0.064 in	Snap Lock
Essentra Components DLCBST-2-01	2.54 mm	0.1 in	Snap Lock	0.125 in	3.18 mm	0.412 "	10.46 mm	Nylon	2.54 mm	0.1 in	0.064 in	1.63 mm	1.63 mm	0.064 in	Snap Lock	0.125 in
