G4015 Series

Catalog

FAN AXIAL 40X15MM BALL 5VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	Noise	Static Pressure	Static Pressure	Termination	Air Flow	Air Flow	Width [y]	Weight	Weight	Bearing Type	Approval Agency	Fan Type	Features	RPM
Mechatronics Fan Group G4015H05B-RSR	400 mA	Polybutylene Terephthalate (PBT)	40 mm	40 mm	5 V	29 dB(A)	72.2 Pa	0.29 in H2O	2 Wire Leads	8 CFM	0.224 mł/min	15 mm	0.051 lb	23.13 g	Ball	CE cUL TUV UL	Tubeaxial	Thermal Overload Protector (TOP)	8000 RPM
Mechatronics Fan Group G4015L12B-RSR		Polybutylene Terephthalate (PBT)	40 mm	40 mm	12 VDC	20 dB	17.4 Pa	0.07 in H2O	2 Wire Leads	4 CFM	0.112 m³/min	15 mm	0.051 lb	23.13 g	Ball	CE cUL TUV UL	Tubeaxial	Thermal Overload Protector (TOP)	4000 RPM

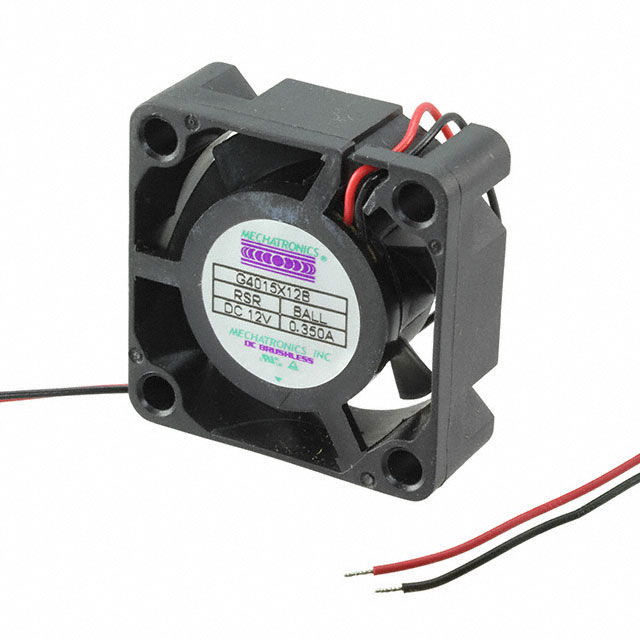

Mechatronics Fan Group G4015X12B-RSR	0.35 A	Polybutylene Terephthalate (PBT)	40 mm	40 mm	12 VDC	39 dB(A)	149.5 Pa	0.6 in H2O	2 Wire Leads	12 CFM	0.336 mł/min	15 mm	0.051 lb	23.13 g	Ball	CE cUL TUV UL	Tubeaxial	Thermal Overload Protector (TOP)	12000 RPM
Mechatronics Fan Group G4015E12B1-RSR	270 mA	Polybutylene Terephthalate (PBT)	40 mm	40 mm	12 VDC	35 dB	107.1 Pa	0.43 in H2O	3 Wire Leads	10 CFM	0.28 m³/min	15 mm	0.051 lb	23.13 g	Ball	CE cUL TUV UL	Tubeaxial	Speed Sensor (Tach) Thermal Overload Protector (TOP)	10000 RPM
Mechatronics Fan Group G4015E12B-RSR	270 mA	Polybutylene Terephthalate (PBT)	40 mm	40 mm	12 VDC	35 dB	107.1 Pa	0.43 in H2O	2 Wire Leads	10 CFM	0.28 m³/min	15 mm	0.051 lb	23.13 g	Ball	CE cUL TUV UL	Tubeaxial	Thermal Overload Protector (TOP)	10000 RPM
Mechatronics Fan Group G4015L05B2-RSR	0.2 A	Polybutylene Terephthalate (PBT)	40 mm	40 mm	5 V	20 dB	17.4 Pa	0.07 in H2O	3 Wire Leads	4 CFM	0.112 m³/min	15 mm	0.051 lb	23.13 g	Ball	CE cUL TUV UL	Tubeaxial	Locked Rotor Sensor Thermal Overload Protector (TOP)	4000 RPM
Mechatronics Fan Group G4015E24B-RSR	110 mA	Polybutylene Terephthalate (PBT)	40 mm	40 mm	24 VDC	35 dB	107.1 Pa	0.43 in H2O	2 Wire Leads	10 CFM	0.28 m³/min	15 mm	0.051 lb	23.13 g	Ball	CE cUL TUV UL	Tubeaxial	Thermal Overload Protector (TOP)	10000 RPM
Mechatronics Fan Group G4015M24B-RSR-CC	70 mA	Polybutylene Terephthalate (PBT)	40 mm	40 mm	24 VDC	23 dB(A)	39.8 Pa	0.16 in H2O	2 Wire Leads	6 CFM	0.168 mł/min	15 mm	0.051 lb	23.13 g	Ball	CE cUL TUV UL	Tubeaxial	Conformal Coating Thermal Overload Protector (TOP)	6000 RPM
Mechatronics Fan Group G4015M24B-RSR	70 mA	Polybutylene Terephthalate (PBT)	40 mm	40 mm	24 VDC	23 dB(A)	39.8 Pa	0.16 in H2O	2 Wire Leads	6 CFM	0.168 mł/min	15 mm	0.051 lb	23.13 g	Ball	CE cUL TUV UL	Tubeaxial	Thermal Overload Protector (TOP)	6000 RPM

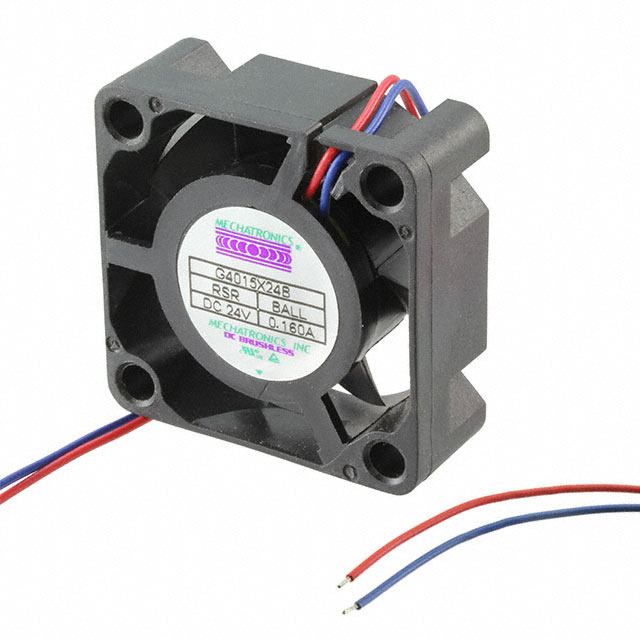

Mechatronics Fan Group G4015X24B-RSR		Polybutylene Terephthalate (PBT)	40 mm	40 mm	24 VDC	39 dB(A)	149.5 Pa	0.6 in H2O	2 Wire Leads	12 CFM	0.336 mł/min	15 mm	0.051 lb	23.13 g	Ball	CE cUL TUV UL	Tubeaxial	Thermal Overload Protector (TOP)	12000 RPM
