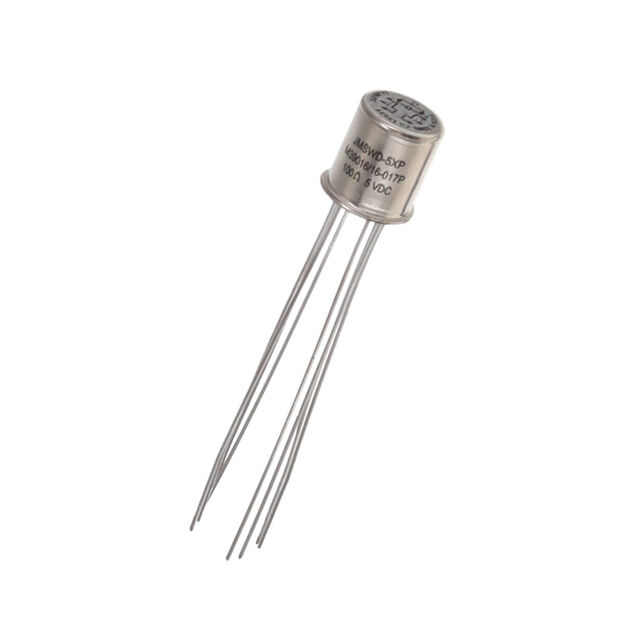

JMSWD Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
RELAY GENERAL PURPOSE DPDT 1A 9V
| Part | Must Operate Voltage | Contact Rating (Current) | Coil Current | Mounting Type | Switching Voltage | Termination Style | Seal Rating | Operate Time | Contact Material | Relay Type | Features | Must Release Voltage | Coil Type | Contact Form | Release Time | Load - Max Switching | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Resistance | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | 4.85 VDC | 1 A | 22.5 mA | Through Hole | 28 VDC 115 VAC | PC Pin | Sealed - Hermetically | 4 ms | Gold (Au) Silver Palladium (AgPd) | General Purpose | Diode | 0.55 VDC | Non Latching | DPDT (2 Form C) | 7.5 ms | 28 W 115 VA | 9 VDC | 125 °C | -65 ░C | 400 Ohms | ||
 TE Connectivity Aerospace, Defense and Marine | 2.6 VDC | 1 A | 50 mA | Through Hole | 28 VDC 115 VAC | PC Pin | Sealed - Hermetically | 4 ms | Gold (Au) Silver Palladium (AgPd) | General Purpose | Diode | 0.23 VDC | Non Latching | DPDT (2 Form C) | 7.5 ms | 28 W 115 VA | 5 VDC | 125 °C | -65 ░C | 100 Ohms | MIL-R-39016/16 | Military |
TE Connectivity Aerospace, Defense and Marine | 2.9 VDC | 1 A | 78.1 mA | Through Hole | 28 VDC 115 VAC | PC Pin | Sealed - Hermetically | 4 ms | Gold (Au) Silver Palladium (AgPd) | General Purpose | Diode | 0.8 VDC | Non Latching | DPDT (2 Form C) | 7.5 ms | 28 W 115 VA | 5 VDC | 125 °C | -65 ░C | 64 Ohms | ||
TE Connectivity Aerospace, Defense and Marine | 7 VDC | 1 A | 14.1 mA | Through Hole | 28 VDC 115 VAC | PC Pin | Sealed - Hermetically | 4 ms | Gold (Au) Silver Palladium (AgPd) | General Purpose | Diode | 0.64 VDC | Non Latching | DPDT (2 Form C) | 7.5 ms | 28 W 115 VA | 12 VDC | 125 °C | -65 ░C | 850 Ohms | MIL-R-39016/16 | Military |
TE Connectivity Aerospace, Defense and Marine | 20 VDC | 1 A | 5.5 mA | Through Hole | 28 VDC 115 VAC | PC Pin | Sealed - Hermetically | 4 ms | Gold (Au) Silver Palladium (AgPd) | General Purpose | Diode | 1.8 VDC | Non Latching | DPDT (2 Form C) | 7.5 ms | 28 W 115 VA | 36 VDC | 125 °C | -65 ░C | 6.5 kOhms | MIL-R-39016/16 | Military |
TE Connectivity Aerospace, Defense and Marine | 14 VDC | 1 A | Through Hole | 28 VDC 115 VAC | PC Pin | Sealed - Hermetically | 4 ms | Gold (Au) Silver Palladium (AgPd) | General Purpose | Diode | 1.4 VDC | Non Latching | DPDT (2 Form C) | 7.5 ms | 28 W 115 VA | 26.5 VDC | 125 °C | -65 ░C | 3.3 kOhms | MIL-R-39016/16 | Military | |
TE Connectivity Aerospace, Defense and Marine | 2.6 VDC | 1 A | 50 mA | Through Hole | 28 VDC 115 VAC | PC Pin | Sealed - Hermetically | 4 ms | Gold (Au) Silver Palladium (AgPd) | General Purpose | Diode | 0.23 VDC | Non Latching | DPDT (2 Form C) | 7.5 ms | 28 W 115 VA | 5 VDC | 125 °C | -65 ░C | 100 Ohms | MIL-R-39016/16 | Military |
TE Connectivity Aerospace, Defense and Marine | 14 VDC | 1 A | Through Hole | 28 VDC 115 VAC | PC Pin | Sealed - Hermetically | 4 ms | Gold (Au) Silver Palladium (AgPd) | General Purpose | Diode | 1.4 VDC | Non Latching | DPDT (2 Form C) | 7.5 ms | 28 W 115 VA | 26.5 VDC | 125 °C | -65 ░C | 3.3 kOhms | MIL-R-39016/16 | Military |
