R21366 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

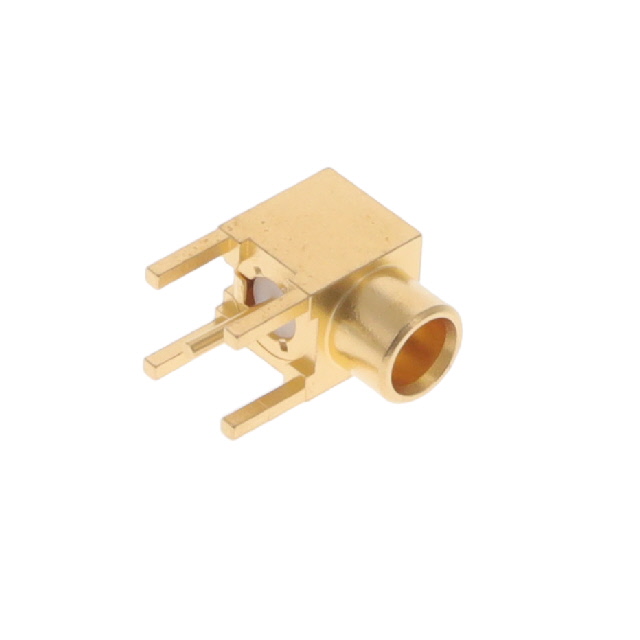

MCX / RIGHT ANGLE JACK RECEPTACL
| Part | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Dielectric Material | Body Finish | Voltage Rating | Body Material | Mounting Type | Housing Color | Fastening Type | Center Contact Material | Impedance | Connector Type | Shield Termination | Contact Termination | Frequency - Max [Max] | Connector Style | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | 155 C | -55 C | Gold | Polytetrafluoroethylene (PTFE) | Gold | 335 V | Brass | Right Angle Through Hole | Gold | Snap-On | Beryllium Copper | 75 Ohms | Female Socket Jack | Solder | Solder | 6000 MHz | MCX | 1 |
 Radiall USA, Inc. | 500 | 155 C | -55 C | Gold | Polytetrafluoroethylene (PTFE) | Gold | 335 V | Brass | Right Angle Surface Mount | Gold | Snap-On | Beryllium Copper | 75 Ohms | Receptacle Female Socket | Solder | Solder | 6000 MHz | MCX | 1 |
 Radiall USA, Inc. | 500 | 155 C | -55 C | Gold | Polytetrafluoroethylene (PTFE) | Gold | 335 V | Brass | Right Angle Surface Mount | Gold | Snap-On | Beryllium Copper | 75 Ohms | Receptacle Female Socket | Solder | Solder | 6000 MHz | MCX | 1 |
 Radiall USA, Inc. | 500 | 155 C | -55 C | Gold | Polytetrafluoroethylene (PTFE) | Gold | 335 V | Brass | Right Angle Through Hole | Gold | Snap-On | Beryllium Copper | 75 Ohms | Female Socket Jack | Solder | Solder | 6000 MHz | MCX | 1 |
