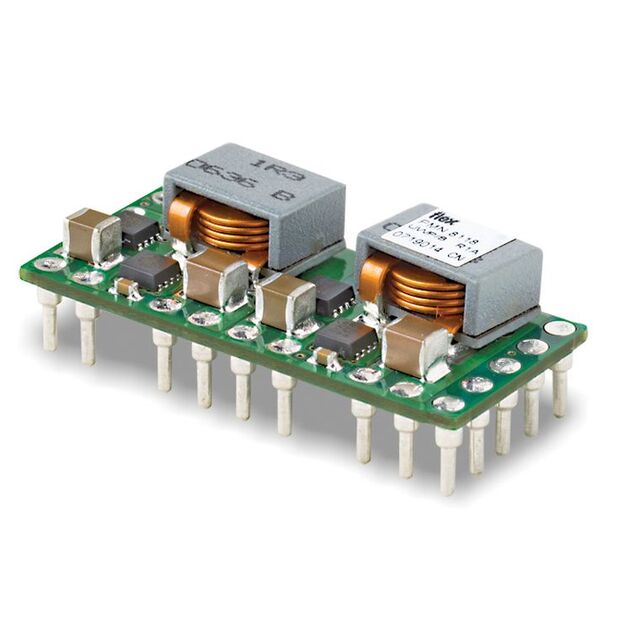

PMN511 Series
Manufacturer: Flex Power Modules
Beta
⌘K
NON-ISOLATED DC/DC CONVERTERS 0.7-3.6V 30A NON-ISO INPUT 4.5-5.5V 108W
| Part | Number of Outputs | Applications | Standard Number | Mounting Type | Efficiency | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Current - Output (Max) [Max] | Type | Features | Power (Watts) | Approval Agency | Control Features | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | 1 | ITE (Commercial) | 62368-1 | Surface Mount | 96.4 % | 14-SMD Module | 34.8 mm | 0.62 in | 1.37 in | 15.8 mm | 0.33 in | 8.5 mm | -40 °C | 85 °C | 3.6 V | 0.7 V | 30 A | Non-Isolated PoL Module | Adjustable Output Remote On/Off Remote Sense | 108 W | CB CSA IEC TUV UL | Active Low Enable | 4.5 V | 5.5 V |
Flex Power Modules | 1 | ITE (Commercial) | 62368-1 | Through Hole | 96.4 % | 14-DIP Module | 34.8 mm | 0.62 in | 1.37 in | 15.8 mm | 0.33 in | 8.5 mm | -40 °C | 85 °C | 3.6 V | 0.7 V | 30 A | Non-Isolated PoL Module | Adjustable Output Remote On/Off Remote Sense | 108 W | CB CSA IEC TUV UL | Active Low Enable | 4.5 V | 5.5 V |
