09301320 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, ALUMINUM BODY, 1 LEVER, 32B

Part	Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Style	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Housing Color	Thread Size	Connector Type	Ingress Protection	Housing Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features

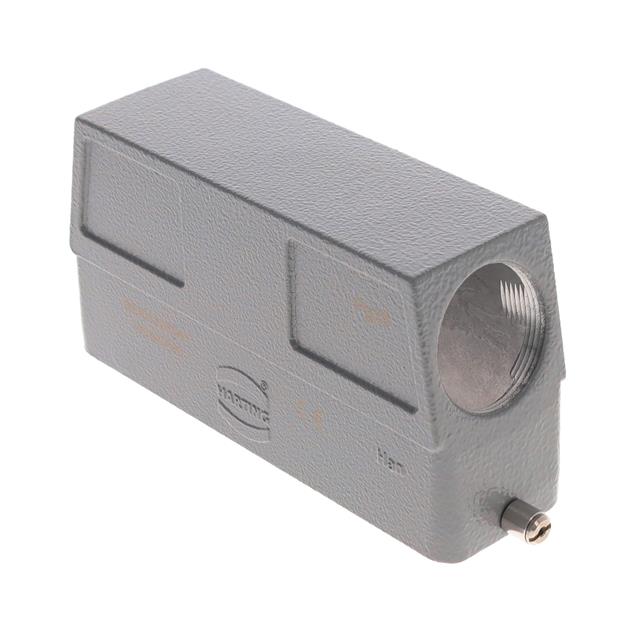

HARTING 09301320541	L32B	147.8 mm	76 mm	43 mm	2.992 in	5.819 "	1.693 "	Side Entry	Powder Coated	125 °C	-40 C	Locking Clip (1) on Base Bottom	Gray	PG29	Hood	IP65 - Dust Tight Water Resistant	Aluminum Die Cast
HARTING 9301320271	L32B	171 mm	80.8 mm	71.4 mm	3.181 in	6.732 in	2.811 "	Side Entry	Powder Coated	125 °C	-40 C	Locking Clip (2) on Base Bottom	Gray	PG29	Base - Box Mount	IP65 - Dust Tight Water Resistant	Aluminum Die Cast
HARTING 09301320521	L32B	147.8 mm	76 mm	43 mm	2.992 in	5.819 "	1.693 "	Side Entry	Powder Coated	125 °C	-40 C	Locking Clip (2) on Base Bottom	Gray	PG29	Hood	IP65 - Dust Tight Water Resistant	Aluminum Die Cast

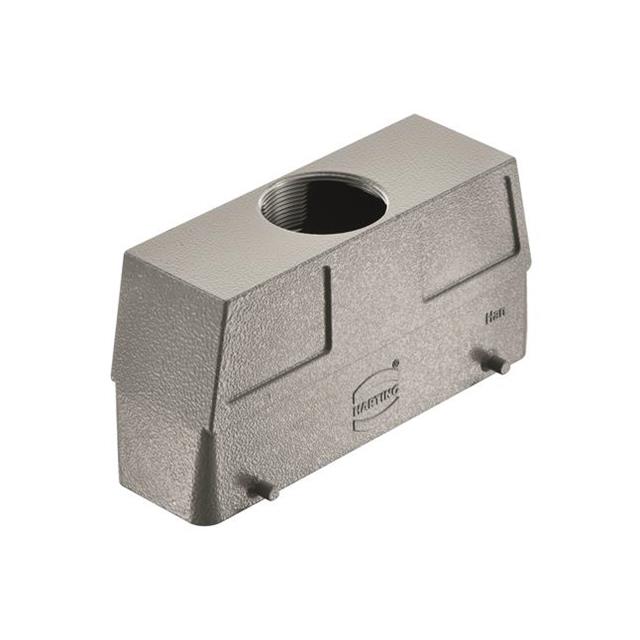

HARTING 09301320421	L32B	5.819 "	2.972 in	1.693 "				Top Entry	Powder Coated	125 °C	-40 C	Locking Clip (2) on Base Bottom	Gray	PG29	Hood	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	43 mm	147.8 mm	75.5 mm
HARTING 09301320441	L32B	5.819 "	2.972 in	1.693 "				Top Entry	Powder Coated	125 °C	-40 C	Locking Clip (1) on Base Bottom	Gray	PG29	Hood	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	43 mm	147.8 mm	75.5 mm
HARTING 09301320301	L32B	170 mm	27.6 mm	50.3 mm	1.087 in	6.693 "	1.98 "	Bottom Entry	Powder Coated	125 °C	-40 C	Locking Clip (2) on Base Bottom	Gray		Base - Panel Mount	IP65 - Dust Tight Water Resistant	Aluminum Die Cast

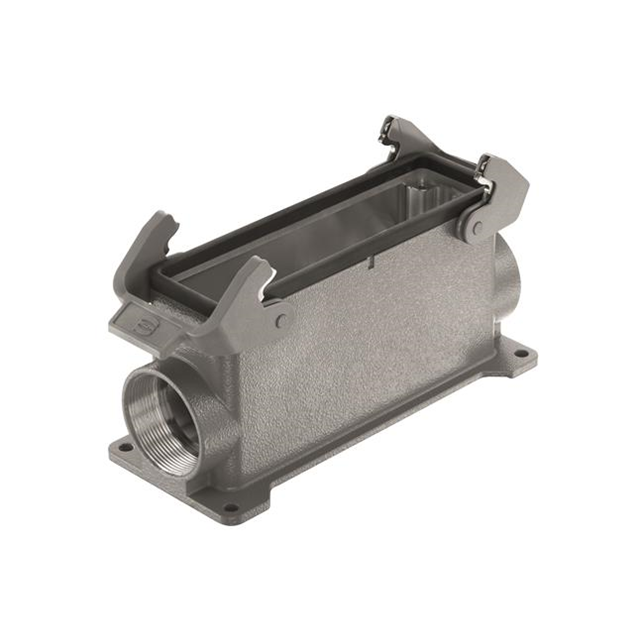

HARTING 9301320272	L32B	171 mm	80.8 mm	71.4 mm	3.181 in	6.732 in	2.811 "	Side Entry Dual	Powder Coated	125 °C	-40 C	Locking Clip (2) on Base Bottom	Gray	PG29	Base - Box Mount	IP65 - Dust Tight Water Resistant	Aluminum Die Cast				Feed Through
