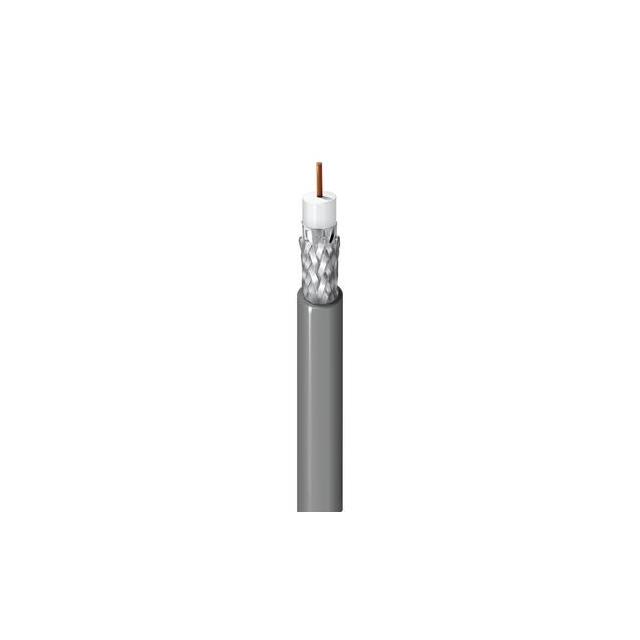

734A1P Series
Manufacturer: Belden Inc.
Beta
⌘K
#20 FFEP SH FLRST
| Part | Dielectric Material | Shield Material | Shield Coverage | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | VoP, Velocity of Propagation | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Cable Group | Length [x] | Length [x] | Wire Gauge | Jacket Color | Conductor Strand | Shield Type | Usage | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Fluorinated Ethylene-Propylene (FEP) | Aluminum Polyester Copper Tinned | 85 % 100 % | Copper Bare | 3.75 mm | 0.148 in | 80 | 75 ░C | 0 °C | 5.4 mm | 0.213 in | Coaxial - Plenum | RG-59 | 152.4 m | 500 ft | 20 AWG | Gray | Solid | Braid Foil | Datacom | Poly-Vinyl Chloride (PVC) |
