0.50 Connector System Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
0.5 6POS LOCK HOUSING
| Part | Accessory Type | For Use With/Related Products | Number of Positions | Connector Type | Operating Temperature (Max) | Operating Temperature (Min) | Pitch | Fastening Type | Row Spacing | Insulation Material | Contact Termination | Color | Number of Rows | Features | Mounting Type | Contact Type | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Contact Finish | Pin or Socket | Voltage Rating | Shrouding | Contact Shape | Contact Finish - Post | Number of Positions Loaded | Style | Contact Length - Mating | Termination | Contact Material | Insulation Height | Contact Finish - Mating | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Lock | 0.50 Series | 6 | |||||||||||||||||||||||||||||

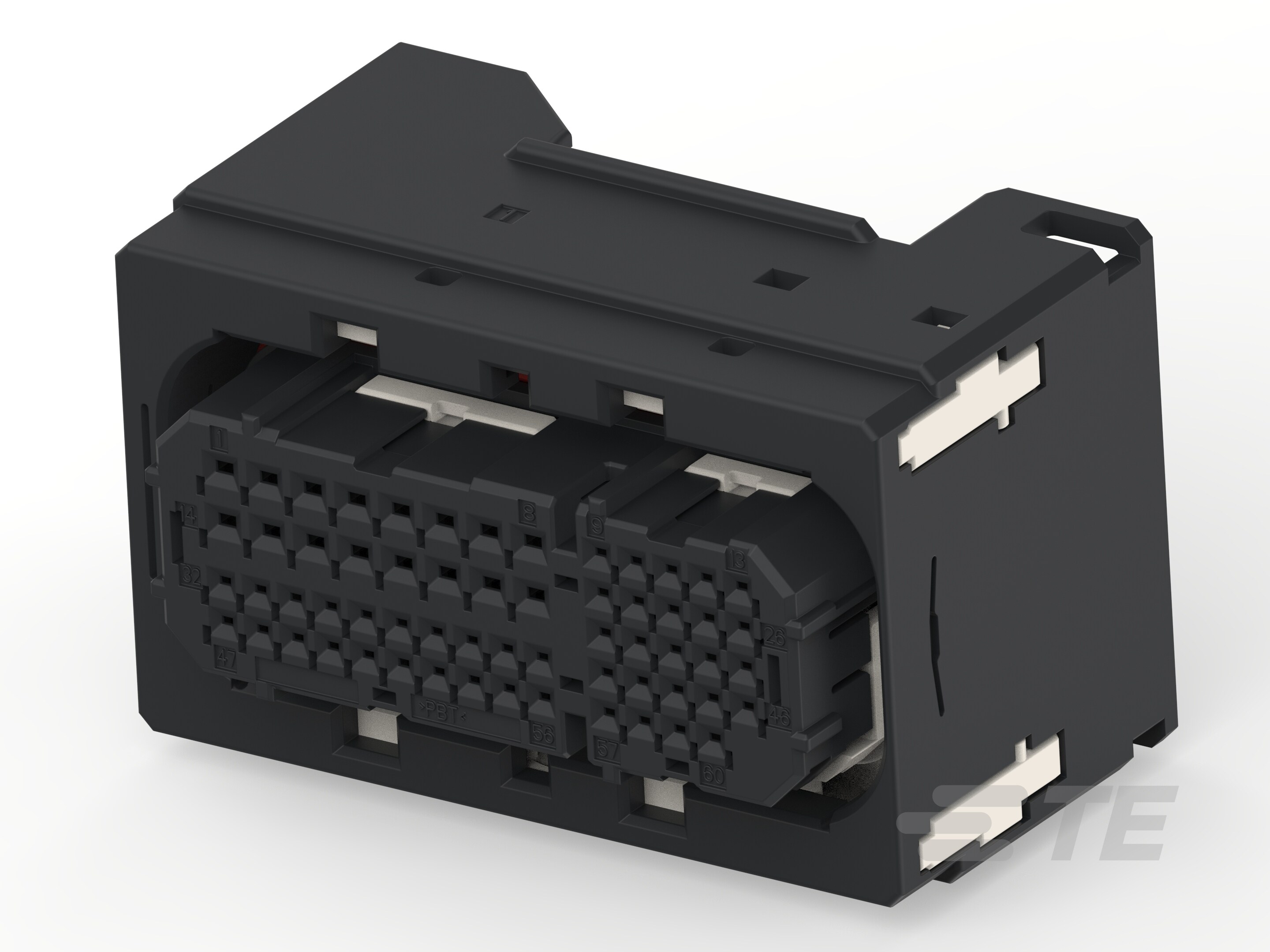

 TE Connectivity AMP Connectors | 60 | Receptacle | 100 °C | -40 °C | 0.094 in | Push-Pull | 0.098 in | Glass Filled Polybutylene Terephthalate (PBT) | Crimp | Black | 5 | Sealed | Free Hanging (In-Line) | Female Socket | ||||||||||||||||||
 TE Connectivity AMP Connectors | ||||||||||||||||||||||||||||||||

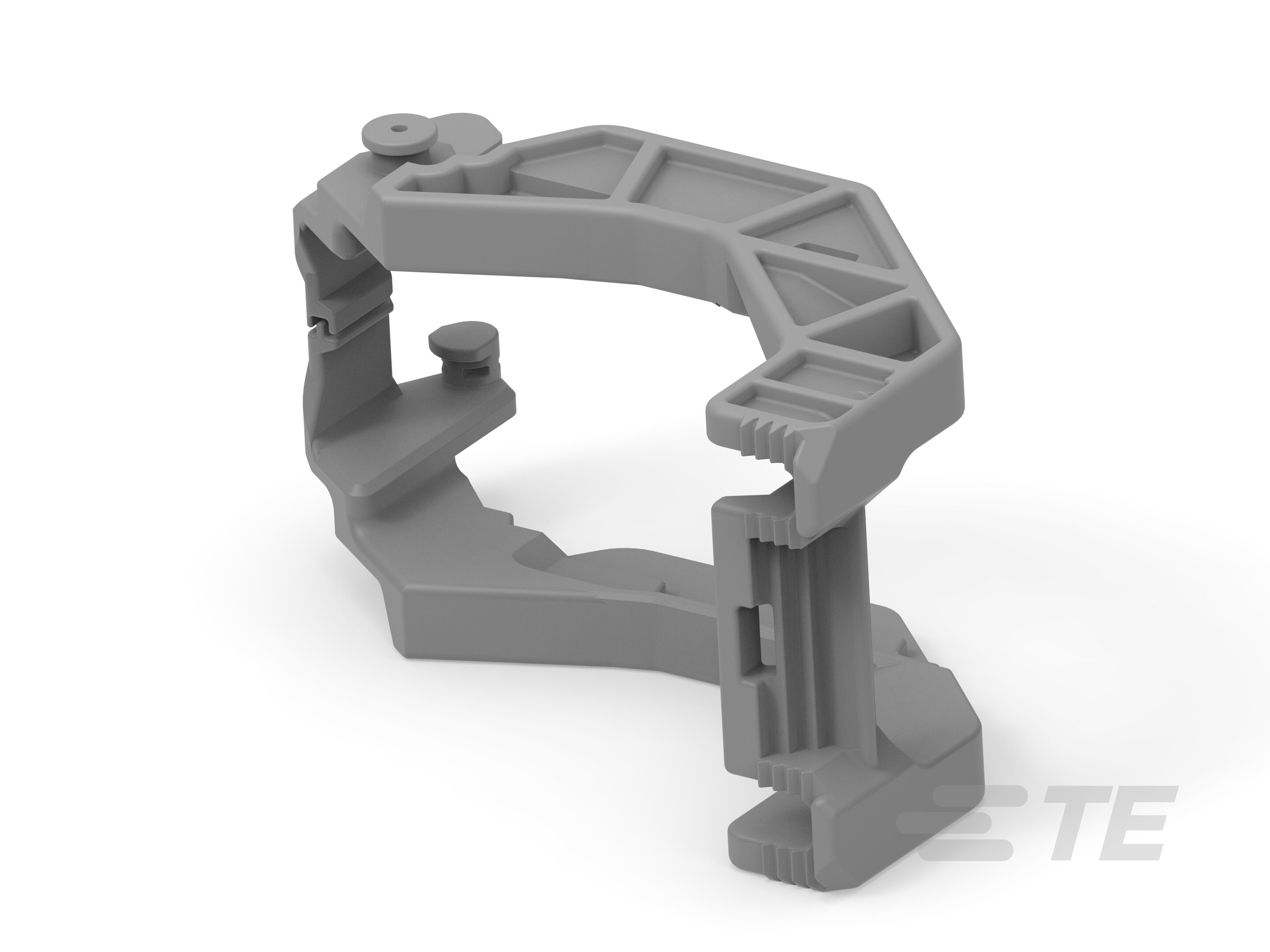

 TE Connectivity AMP Connectors | Cap (Cover) | 0.50 Series | 114 | |||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Cap (Cover) | 72 | Locking Lever Right Angle Wire Output | |||||||||||||||||||||||||||||

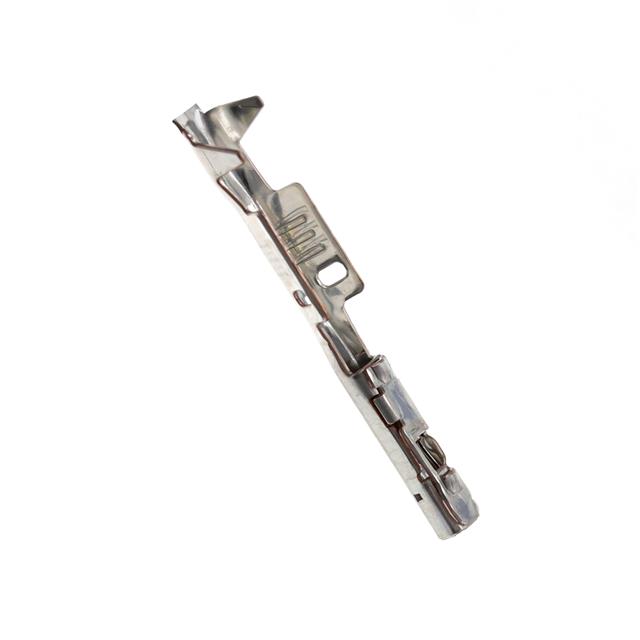

 TE Connectivity AMP Connectors | Crimp | 19.5 AWG | 22 AWG | Tin | Socket | |||||||||||||||||||||||||||

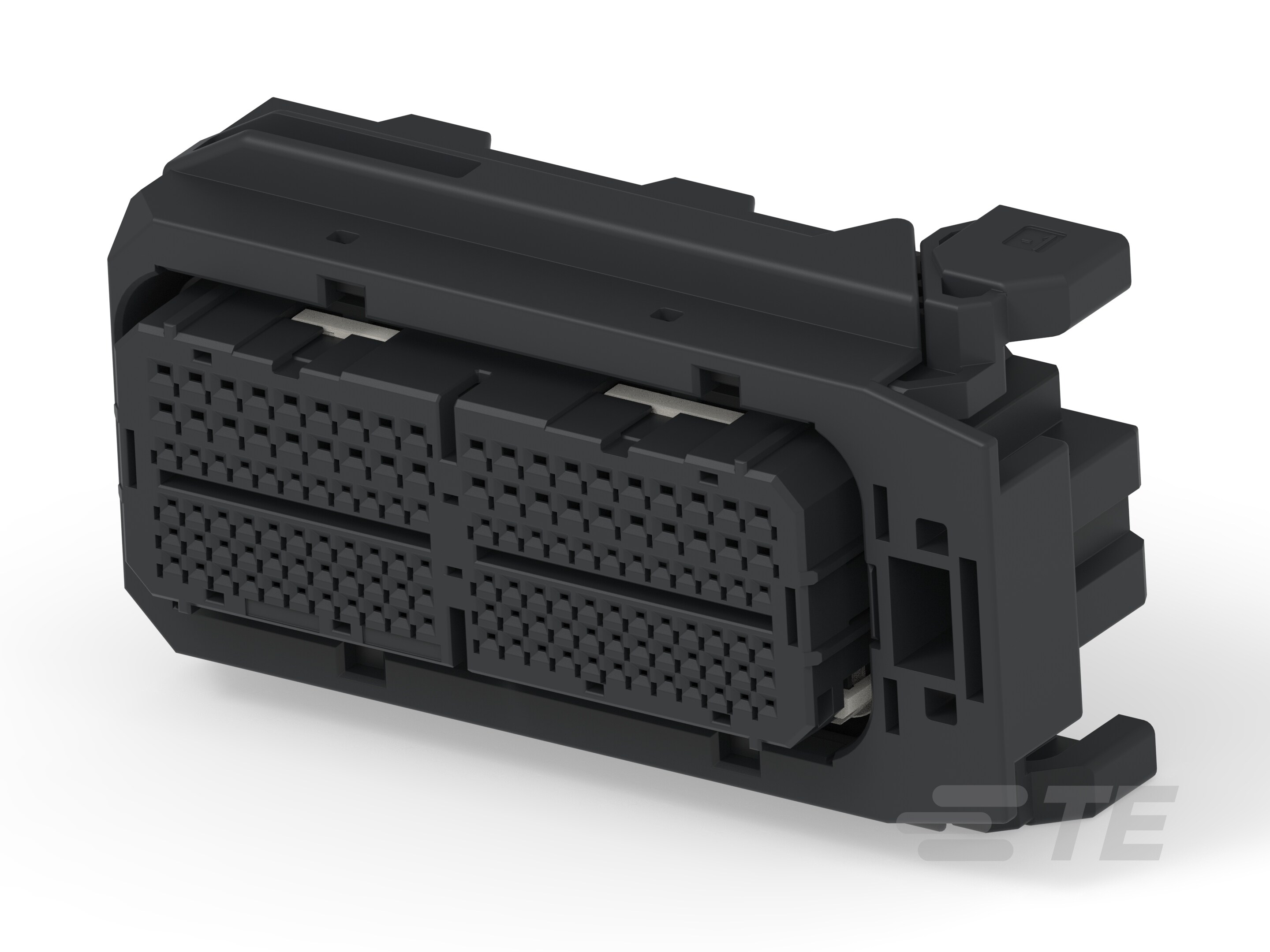

 TE Connectivity AMP Connectors | 130 | Plug | 120 °C | -40 °C | 0.134 in | Push-Pull | Glass Filled Polybutylene Terephthalate (PBT) | Crimp | Black | 6 | Free Hanging (In-Line) | Female Socket | ||||||||||||||||||||
 TE Connectivity AMP Connectors | 62 | Receptacle | 120 °C | -40 °C | 0.094 in | Push-Pull | 0.098 in | Glass Filled Polybutylene Terephthalate (PBT) | Crimp | Black | 7 | Sealed | Free Hanging (In-Line) | Female Socket | ||||||||||||||||||
 TE Connectivity AMP Connectors | 12 | Plug | 85 °C | -30 °C | Polybutylene Terephthalate (PBT) | Crimp | Natural | 1 | Board Lock | Stacking | Female Socket | |||||||||||||||||||||

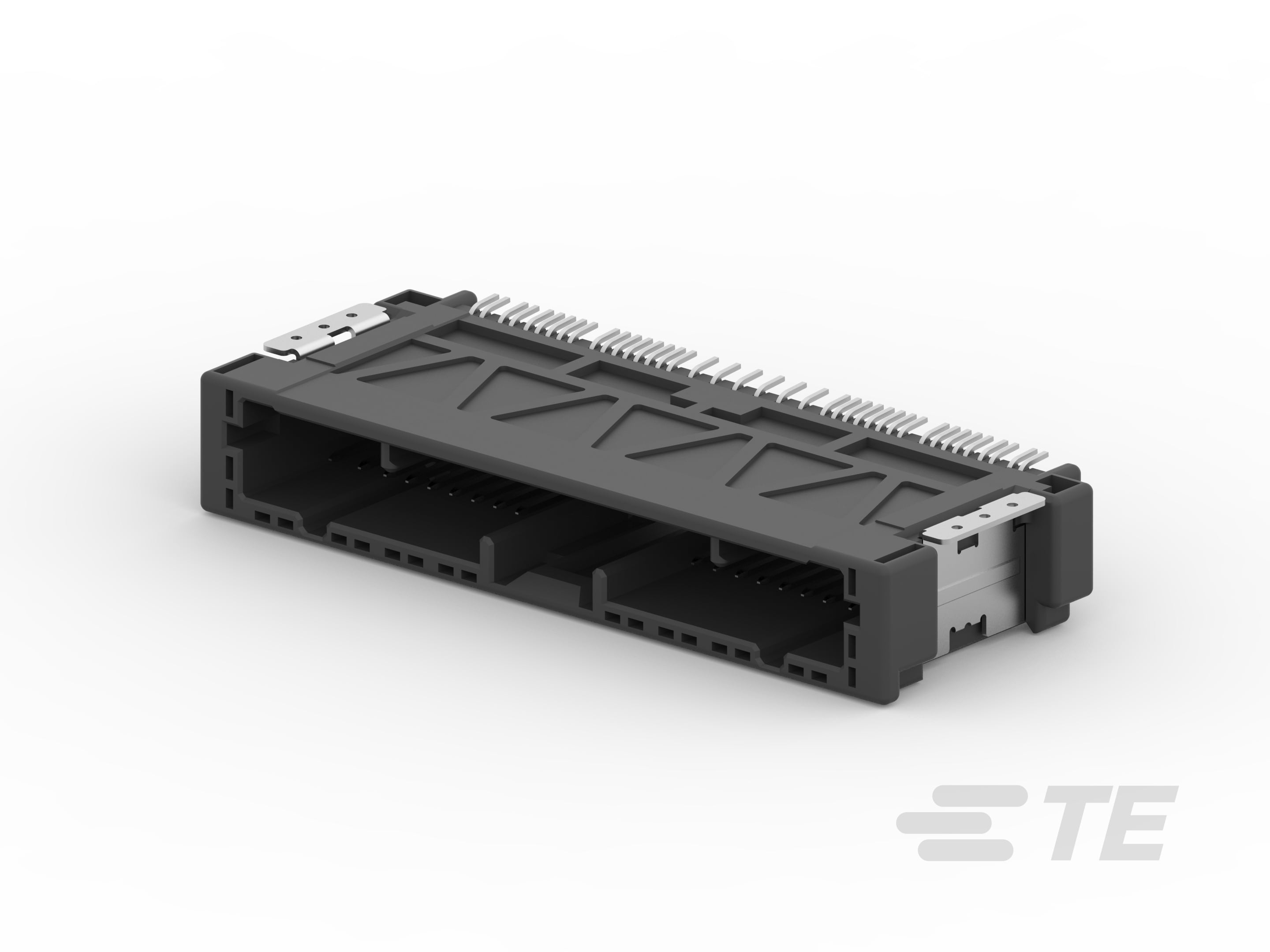

 TE Connectivity AMP Connectors | 40 | Header | 85 °C | -30 °C | Push-Pull | Glass Filled Liquid Crystal Polymer (LCP) | 2 | Solder Retention | Right Angle Surface Mount | Male Pin | 12 V | Shrouded - 4 Wall | Square | Tin | All | Board Cable/Wire | 0.24 in | Solder | Brass | 0.311 in | Tin | Black |
