337-032 Series
Manufacturer: EDAC Inc.
Beta
⌘K

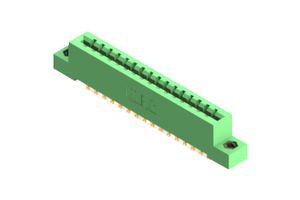

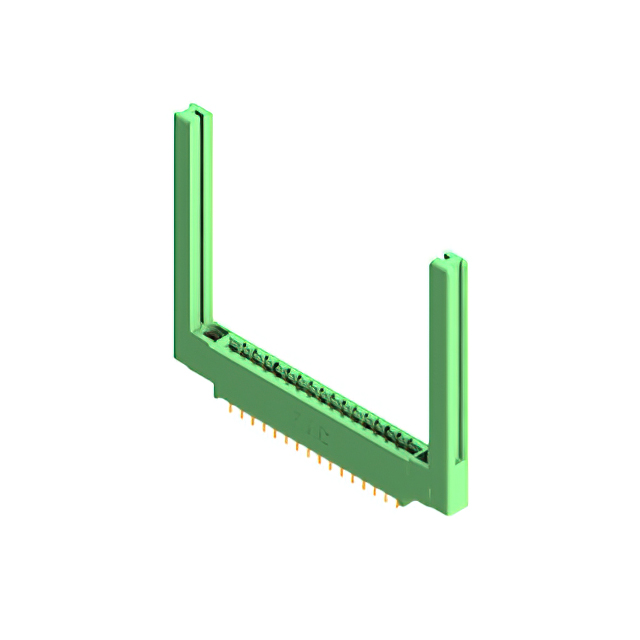

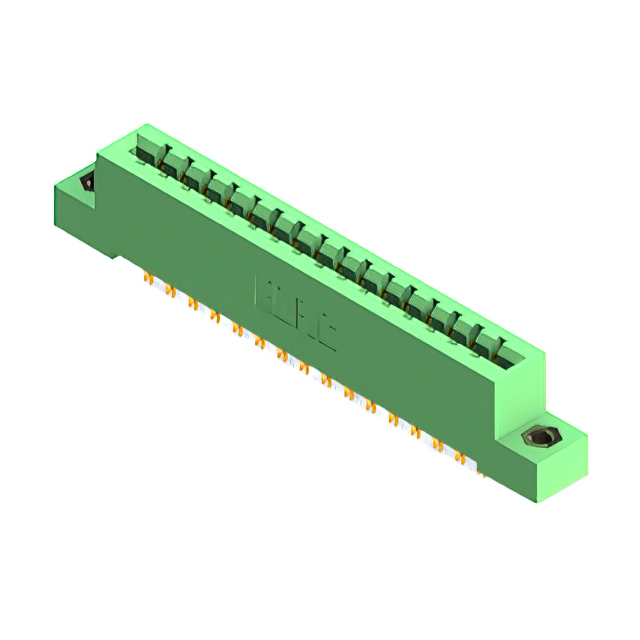

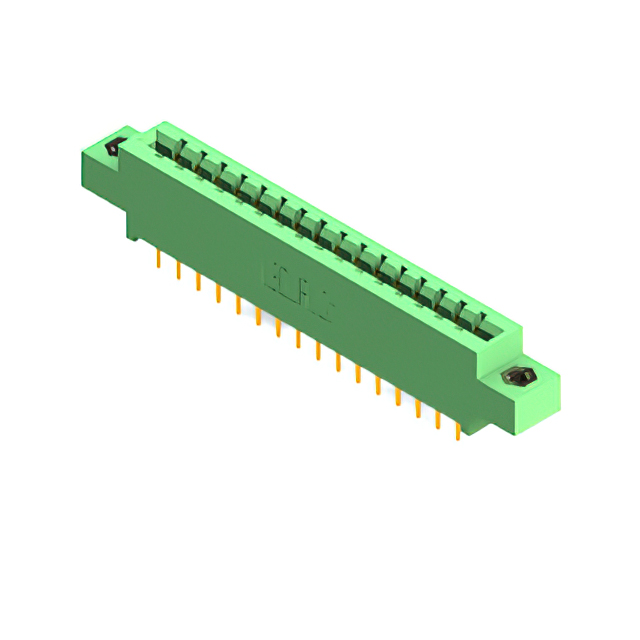

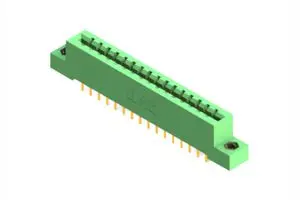

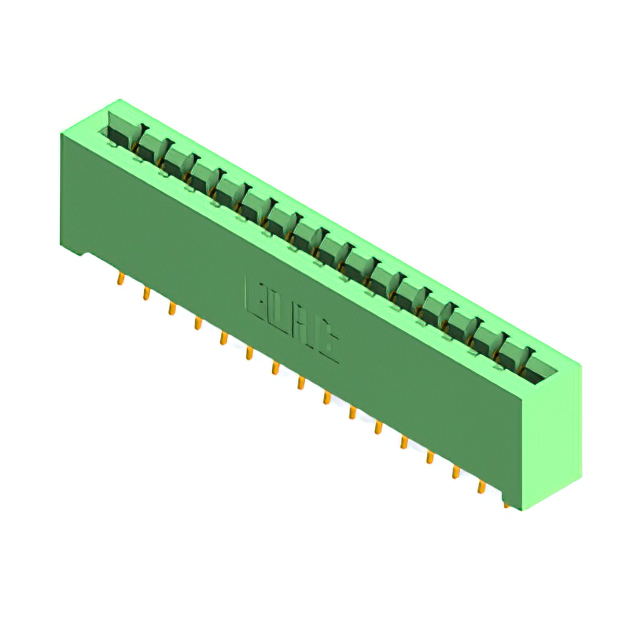

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 32 CONTACTS, PANEL MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows [custom] | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Color | Features | Contact Finish | Contact Type | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Read Out | Number of Rows [custom] | Pitch | Pitch | Termination | Number of Positions/Bay/Row | Card Type | Termination Rows | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Green | Card Extender | Gold | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | Dual | 2 | 3.96 mm | 0.156 in | Solder Eyelet(s) | 16 | Non Specified - Dual Edge | ||||
 EDAC Inc. | Polyester Thermoplastic | Female | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Green | Gold | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Through Hole | Single | 3.96 mm | 0.156 in | Wire Wrap | 32 | Non Specified - Single Edge | 1 | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | Female | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Green | Gold | Cantilever | Floating Bobbin Flush Mount | 0.25 Ám | 10 Áin | Right Angle Through Hole | Single | 3.96 mm | 0.156 in | Wire Wrap | 32 | Non Specified - Single Edge | 1 | 1 | 0.116 " | 2.95 mm | |||
 EDAC Inc. | Polyester Thermoplastic | Female | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Green | Gold | Cantilever | Floating Bobbin Top Mount Opening | 0.25 Ám | 10 Áin | Right Angle Through Hole | Single | 3.96 mm | 0.156 in | Wire Wrap | 32 | Non Specified - Single Edge | 1 | 1 | 0.116 " | 2.95 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Green | Gold | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Through Hole | Dual | 2 | 3.96 mm | 0.156 in | Wire Wrap | 16 | Non Specified - Dual Edge | |||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Green | Gold | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Through Hole | Dual | 2 | 3.96 mm | 0.156 in | Solder | 16 | Non Specified - Dual Edge | |||||
 EDAC Inc. | Polyester Thermoplastic | Female | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Green | Gold | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Through Hole | Single | 3.96 mm | 0.156 in | Solder | 32 | Non Specified - Single Edge | 1 | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Green | Gold | Cantilever | Flush Mount Top Opening Unthreaded | 0.25 Ám | 10 Áin | Through Hole | Dual | 2 | 3.96 mm | 0.156 in | Wire Wrap | 16 | Non Specified - Dual Edge | 0.156 " | 3.96 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Green | Card Guides | Gold | Cantilever | 4-40 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | Through Hole | Dual | 2 | 3.96 mm | 0.156 in | Solder | 16 | Non Specified - Dual Edge | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Green | Card Extender | Gold | Cantilever | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | Dual | 2 | 3.96 mm | 0.156 in | Solder | 16 | Non Specified - Dual Edge |
