2057419 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN HEADER IMPACT 60POS PCB
| Part | Number of Positions Loaded | Number of Positions | Contact Finish | Mounting Type | Pitch [x] | Pitch [x] | Termination | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Number of Columns | Number of Rows | Connector Style | Voltage Rating | Connector Type | Material Flammability Rating | Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

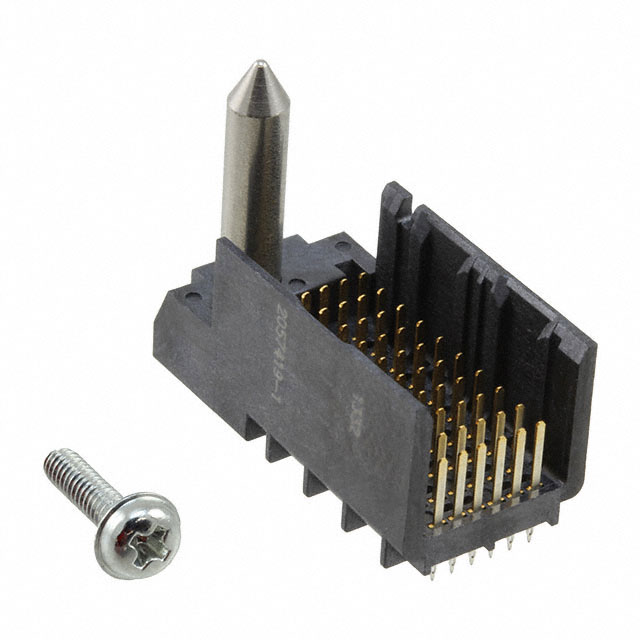

 TE Connectivity Raychem Cable Protection | All | 60 | Gold | Through Hole | 0.075 in | 1.91 mm | Press-Fit | 0.76 Ám | 30 Áin | 85 °C | -55 °C | 10 | 6 | Guide Left Impact | 30 VAC | Header Male Pins | UL94 V-0 | Black | |
 TE Connectivity Raychem Cable Protection | All | 60 | Gold | Board Edge Right Angle Through Hole | 0.075 in | 1.91 mm | Press-Fit | 0.76 Ám | 30 Áin | 85 °C | -55 °C | 10 | 6 | 30 VDC | Receptacle Female Sockets | UL94 V-0 | Black | Board Guide |
