Mini-Universal MATE-N-LOK 2 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

MINI UMNL2 PIN 26-22AWG LP LF

Part	Contact Finish	Pin or Socket	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Note	Number of Rows [custom]	Pitch	Pitch	Row Spacing	Row Spacing	Color	Number of Positions	Connector Type	Insulation Material	Contact Type	Mounting Type	Fastening Type

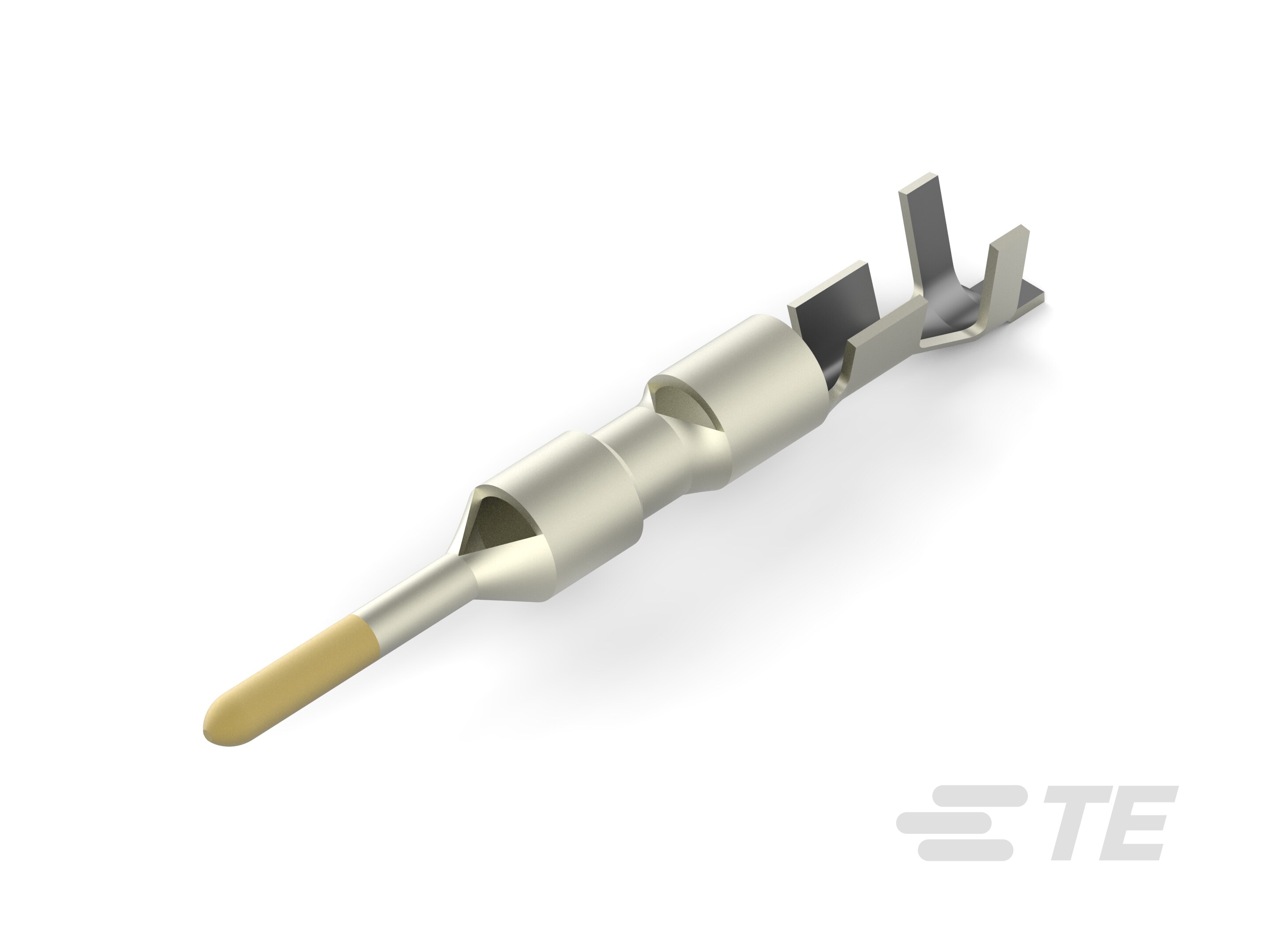

TE Connectivity AMP Connectors 1-794226-0	Gold	Pin	Crimp	30 Áin	0.76 Ám	26 AWG	22 AWG

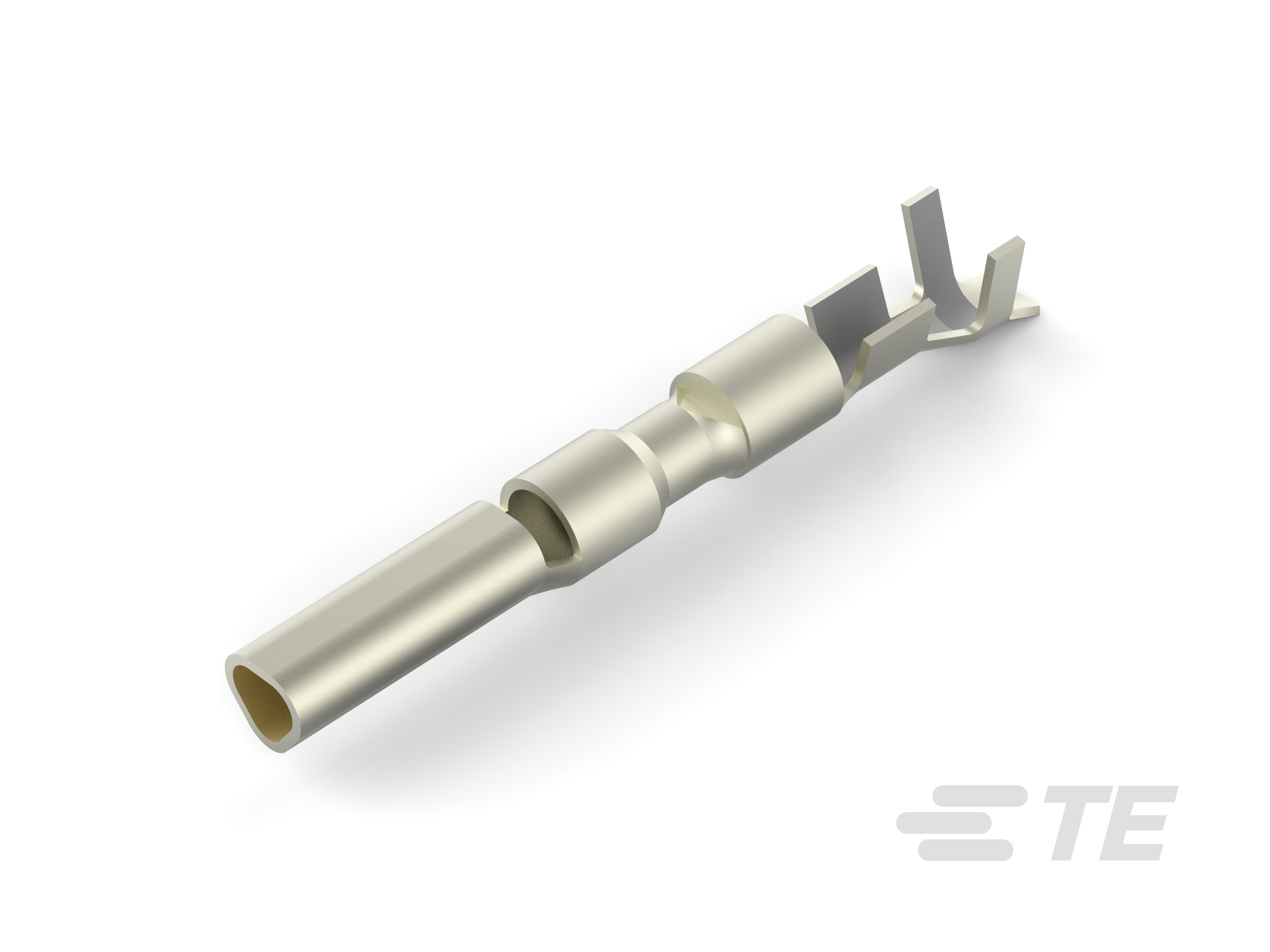

TE Connectivity AMP Connectors 1-794219-0	Gold	Socket	Crimp	30 Áin	0.76 Ám	26 AWG	22 AWG

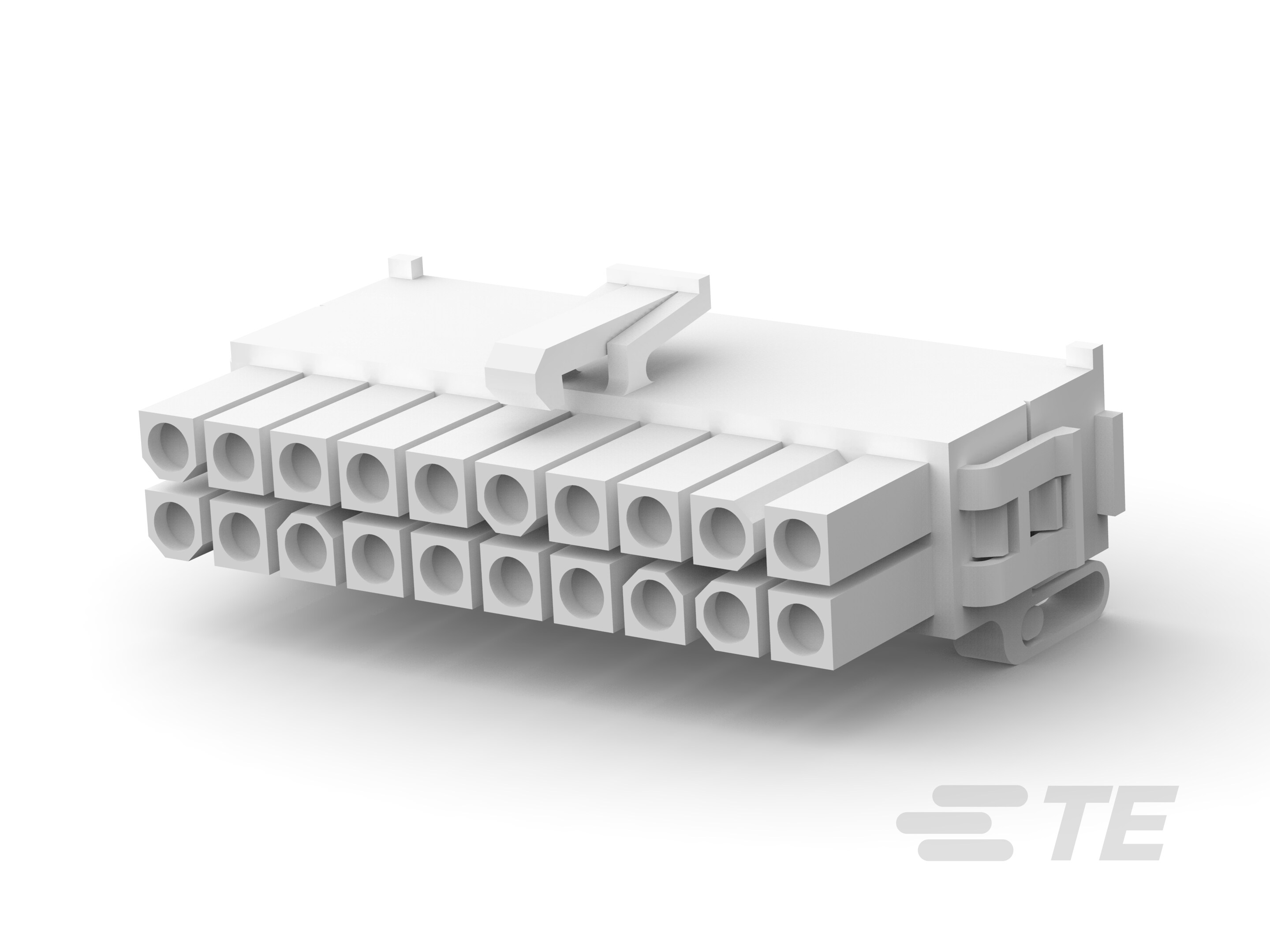

TE Connectivity AMP Connectors 794210-1			Crimp					Contacts Not Included	2	4.14 mm	0.163 in	0.163 "	4.14 mm	Natural	20	Plug	Nylon Polyamide (PA)	Male or Female	Free Hanging (In-Line)	Latch Lock
TE Connectivity AMP Connectors 794207-1			Crimp					Contacts Not Included	2	4.14 mm	0.163 in	0.163 "	4.14 mm	Natural	16	Receptacle	Nylon Polyamide (PA)	Male or Female	Free Hanging (In-Line)	Locking Ramp
TE Connectivity AMP Connectors 794218-1	Tin	Pin	Crimp
TE Connectivity AMP Connectors 794205-1			Crimp					Contacts Not Included	3	4.14 mm	0.163 in	0.163 "	4.14 mm	Natural	15	Receptacle	Nylon Polyamide (PA)	Male or Female	Free Hanging (In-Line)	Locking Ramp
TE Connectivity AMP Connectors 1-794220-0	Gold	Pin	Crimp	30 Áin	0.76 Ám	22 AWG	17.5 AWG
TE Connectivity AMP Connectors 794213-1			Crimp					Contacts Not Included	2	4.14 mm	0.163 in	0.163 "	4.14 mm	Natural	22	Receptacle	Nylon Polyamide (PA)	Male or Female	Free Hanging (In-Line)	Locking Ramp
TE Connectivity AMP Connectors 794193-1			Crimp						2	4.14 mm	0.163 in	0.163 "	4.14 mm	Natural	8	Receptacle	Nylon Polyamide (PA)	Male or Female	Free Hanging (In-Line)	Locking Ramp
TE Connectivity AMP Connectors 794197-1			Crimp						2	4.14 mm	0.163 in	0.163 "	4.14 mm	Natural	10	Receptacle	Nylon Polyamide (PA)	Male or Female	Free Hanging (In-Line)	Locking Ramp
