MTJ-66 Series
Manufacturer: Adam Tech
Beta
⌘K

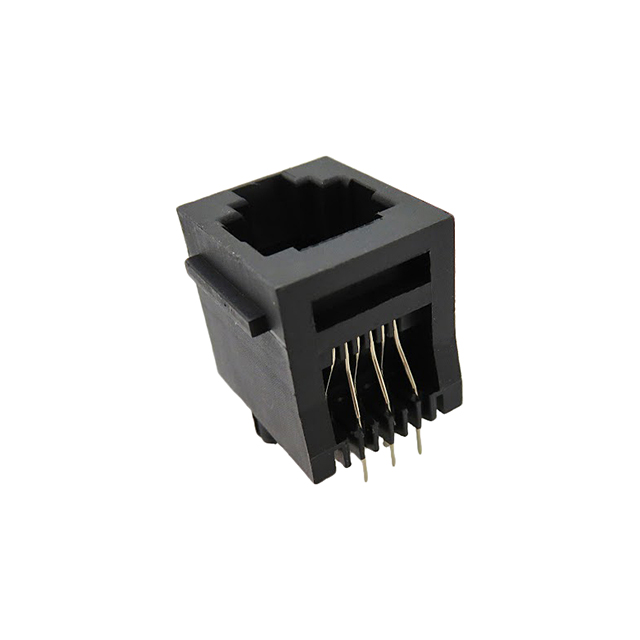

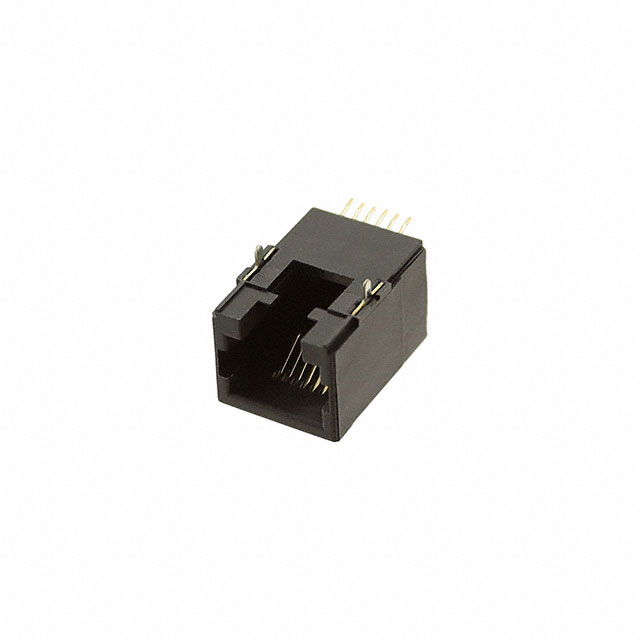

CONN MOD JACK 6P6C R/A UNSHIELD
| Part | Housing Material | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Contact Finish | Tab Direction | LED Color | Features | Mounting Type | Orientation | Number of Rows | Connector Type | Number of Positions/Contacts [y] | Number of Positions/Contacts [x] | Contact Material | Shielding | Termination | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Polybutylene Terephthalate (PBT) | Flash | 125 °C | -40 C | 1 | Gold | Up | Does Not Contain LED | Board Lock | Through Hole | 90 ° | 1 | Jack | 6 | 6 | Phosphor Bronze | Unshielded | Solder | |
 Adam Tech | Polybutylene Terephthalate (PBT) | Flash | 85 °C | -40 C | 1 | Gold | Down | Does Not Contain LED | Board Lock | Through Hole | 90 ° | 1 | Jack | 6 | 6 | Phosphor Bronze | Unshielded | Solder | |
 Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | Flash | 70 °C | 0 °C | 1 | Gold | Up | Does Not Contain LED | Board Lock | Through Hole | 90 ° | 1 | Jack | 6 | 6 | Phosphor Bronze | Unshielded | Solder | |
 Adam Tech | Thermoplastic | Flash | 125 °C | -40 C | 1 | Gold | Down | Does Not Contain LED | Solder Retention | Surface Mount | 90 ° | 1 | Jack | 6 | 6 | Phosphor Bronze | Unshielded | Solder | |
 Adam Tech | Polybutylene Terephthalate (PBT) | Flash | 85 °C | -40 C | 1 | Gold | Down | Does Not Contain LED | Board Lock | Through Hole | 90 ° | 1 | Jack | 6 | 6 | Phosphor Bronze | Unshielded | Solder | |
 Adam Tech | Polybutylene Terephthalate (PBT) | Flash | 85 °C | -40 C | 1 | Gold | User Selectable | Does Not Contain LED | Board Lock | Through Hole | 1 | Jack | 6 | 6 | Phosphor Bronze | Unshielded | Solder | Vertical | |
 Adam Tech | Glass Filled Nylon Polyamide (PA) | Flash | 125 °C | -40 C | 1 | Gold | Down | Does Not Contain LED | Solder Retention | Surface Mount | 90 ° | 1 | Jack | 6 | 6 | Phosphor Bronze | Unshielded | Solder | |
 Adam Tech | Polybutylene Terephthalate (PBT) | Flash | 85 °C | -40 C | 1 | Gold | Down | Does Not Contain LED | Board Lock | Through Hole | 90 ° | 1 | Jack | 6 | 6 | Phosphor Bronze | Unshielded | Solder | |
 Adam Tech | Thermoplastic | Flash | 70 °C | -40 C | 1 | Gold | Down | Does Not Contain LED | Board Lock | Surface Mount | 90 ° | 1 | Jack | 6 | 6 | Phosphor Bronze | Unshielded | Solder | |
 Adam Tech | Polybutylene Terephthalate (PBT) | Flash | 85 °C | -40 C | 1 | Gold | Down | Does Not Contain LED | Board Lock | Through Hole | 90 ° | 1 | Jack | 6 | 6 | Phosphor Bronze | Unshielded | Solder |
