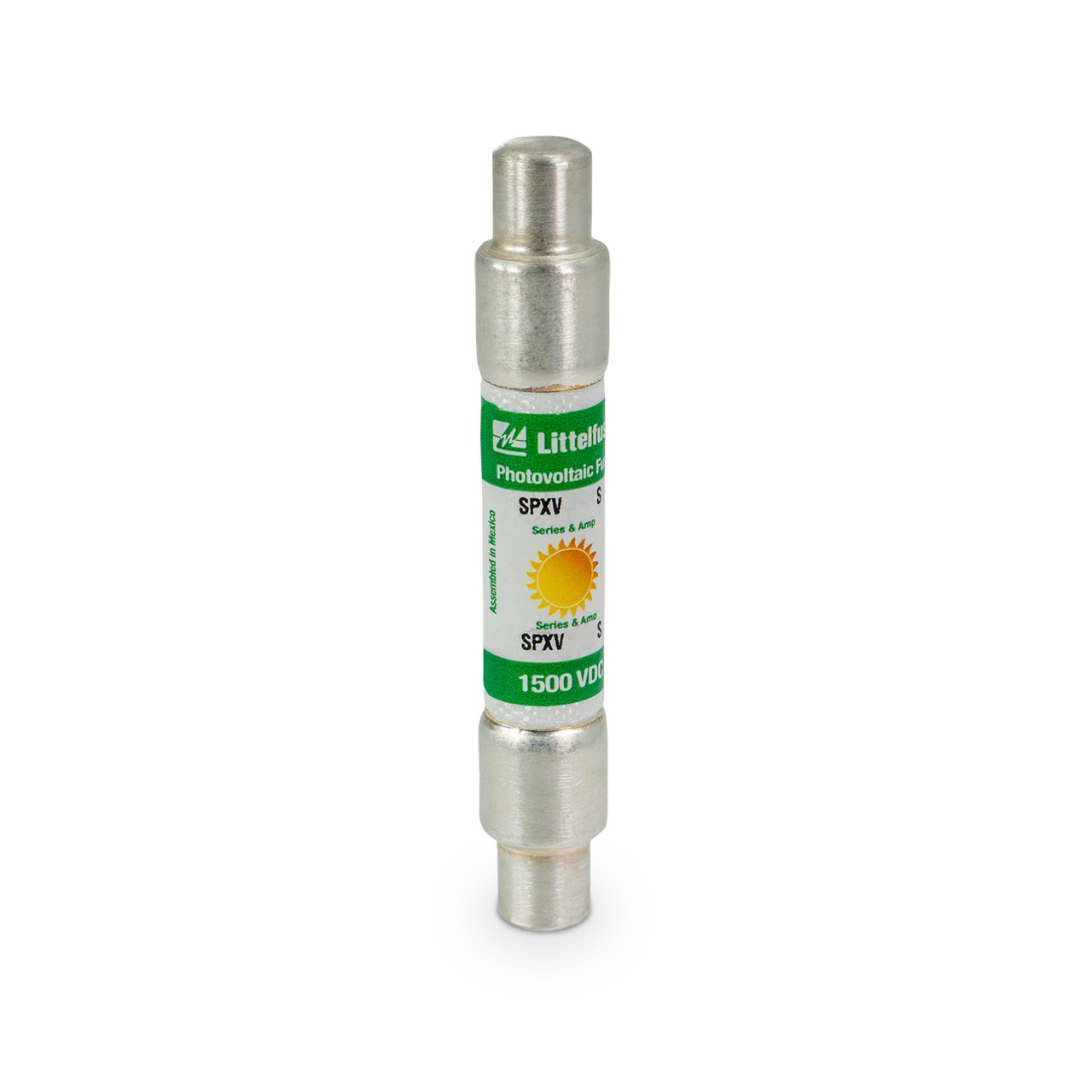

SPXVS025 Series
1500VDC 25A PHOTOVOLTAIC FUSE SLVR PLTD
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
1500VDC 25A PHOTOVOLTAIC FUSE SLVR PLTD
Beta
⌘K
1500VDC 25A PHOTOVOLTAIC FUSE SLVR PLTD
1500VDC 25A PHOTOVOLTAIC FUSE SLVR PLTD
1500VDC 25A PHOTOVOLTAIC FUSE SLVR PLTD
| Part | Response Time | Voltage Rating - DC | Current Rating (Amps) | Fuse Type | Breaking Capacity @ Rated Voltage | DC Cold Resistance | Melting I²t | Mounting Type | Applications | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Approval Agency | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Fast Blow | 1.5 kVDC | 25 A | Cartridge | 30 kA | 0.0064 Ohms | 2671 | Requires Holder | Solar (Photovoltaic) | 3.333 in | 84.65 mm | 13.72 mm | 0.54 " | CE gPV UL | Cartridge Non-Standard |
