853-002 Series
Manufacturer: NorComp Inc.
Beta
⌘K

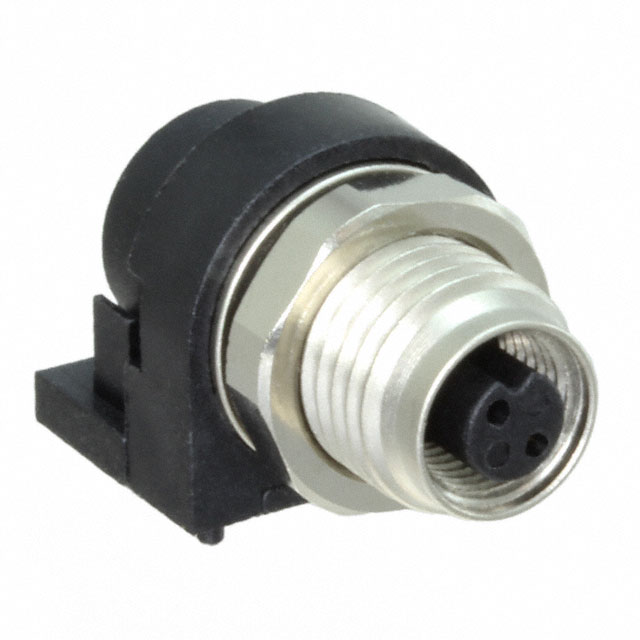

CONN PLUG FMALE 2POS GOLD SOLDER
| Part | Connector Type | Applications | Primary Material | Termination | Fastening Type | Voltage Rating | Contact Material | Shell Material | Features | Material Flammability Rating | Shell Finish | Shell Size - Insert | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insert Material | Contact Finish - Mating | Ingress Protection | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Color | Orientation | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Plug Female Sockets | Industrial Medical | Metal | Solder | Threaded | 60 VDC | Brass | Brass | Board Guide | UL94 V-0 | Nickel | M5-2 | 2 | 0.25 µm | 10 µin | Polybutylene Terephthalate (PBT) | Gold | IP67 - Dust Tight Waterproof | Shielded | 85 °C | -40 C | Panel Mount Right Angle Through Hole | Black Silver | Keyed | |
 NorComp Inc. | Receptacle Male Pins | Industrial Medical | Metal | Solder | Threaded | 60 VDC | Brass | Brass | Board Guide | UL94 V-0 | Nickel | M5-2 | 2 | Polybutylene Terephthalate (PBT) | Gold | IP67 - Dust Tight Waterproof | Shielded | 85 °C | -40 C | Panel Mount Right Angle Through Hole | Black Silver | Keyed | Flash | ||
 NorComp Inc. | Plug Female Sockets | Industrial Medical | Metal | Solder | Threaded | 60 VDC | Brass | Brass | Board Guide | UL94 V-0 | Nickel | M5-2 | 2 | Polybutylene Terephthalate (PBT) | Gold | IP67 - Dust Tight Waterproof | Shielded | 85 °C | -40 C | Panel Mount Right Angle Through Hole | Black Silver | Keyed | Flash |
