CLB1108 Series

Catalog

FIXED IND 200NH 0.00028OHM SMD

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Material - Core	DC Resistance (DCR)	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance
Eaton - Electronics Division CLB1108-5-50TR-R	8 mm	0.315 in	Nonstandard	Ferrite	0.28 mOhm	5 Phase	125 °C	-40 C	Surface Mount	1 MHz	11 mm	0.433 in	45 mm	1.772 in	20 %
Eaton - Electronics Division CLB1108-2-50TR-R	8 mm	0.315 in	Nonstandard	Ferrite	0.28 mOhm	2 Phase	125 °C	-40 C	Surface Mount	1 MHz	11 mm	0.433 in	18 mm	0.709 in	20 %

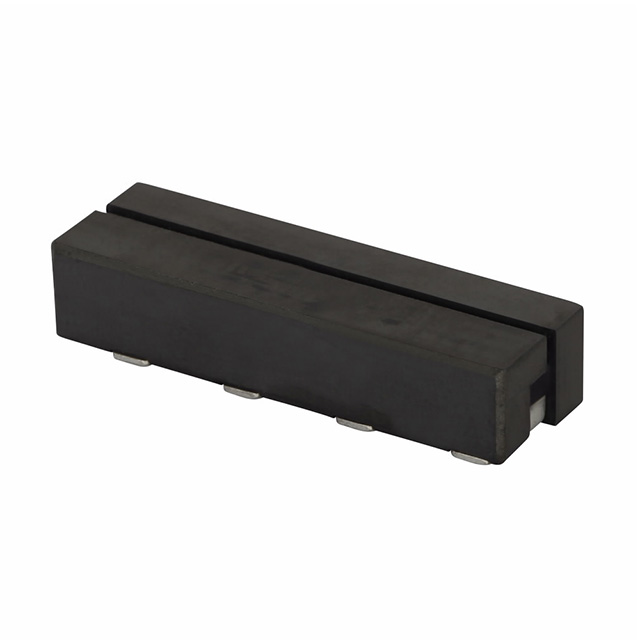

Eaton - Electronics Division CLB1108-4-50TR-R	8 mm	0.315 in	Nonstandard	Ferrite	0.28 mOhm	4 Phase	125 °C	-40 C	Surface Mount	1 MHz	11 mm	0.433 in	36 mm	1.417 in	20 %
