LDBCC Series
Manufacturer: KEMET
Beta
⌘K

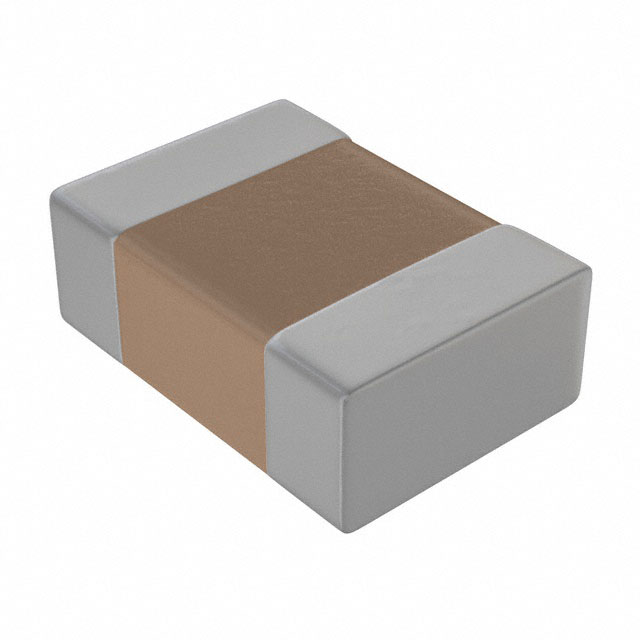

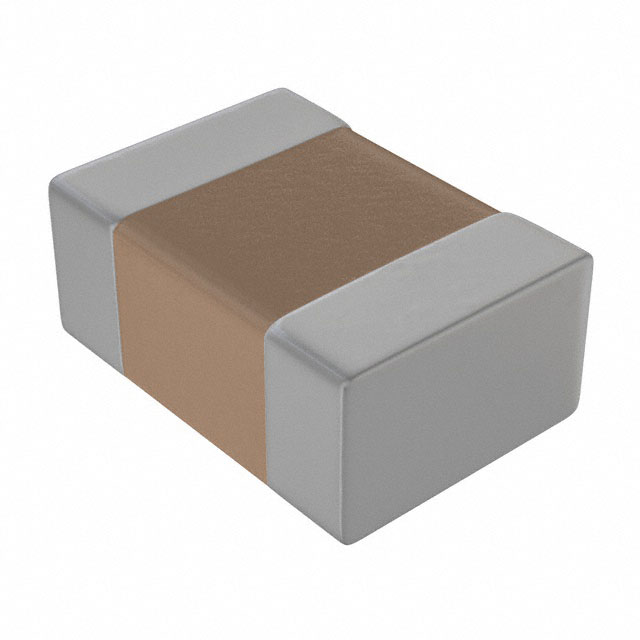

CAP FILM 0.056UF 2% 50VDC 1812
| Part | Mounting Type | Termination | Dielectric Material | Applications | Package / Case | Capacitance | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage Rating - DC | Tolerance | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Surface Mount | Solder Pads | Polyphenylene Sulfide (PPS) Metallized - Stacked | General Purpose | 1812 (4532 Metric) | 56000 pF | -55 C | 125 °C | 0.067 in | 1.7 mm | 0.13 in | 0.185 in | 4.7 mm | 3.3 mm | 50 VDC | 2 % | |

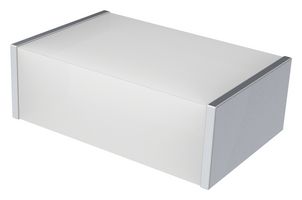

 KEMET | Surface Mount | Solder Pads | Polyphenylene Sulfide (PPS) Metallized - Stacked | General Purpose | 1812 (4532 Metric) | 100000 pF | -55 C | 125 °C | 0.079 in | 0.13 in | 0.185 in | 4.7 mm | 3.3 mm | 50 VDC | 2 % | 2 mm |
