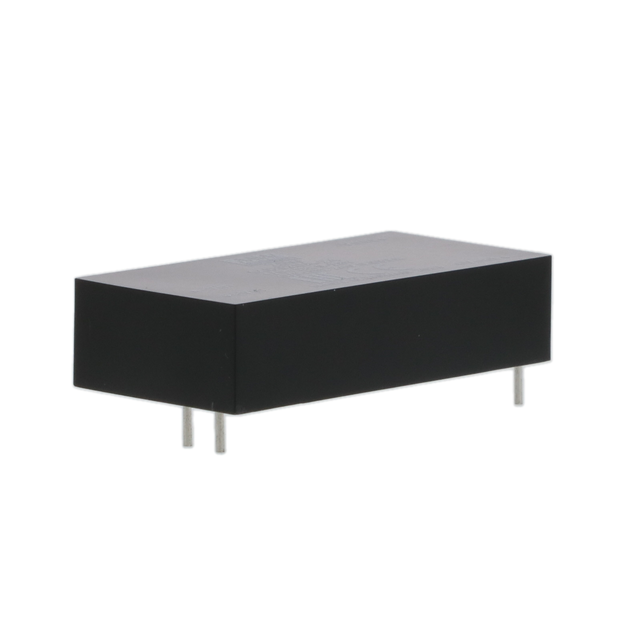

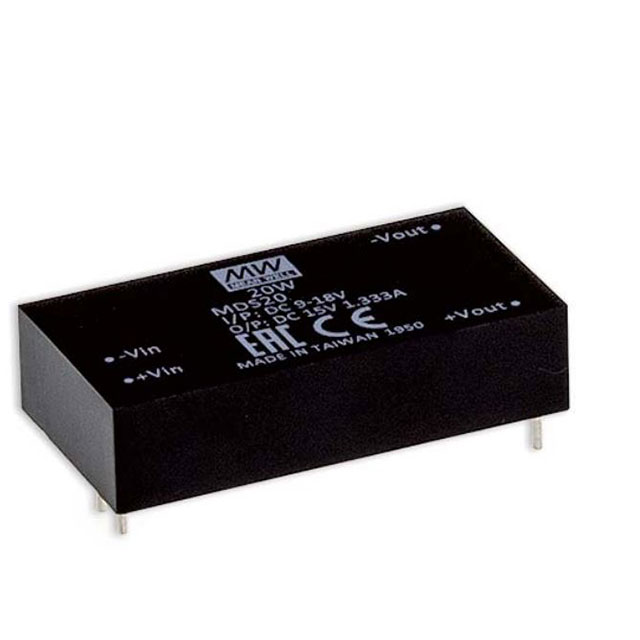

MDS20 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 15V 20W
| Part | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Power (Watts) | Mounting Type | Voltage - Output 1 | Efficiency | Number of Outputs | Voltage - Input (Max) [Max] | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Isolation | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 5-DIP Module | 90 °C | -40 °C | Isolated Module | 18 V | 1.333 A | 20 W | Through Hole | 15 V | 88 % | 1 | 36 V | Medical | 25.4 mm | 0.47 " | 1 " | 50.8 mm | 2 in | 12 mm | 4000 V | CE EAC |
 MEAN WELL USA Inc. | 5-DIP Module | 90 °C | -40 °C | Isolated Module | 9 V | 833 mA | 20 W | Through Hole | 24 V | 88 % | 1 | 18 V | Medical | 25.4 mm | 0.47 " | 1 " | 50.8 mm | 2 in | 12 mm | 4000 V | CE EAC |
