1734829 Series

Catalog

CONN HEADER R/A 15POS 1.25MM

Part	Insulation Color	Insulation Height	Insulation Height	Connector Type	Applications	Number of Positions Loaded	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Insulation Material	Number of Positions	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Type	Voltage Rating	Termination	Mounting Type	Material Flammability Rating	Contact Shape	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Style

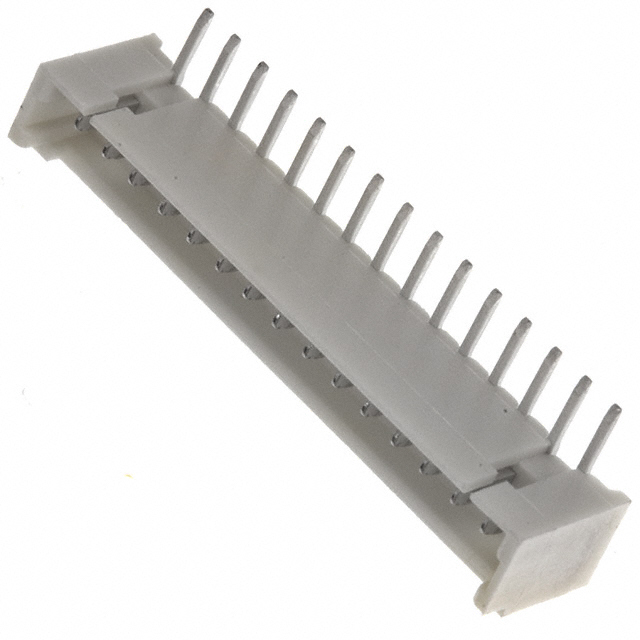

TE Connectivity Raychem Cable Protection 1-1734829-5	Natural	3.2 mm	0.126 in	Header	Automotive General Purpose Industrial Medical	All	1	2.54 çm	100 çin	Shrouded - 4 Wall	Polyamide (PA9T) Nylon 9T Glass Filled	15	0.091 in	2.3 mm	1.25 mm	0.049 in	Tin	Male Pin	125 VDC	Solder	Through Hole Right Angle	UL94 V-0	Square	Phosphor Bronze	-25 °C	85 °C	Board to Cable/Wire
TE Connectivity Raychem Cable Protection 1734829-6	Natural	3.2 mm	0.126 in	Header	Automotive General Purpose Industrial Medical	All	1	2.54 çm	100 çin	Shrouded - 4 Wall	Polyamide (PA9T) Nylon 9T Glass Filled	6	0.091 in	2.3 mm	1.25 mm	0.049 in	Tin	Male Pin	125 VDC	Solder	Through Hole Right Angle	UL94 V-0	Square	Phosphor Bronze	-25 °C	85 °C	Board to Cable/Wire
